Samson UB1 User Manual

6
Getting Started with MAC OS X
The following example is for setting
up the UB1 in MAC OS X .
1. Plug in microphone. The LED will
light to indicate it is receiving USB
power. The MAC will recognize the
USB audio device and automatically
install a universal driver.

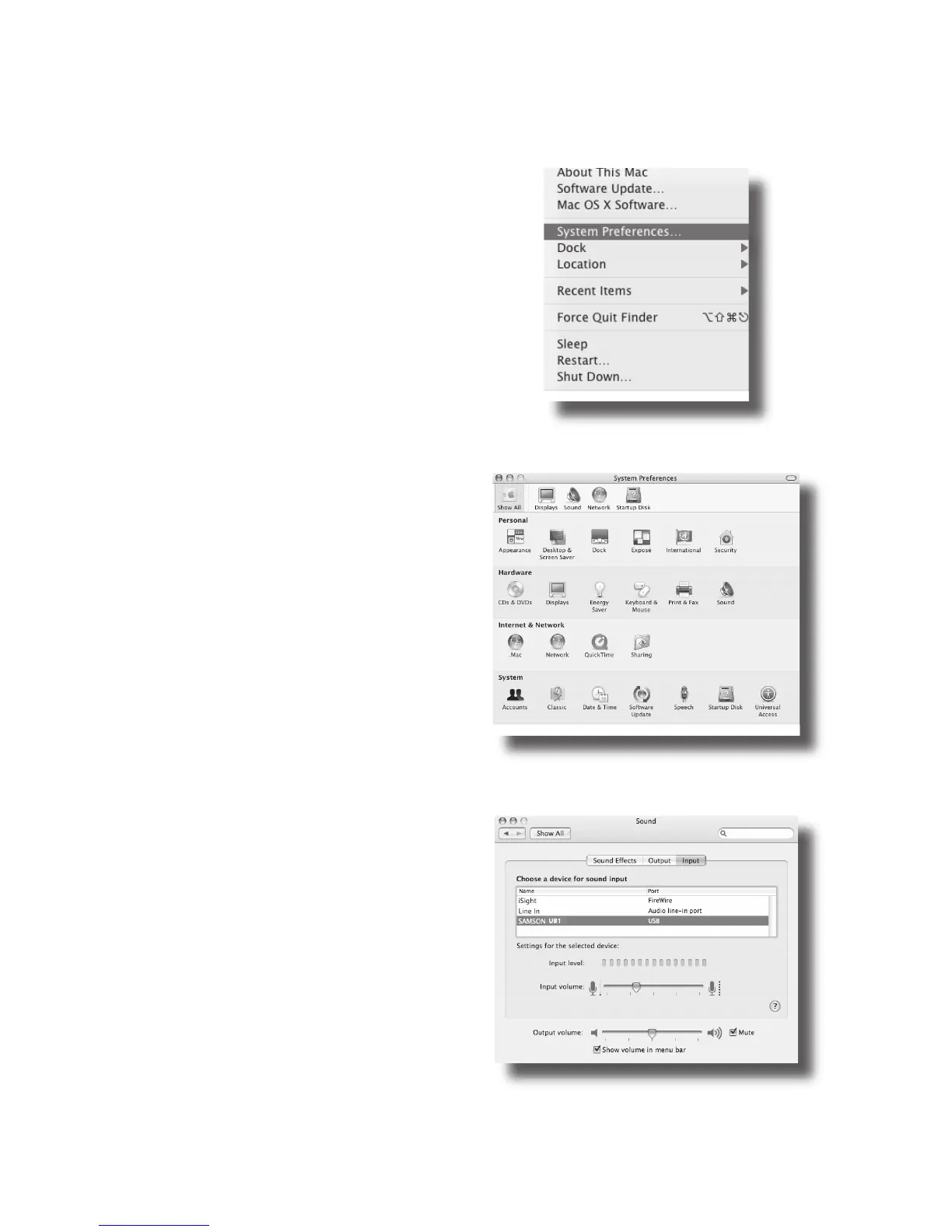

2. To select the UB1 as the computers
audio input, open the System Pref-
erences from the dock or the main
Apple Menu (figure 1).
3. Next open the Sound preference
(figure 2).
4. Now, click in the Input tab and
select UB1 (figure 3).
Figure 2
Figure 1
Figure 3
Installing the UB1

Samson UB1 Specifications

General

Type	PC microphone
Bit rate	16 bit
Microphone frequency	44.1 - 48000 Hz
Microphone direction type	Omnidirectional
USB port	Yes
Device interface	USB
Connectivity technology	Wired
Cable length	3 m
Product color	Black
Number of products included	1 pc(s)
Depth (imperial)	1.75 \
Width (imperial)	5.75 \
Height (imperial)	9 \

Weight and Dimensions

Depth	4.44 mm
Width	14.6 mm
Height	22.8 mm
