Disassembly and Reassembly
Samsung Electronics 3-3
No Parts Procedure Remark

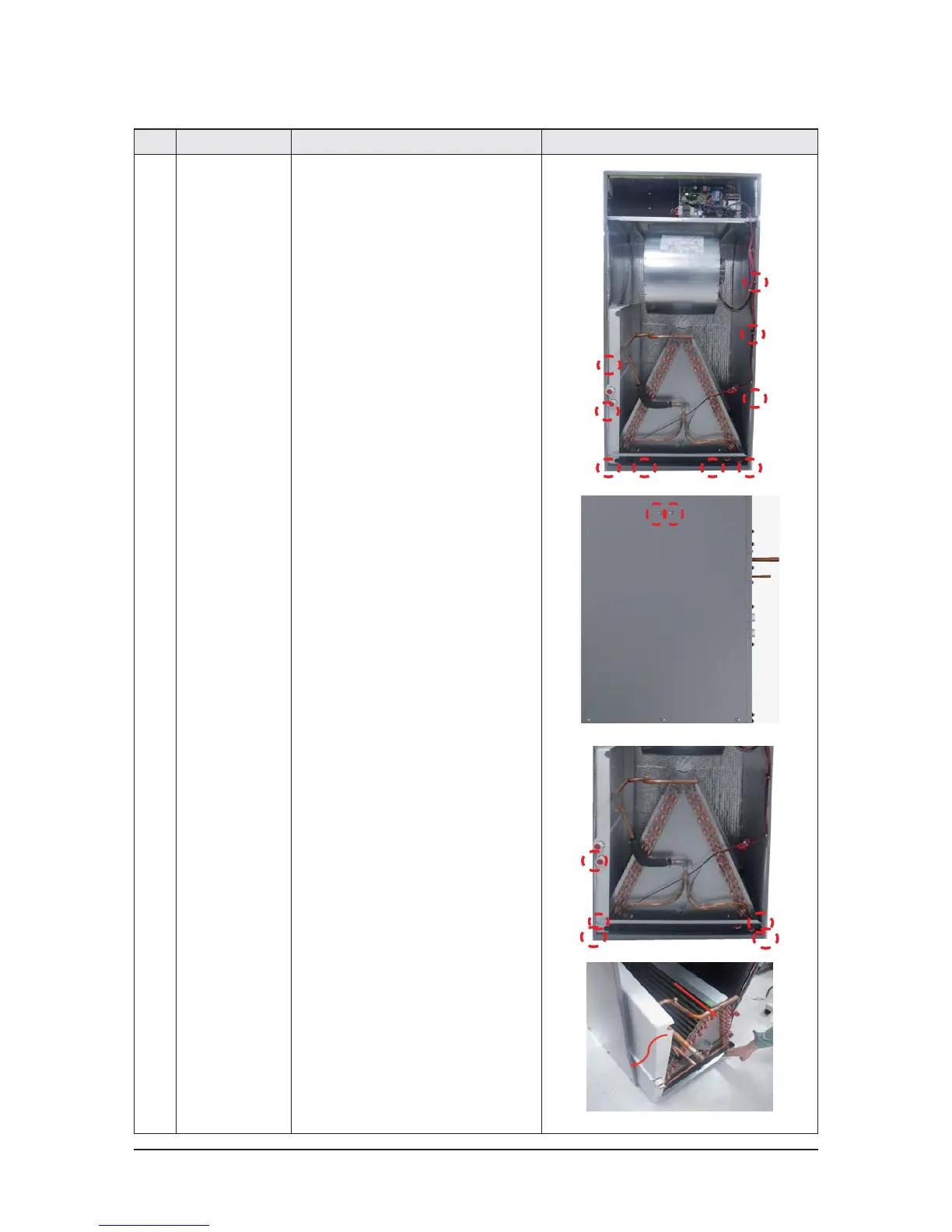

3 DRAIN PAN 1) Loosen 11 of the front screw(CCW) and
detach the Cabinet Front Down.
2) Loosen 2 of the Left side screw(CCW).
3) Loosen 5 of the front screw(CCW) and
detach the 2 Bracket drain and 1 Bracket
Low
4) Pull the Heat Exchanger and Drain.
5) Detach the Drain from indoor Unit.
