Samsung AC024BNHDCH - Indoor Unit Disassembly - Duct S (Drain Pan & Drain Pump)

Disassembly and Reassembly
3-50 Samsung Electronics

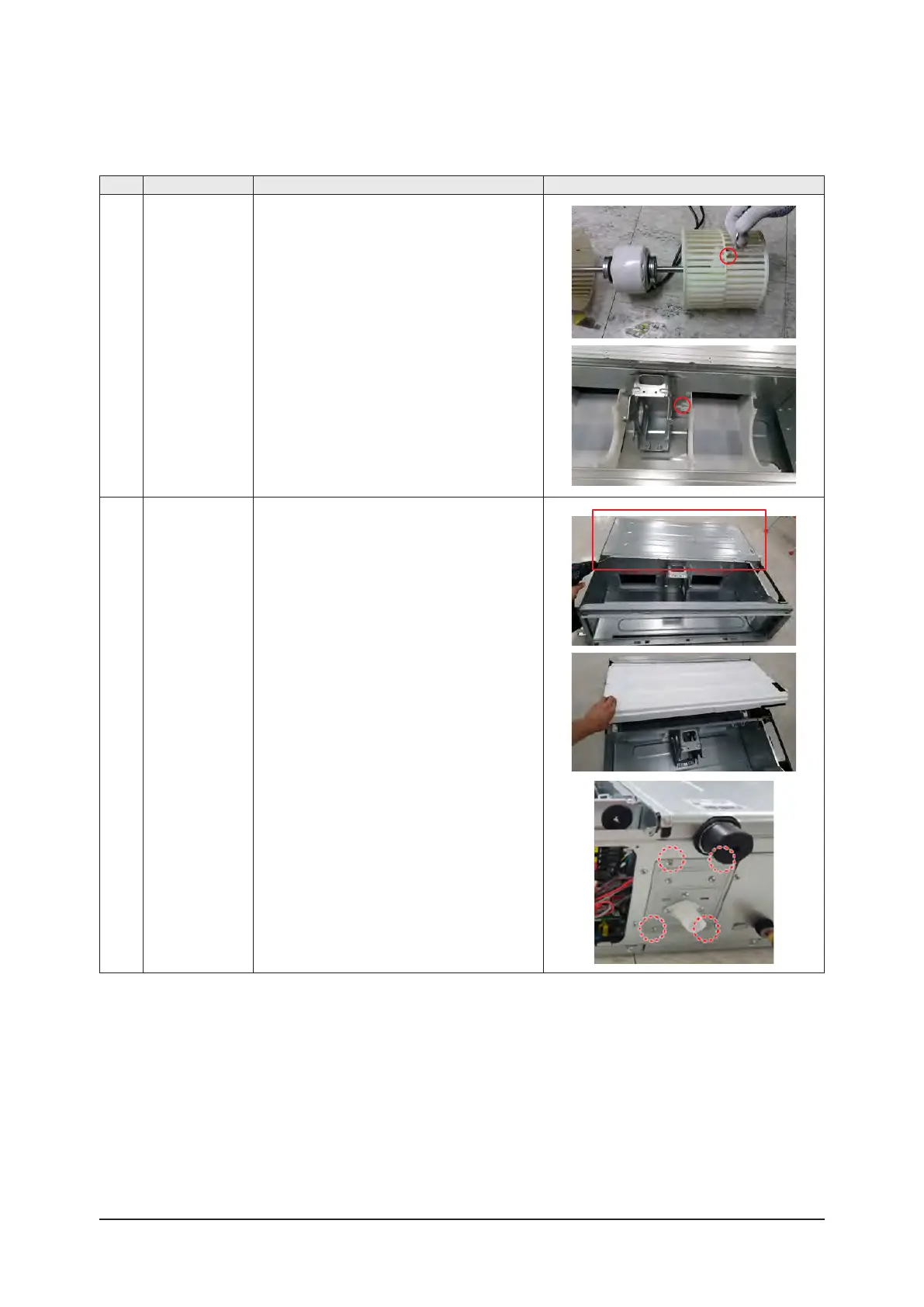

No Parts Procedure Remark
1 Motor &
Blower
6) After disassembling the Motor and
Blower for the set, disassemble the
Blower by use of 3mm wrench.
7) Disassemble the both of Case Blower Out.
- Unscrew 4 screws.
2 Drain Pan &
Drain Pump
1) Disassemble the Cabinet Bottom Evap.
- Unscrew 7 screws.
2) Pull the Drain Pan Out.
3) Disassemble the drain Pump.
- Unscrew 4 screws and disassemble 2
conectors.
