Samsung AC024BNHDCH - Indoor Unit Disassembly - Console (Fan Part)

Disassembly and Reassembly
3-62 Samsung Electronics

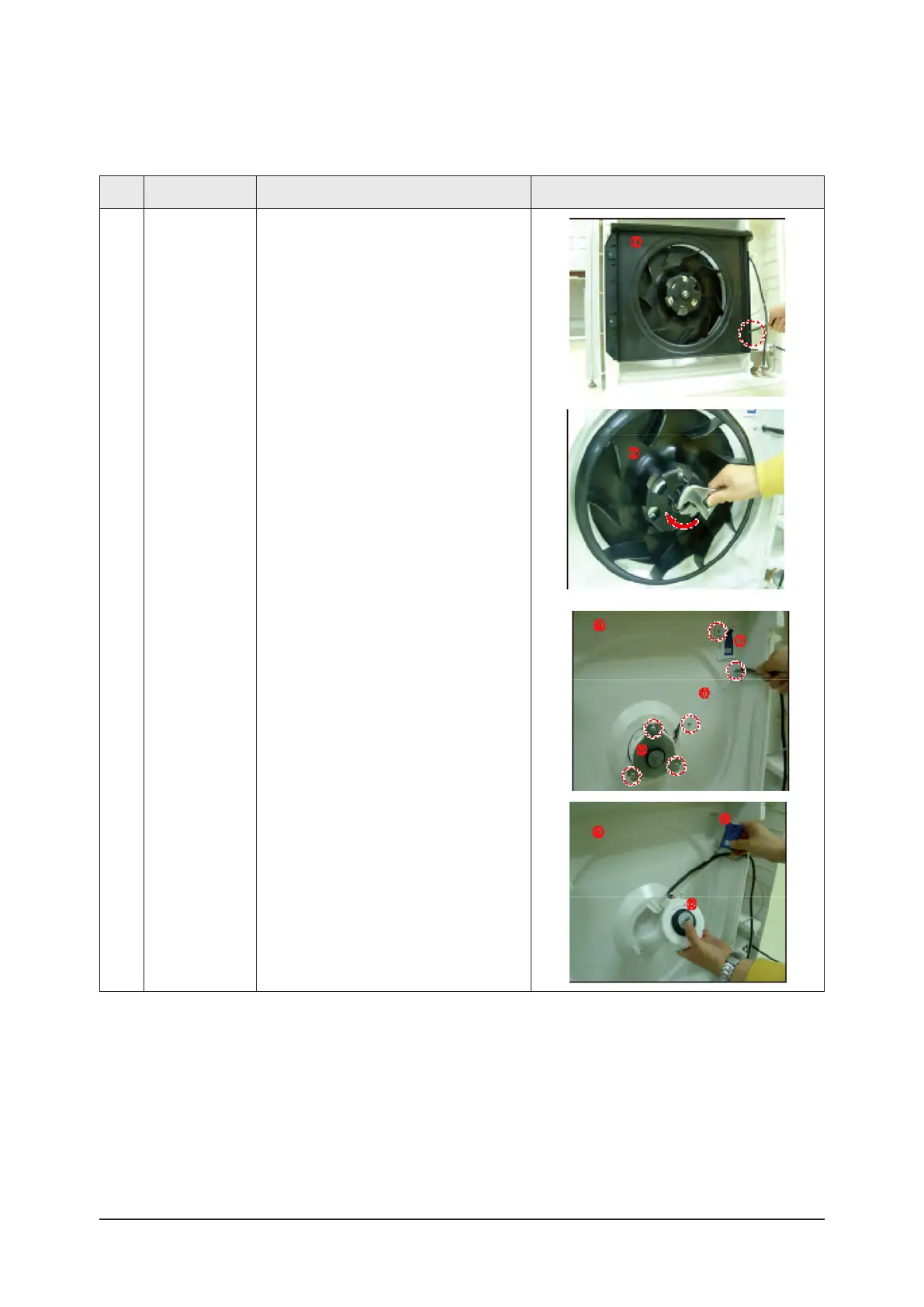

No Parts Procedure Remark
4 Fan Part 1) Release 1 screw and pull the Bell Mouth
( ⓘ ) out.
2)
Release the Nut and pull Fan Turbo( ⓙ )
out.
3)
Release 6 screw on the Body Back( ⓚ ).
Pull the Cap MPI( ⓛ ), Bracket Wire( ⓜ )
and Bracket Motor( ⓝ ) out.
4)
Pull the MPI Kit( ⓞ ) and Motor
