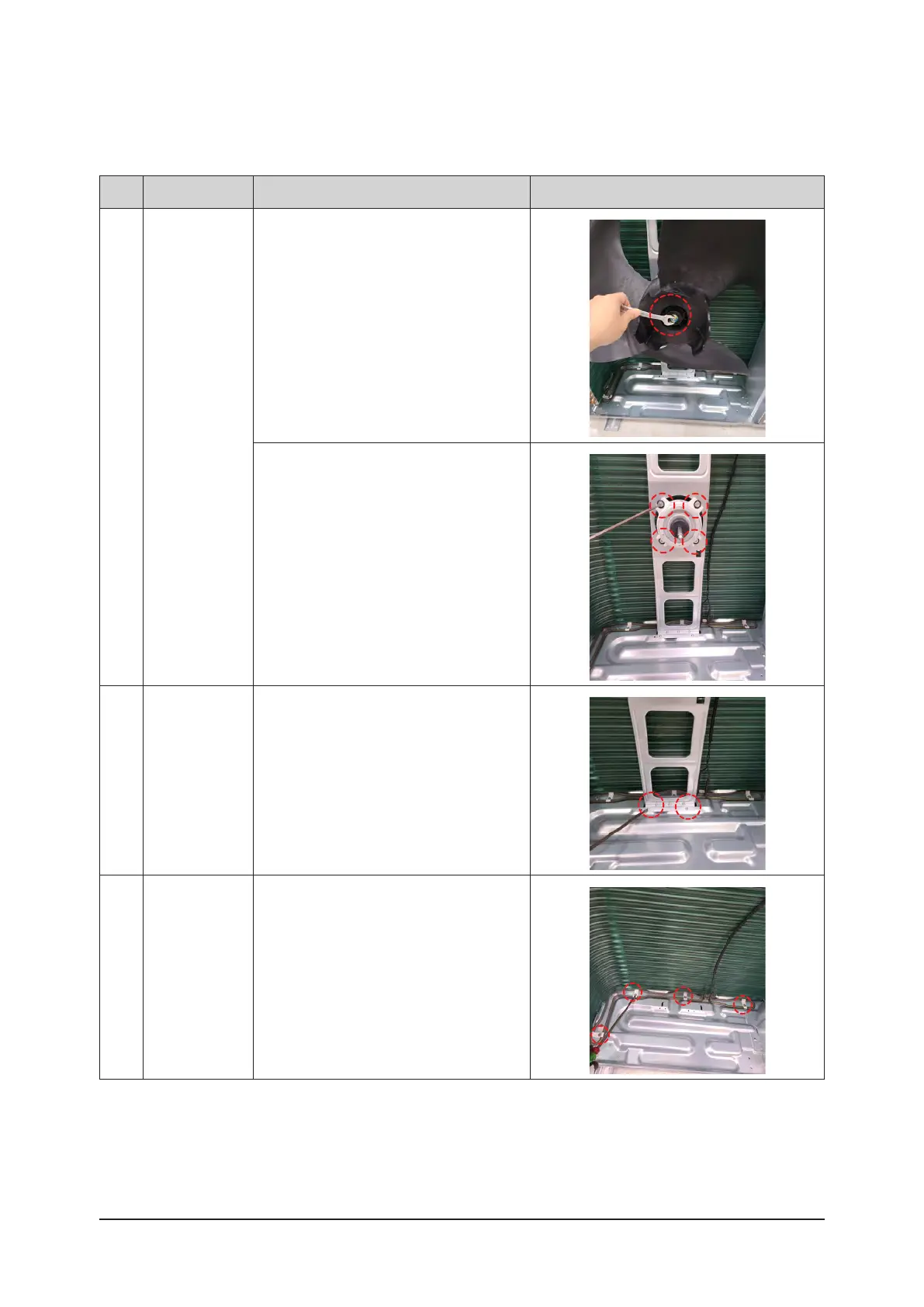

Disassembly and Reassembly
3-92 Samsung Electronics
No. Parts Procedure Remark
7
Fan propeller
+ Motor
1) Take Fan Propeller apart.
2) Unscrew and remove 4 screws on Motor to
take apart Motor.
(Use + Screw Driver)
8
Ass’y bracket
Motor
1) Unscrew and remove 2 screws on to take
apart Bracket Motor.
(Use + Screw Driver)
9 Base Heater 1) Loosen fixing screw and deatach the
Base Heater
