Samsung AC024BNHDCH - Indoor Unit Disassembly - Electrical Equipment Parts

Disassembly and Reassembly
Samsung Electronics 3-17
No Parts Procedure Remark
4 Electrical equipment
parts
(Continues)

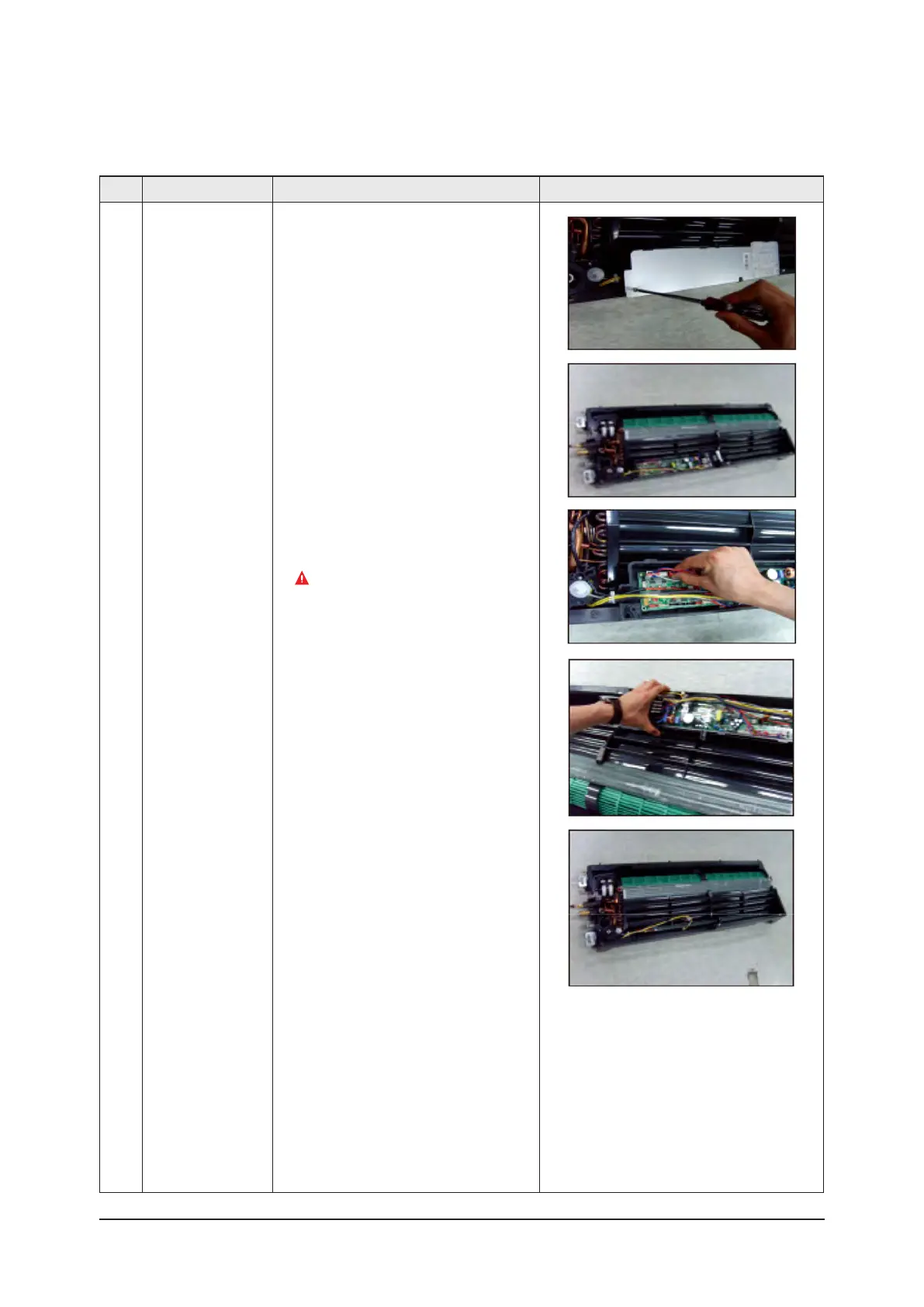

1) Remove the 3 screws fixed in electrical
equipment parts and then separate the
COVER. (Use +Screw Driver)
2) Separate the 8 connectors from the
indoor unit PCB, as shown in the picture.
Turn off the power necessarily in case
of contact pan area.
Be careful, it may cause injury on the
sharp sides of the pan.
3)
Separate the electrical equipment parts
from the indoor unit.
