Disassembly and Reassembly
3-8 Samsung Electronics
■ 1way CST : AC018BN1DCH
No Parts Procedure Remark
1
PANEL And FILTER
WIND FREE TYPE
(PC1BWFM*N)
Air Purification
PANEL
(PC1NBFMUN)
(Continues)

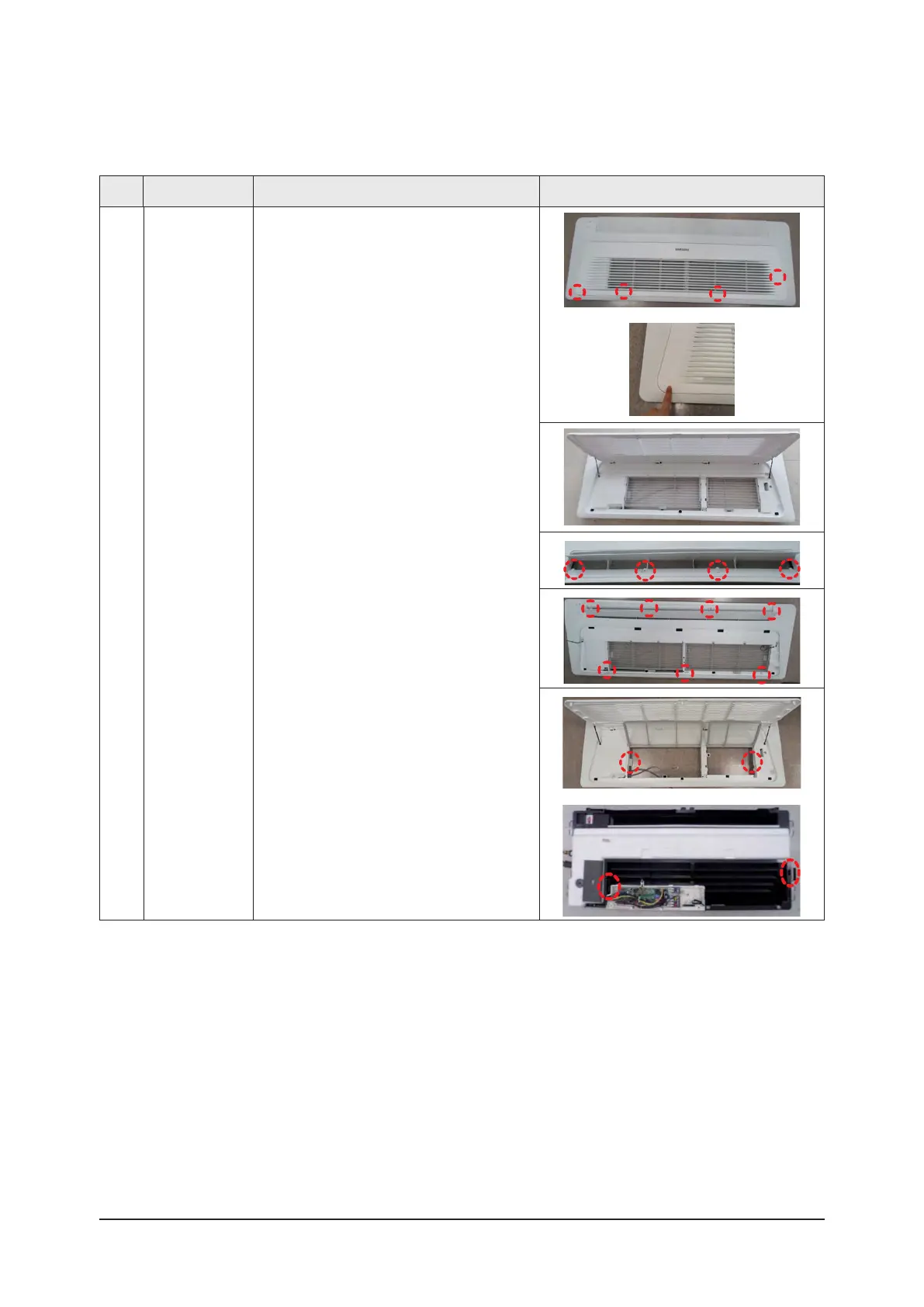

1) Open the GRILLE as shown in the figure.
- 4point
2) Remove the FILTER from the PANEL.
3) Remove the 3 COVER SCREW as shown
in the figure.
4) Remove the 7 screws fixed in PANEL
and then
remove the PANEL.
(Use +Screw Driver)
5) Press the left and right PANEL HOOK
and then
separate the PANEL from the indoor
unit.
To Next Page
