Disassembly and Reassembly
3-4 Samsung Electronics

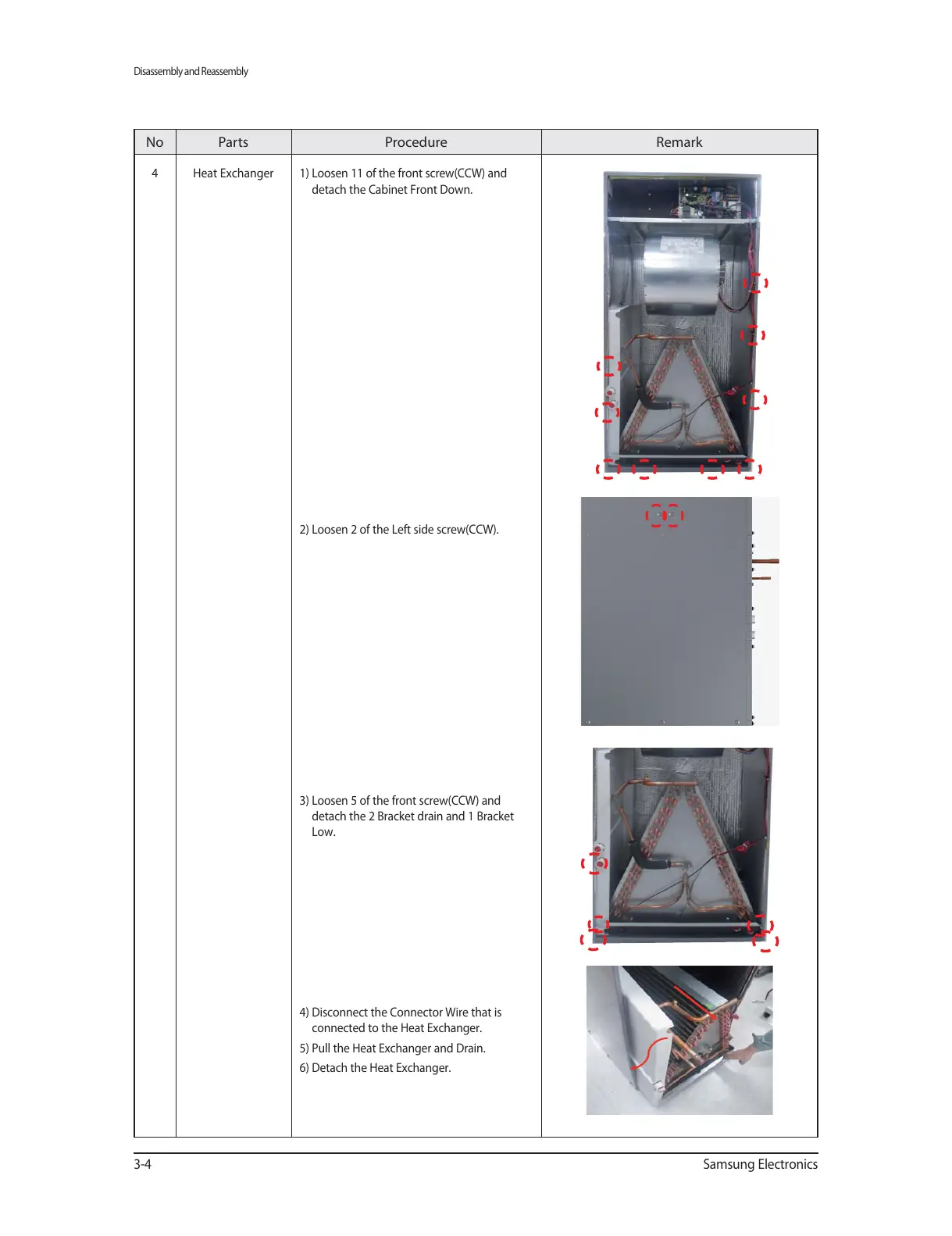

No Parts Procedure Remark
4 Heat Exchanger 1) Loosen 11 of the front screw(CCW) and
detach the Cabinet Front Down.
2) Loosen 2 of the Left side screw(CCW).
3) Loosen 5 of the front screw(CCW) and
detach the 2 Bracket drain and 1 Bracket
Low.
4) Disconnect the Connector Wire that is
connected to the Heat Exchanger.
5) Pull the Heat Exchanger and Drain.
6) Detach the Heat Exchanger.
