6 FAN MOTOR
&
CROSS FAN

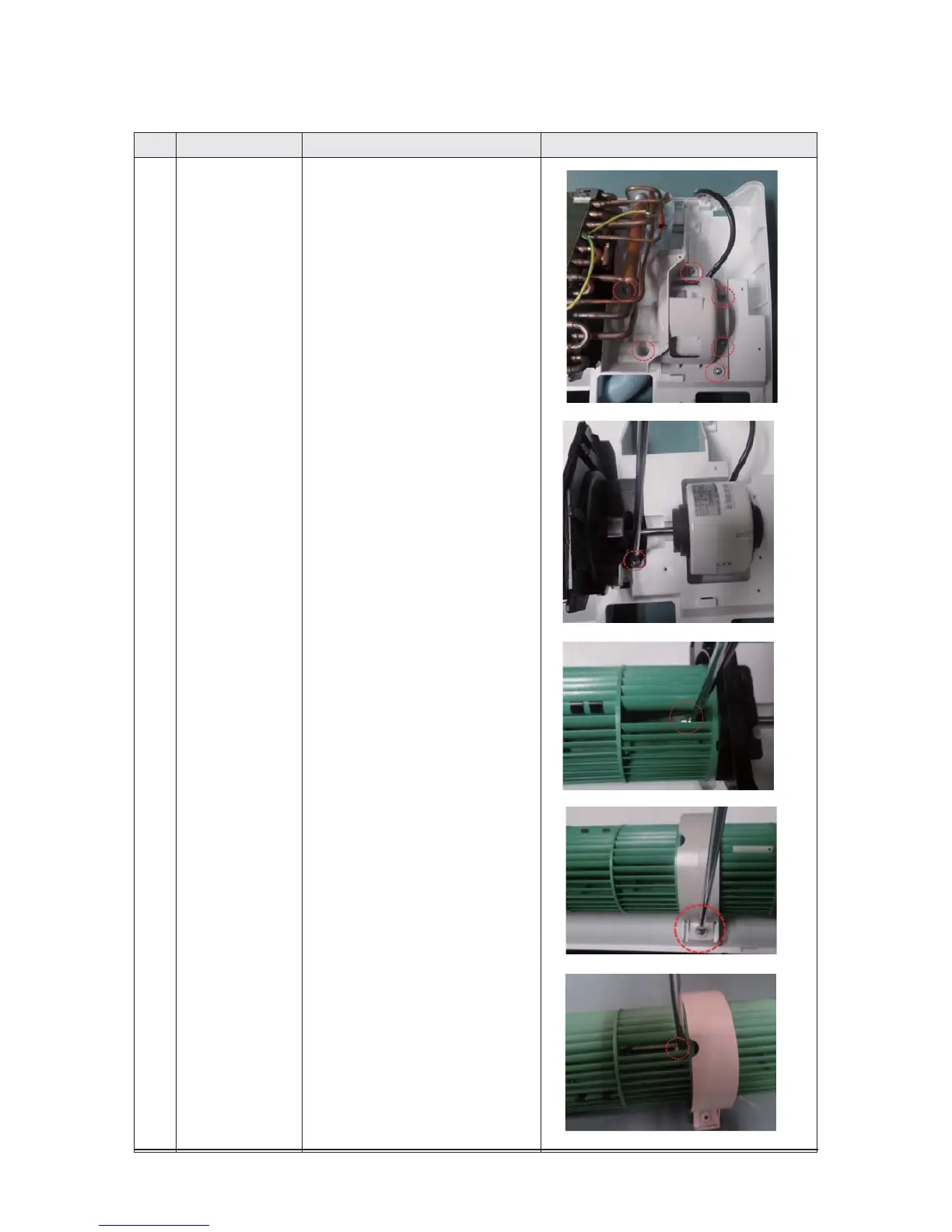

1) Loosen 6 fixing screws of HOLDER-MOTOR
2) unfasten the screw a little. (use + Screw Driver)
3) unfasten the screw a little and pull the MOTOR
FAN to the right side. (use + Screw Driver)
4) Loosen 1 fixing screws of HOLDER-FAN.(use +
Screw Driver)
5) unfasten the screw a little.(use + Screw Driver)
