Samsung AC052FCADEH - Outdoor Unit; 7 Schematic Diagram

2-4 Samsung Electronics

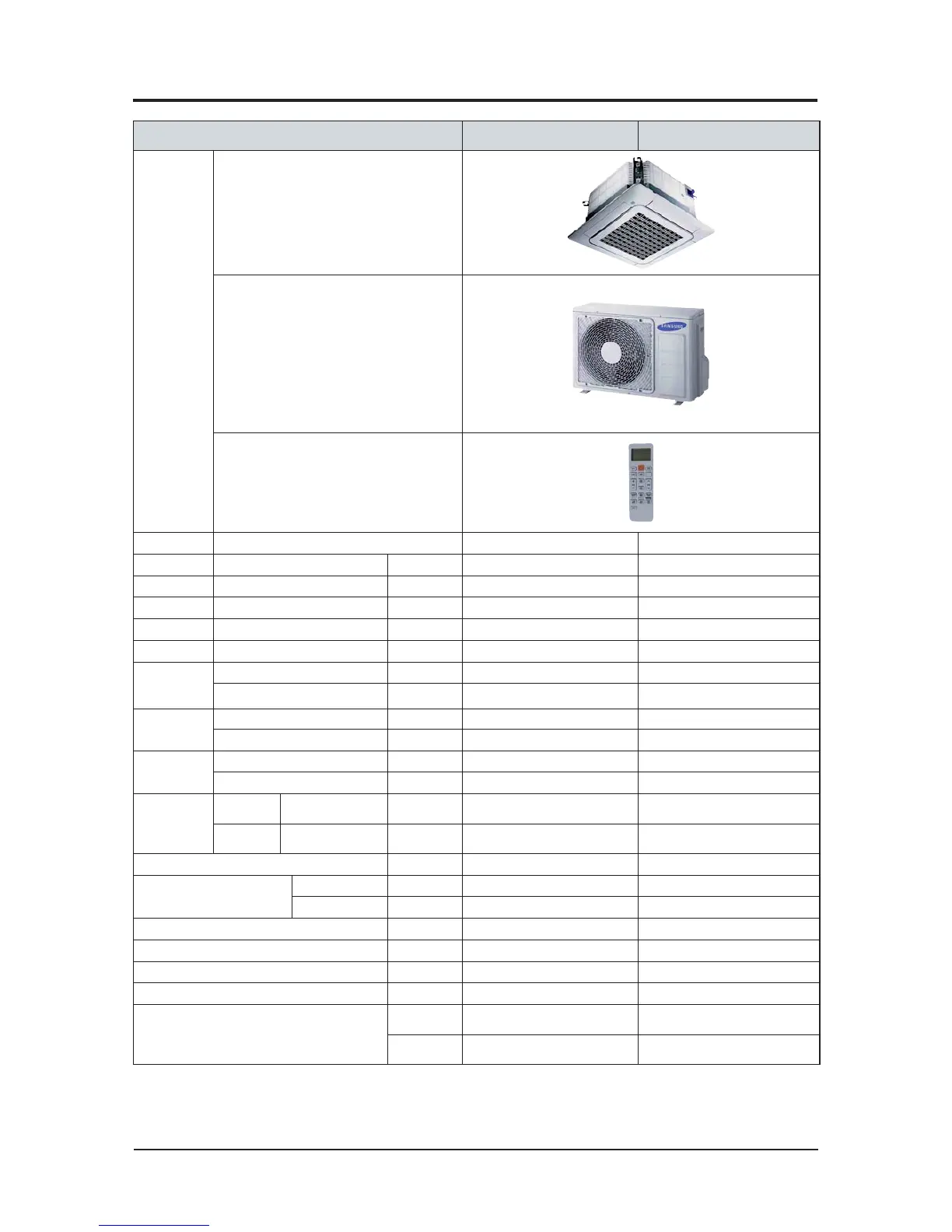

ITEM
ACN026NDEHH/SA
RC026DHXEH/XSA
ACN035NDEHH/SA
RC035DHXEH/XSA
Indoor Unit
Outdoor Unit
Remote Controller
Power Product 1Φ, 220-240V/50Hz 1Φ, 220-240V/50Hz
Indoor L x H x D mm 575*250*575 575*250*575
Panel L x H x D mm 670*45*670 670*45*670
Outdoor L x H x D mm 790*285*545 790*285*545
Indoor Product kg(Net) 11.0 11.7
Outdoor Product kg(Net) 32.8 38.4
Capacity
Cooling(STD) W 2600
3500
Heating(STD) W 3300 4000
Power
Consumption
Cooling(STD) W
650 940
Heating(STD) W 868 1070
Operation
current
Cooling(STD) A
3.07 4.4
Heating(STD) A 4.10 5.0
Noise
(Cooling/
Heating)
Indoor unit
In case of strongest air
blow
dBA
38/39 41/42
Outdoor unit
In case of strongest air
blow
dBA 51/51 53/53
Refrigerant (R410A) g 950 1,400
Connecting Pipe
Liquid mm 6.35
6.35
Gas mm 9.53 12.7
Additional Refrigerant (R410A) g/m -10
Standard m 7. 5 7. 5
Extension length(Total) m 20 20
Extension length(Elevation) m 15 30
Option Code
Product
Option
015077-1660F8-271A21-370000
015077-166219-272328-370040
Installation
Option
020000-100000-
200000-300000
020000-100000-
200000-300000
Product Specifications (cont.)
