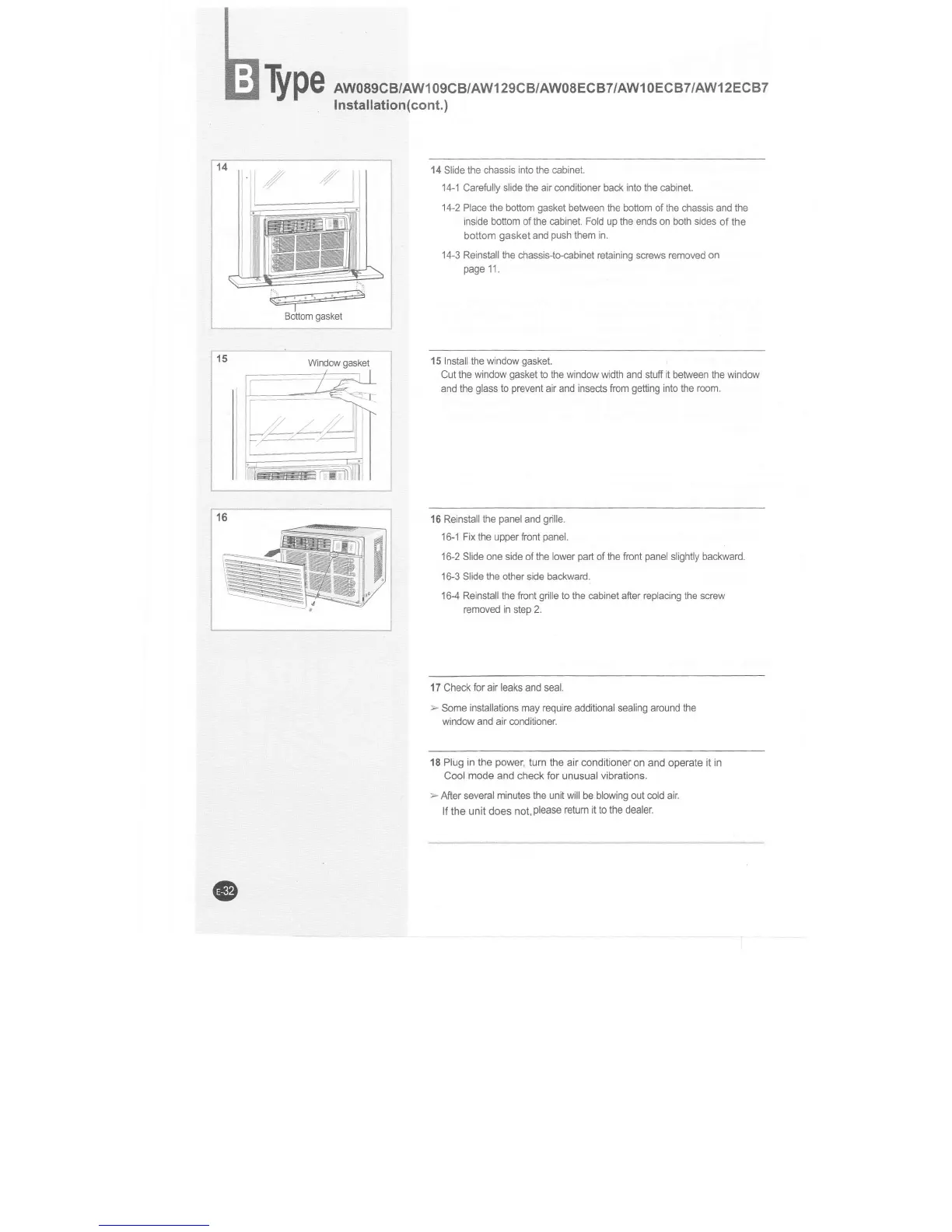

Slide the chassis
into
the
cablnet.
14-1
Carefully
slide
the air conditioner back into the cabinet.
14-2 Place the bottom
gasket
between
the bottom ofthe chassis and the
inside bottom of the cabinet. Fold uo the ends on both
sides
of the
bottom
gasket
and
push
them in.
14-3 Reinstall the
chassis-to-cabinet
retaining
screws
removed on
page
11.
15 Install
the window
gasket.
Cut the window
gasket
to
the
window
width and stufi it between the window
and the
glass
to
prevent
air and insects
from
getting
into the room.
16 Reinstall
the
panel
and
grille.
16-1 Fix the upper
front
panel.
1G2 Slide one side of the lower
part
of
the font
panel
slightly backward.
1&3 Slide the other
side
baclward.
'i6.4
Reinstall the ftont
grille
to the cabinet after replacing the screw
removed in step 2.
17 Check
ficr
air
leaks
and seal.
>
Some
installations
may requke additjonal sealing around the
window
and air conditioner.
18 Plug
in the
power,
tum the air conditioner
on and operate it in
Cool mode and check for unusual vibrations.
>
Affer
several minutes
the unit
will be blor
ring
out cold air.
lf the unit does not.
please
refum it to the dealer.
