Exploded Views and Parts List

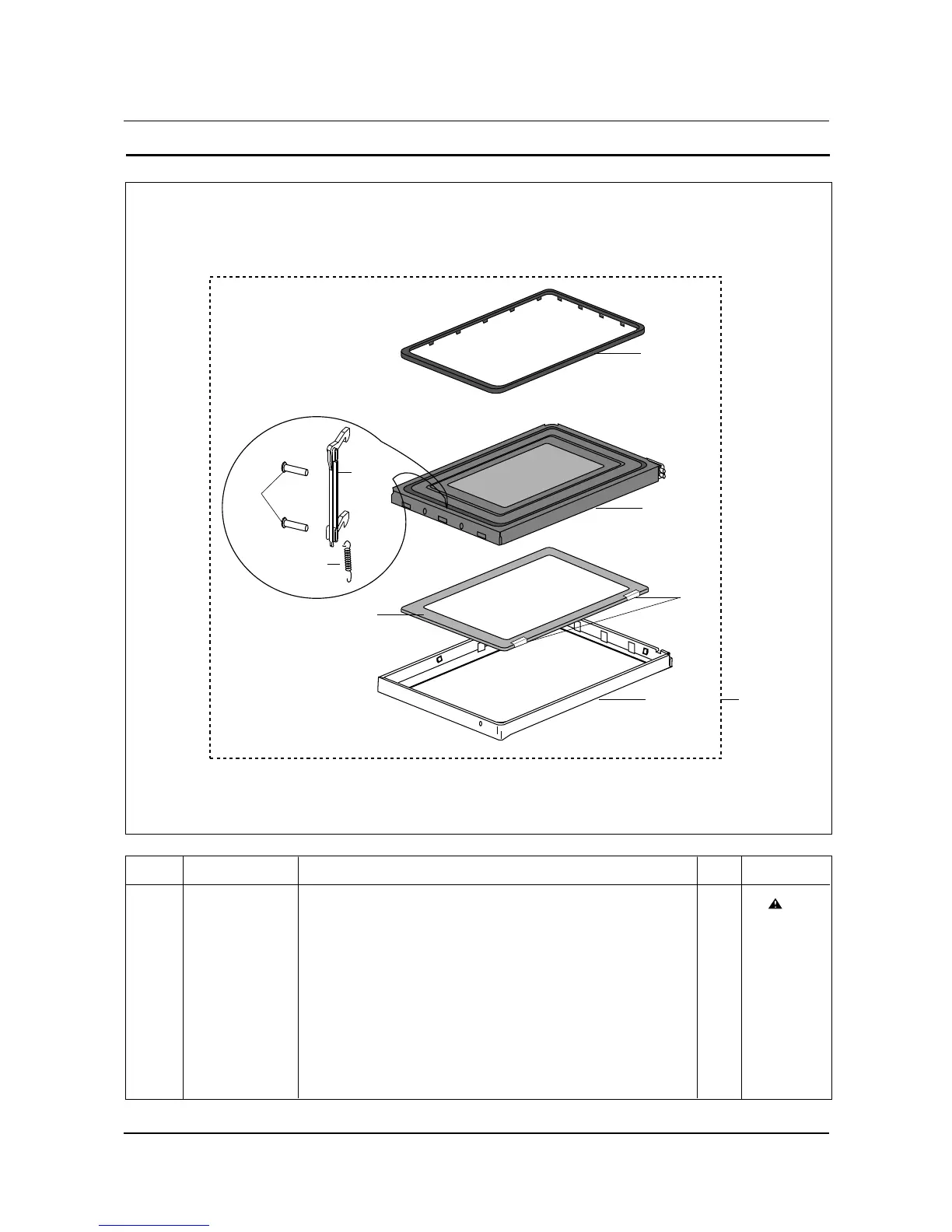

7-3 Exploded View & Parts List - Door Parts
Ref. No. Parts No. Description/Specification Q'ty Remarks
1 DE64-40064B DOOR-A;PC RP-WH-01-K 290G RE-1300 1
2 DE67-20117K SCREEN-DOOR(B);TEMP GLASS T3.2 W278 L423.7 1
3 DE92-50080E ASSY DOOR-E;MBG45 COATING SIL/SELANT 1
4 DE64-40173A DOOR-C;PBT BLK 24G RE-1300 1
5 DE64-40087H DOOR-KEY;POM(TC3005) BLK 13G W3 1
6 DE61-70030A SPRING-KEY;ES HSW3 PI0.7 D7.0L40 BULING 1
7 DE60-60008A PIN-HINGE;PI4 L17 MSWR10 M301TBC 2
8 DE02-00082A TAPE-DOUBLE FACE;PET T0.4 W9 WHT SEIL SI-500HI 1
9 DE92-40094P ASSY DOOR;CE101KR(SBTW) WHT 1
1 9
2
8
3
4
5
6
7
