SETTING UP

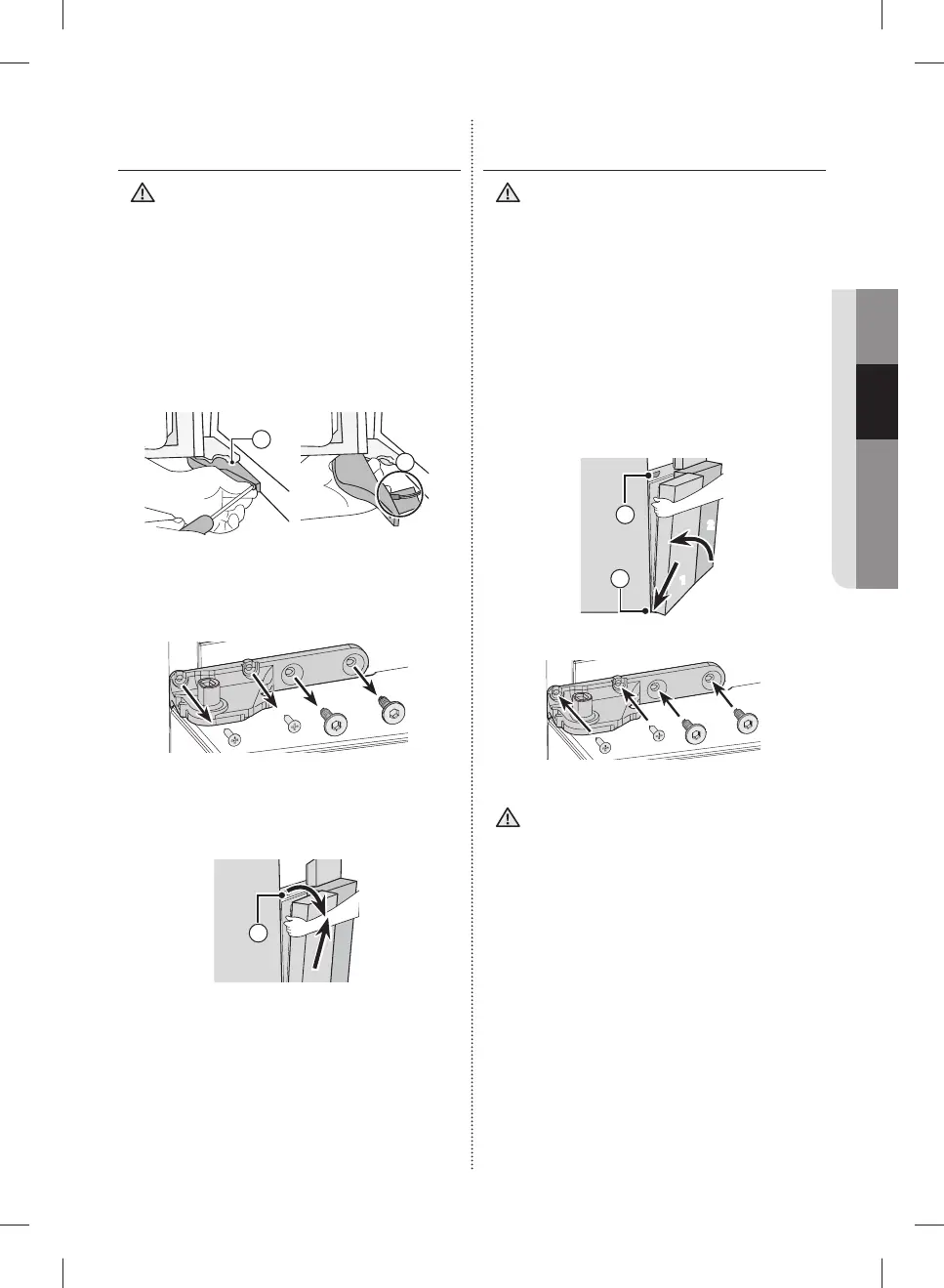

DISASSEMBLE THE FREEZER
DOORS
• Be sure to remove the Fridge Door before
removing the Freezer Door.
• Be careful with the wires attached to the bottom
of the Freezer Door while disassembling.
1. With the door open, remove the screw
holding the cover (A) of the Adjustable Leg
at the bottom of the door with a Phillips
(+) Screwdriver, and then disassemble the
Connector (B).
A
A
B
B
2. Remove the screws in the door hinge, and then
pull out the door.
3. Tilt the Door forward a little, and then lift it up to
remove.
1
1
2
2
E
E
CAUTION
RE-ATTACHING THE
REFRIGERATOR DOORS
• Be sure to re-attach the Freezer Door
before re-attaching the Fridge Door.
• Before re-attaching, make sure that all the wire
connectors at the bottom of the Freezer Door
are connected.
How to Re-attach the Freezer Door
1. Insert the door into the lower hinge (A) in the
direction of arrow (1) and then push the door in
the direction of arrow (2).
Tighten the screw in the Mid hinge at point (B).
1
2
A
A
B
B
• Be careful not to damage the wires on
the bottom of the door.
Avoid stepping on them, etc.
CAUTION
CAUTION
