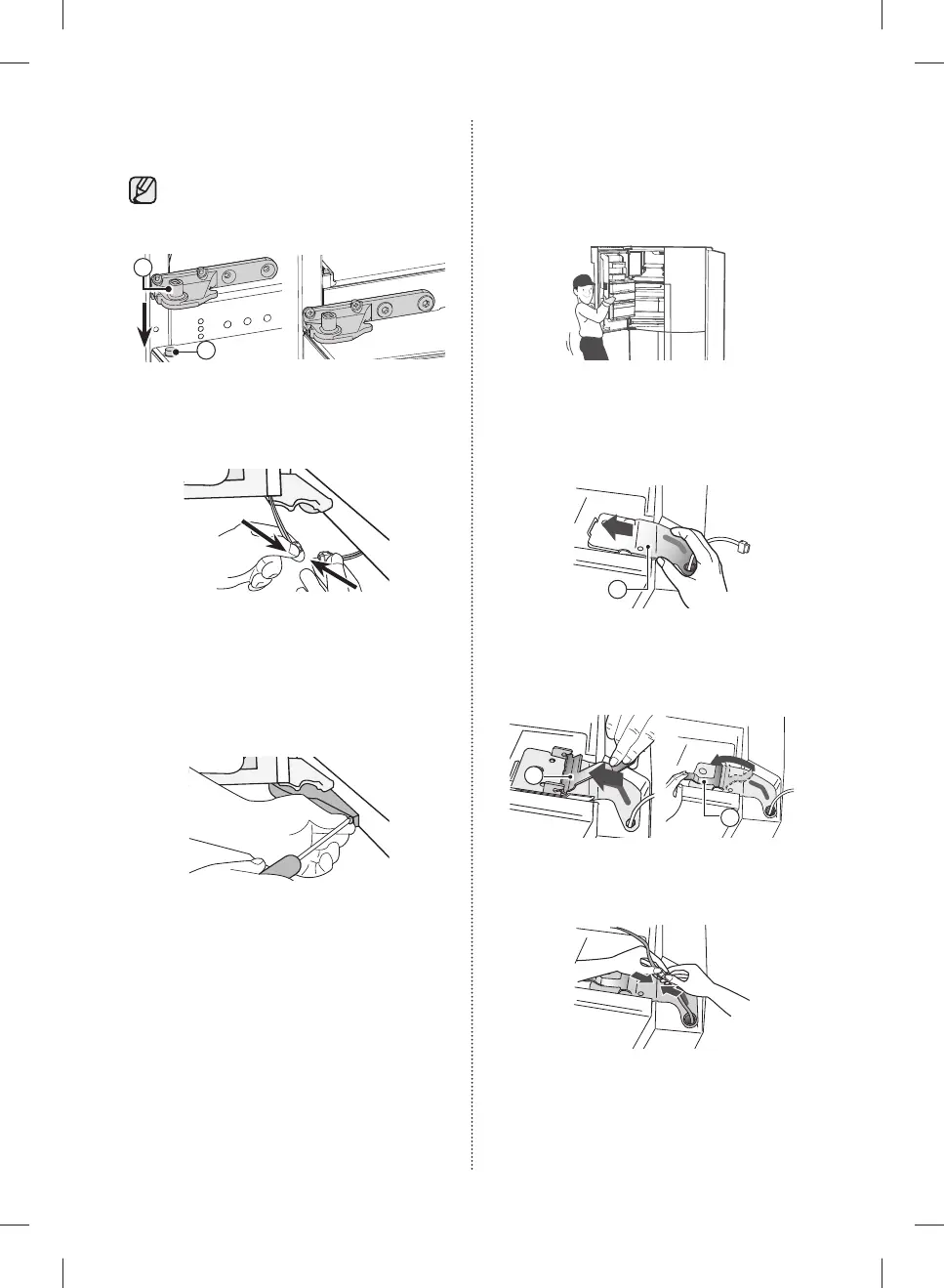

2. Insert the Hinge Shaft (C) into the Mid Hinge
Hole (D).
• When assembling the Hinge Shaft and
the Hinge Cap, be sure to assemble
them in the correct direction.
D
D
C
C
3. With the door open, join the connectors on the
bottom of the door.
- Be careful not to step on or damage the
connectors.
4. Attach the Adjustable Leg Cover using a Phillips
(+) Screwdriver.
How to Re-attach Fridge Door
1. Attach the detached Fridge Door to the Mid
Hinge.
(Attach the Door in the open position.)
2. Slide the Fridge Hinge (C) into the fi xing slot,
and then press it down so that it is aligned with
the hole in the door.
C
C
3. Inserting the Fixer Lever (B) in the direction of
the arrow, and then fl ip it down to assemble.
B
B
B
B
4. Assemble the Wire Connector.
