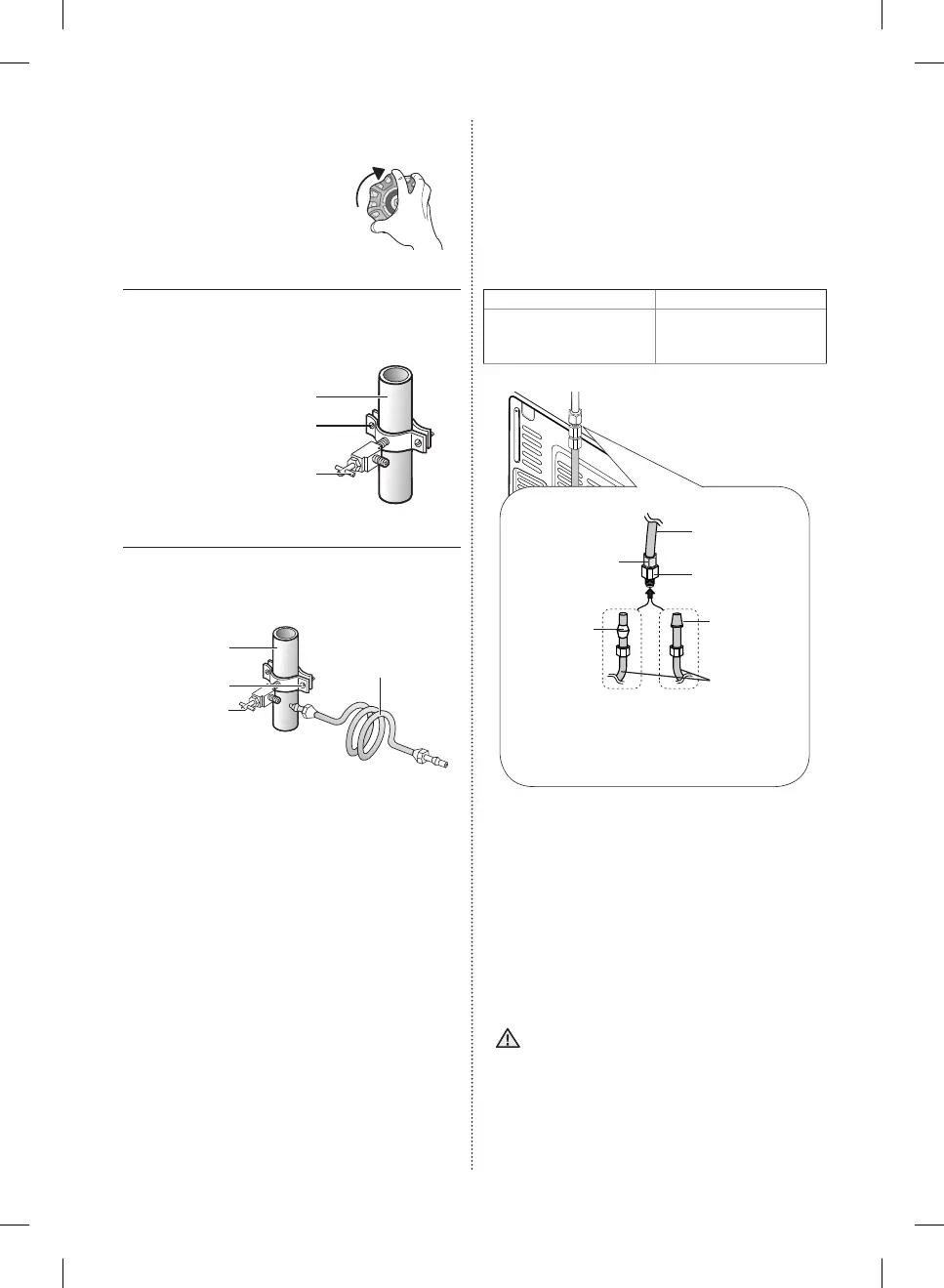

Connecting to the water supply line
1. First, shut o the main water
supply.
2. Locate the nearest cold water drinking line and
install the pipe clamp and shut o valve.
Pipe clamp
Pipe clamp
Cold water line
Cold water line
Shut o valve
Shut o valve
3. Connect the water line installation kit to the shut
o valve.
Shut o valve
Shut o valve
Pipe clamp
Pipe clamp
Cold water line
Cold water line
Water line installation
Water line installation
kit
kit
Connecting the water supply line to the
refrigerator.
There are several items that you need to purchase
to complete this connection.
You may fi nd these items sold as a kit at your local
hardware store.
For Copper Tubing For Plastic Tubing
• ¼” copper tubing
• ¼” compression nut (1pc)
• Ferrule (2pc)
• ¼” plastic tubing
→
Molded end (Bulb)
• ¼” compression nut (1pc)
Compression
Compression
Nut (1/4”)
Nut (1/4”)
(Assembled)
(Assembled)
Ferrule
Ferrule
(Not
(Not
supplied)
supplied)
Plastic Tubing
Plastic Tubing
(Assembled)
(Assembled)
Compression
Compression
Fitting
Fitting
(Assembled)
(Assembled)
Molded end
Molded end
(Bulb)
(Bulb)
Compression
Compression
nut (B) (1/4”)
nut (B) (1/4”)
(Not supplied)
(Not supplied)
or
or
Copper tubing
Copper tubing
(Not supplied)
(Not supplied)
Plastic tubing (B)
Plastic tubing (B)
(Not supplied)
(Not supplied)
Household water supply line
Household water supply line
Refrigerator
Refrigerator
1. Connect the household water line to the
assembled compression fi tting.
- If you are using copper tubing, slip the
compression nut (B) (not supplied) and ferrule
(not supplied) on the copper tubing (not
supplied) as shown.
- If you are using plastic tubing (B), insert the
molded end (Bulb) of the plastic tubing (B) into
the compression fi tting.
• Do not use without the molded end (Bulb)
of the plastic tubing (B).
CAUTION
