Component Voltage
Water Valve 120vac 1.2 KΩ
Drain Pump 120vac 42.2Ω
Heater 120vac 13Ω
Half Load Mtr 120vac 2.6KΩ
Fan Mtr 120vac 150Ω
Disp Wax Mtr 120vac 2.3KΩ
Circulation Mtr 120vac 16.5Ω
Thermistor
Temp.
(ºF)
Resistance
(k)
41 125.78
50 98.323
59 77.454
68 61.465
77 49.12
86 39.517
95 31.996
104 26.065
113 21.385
122 17.599

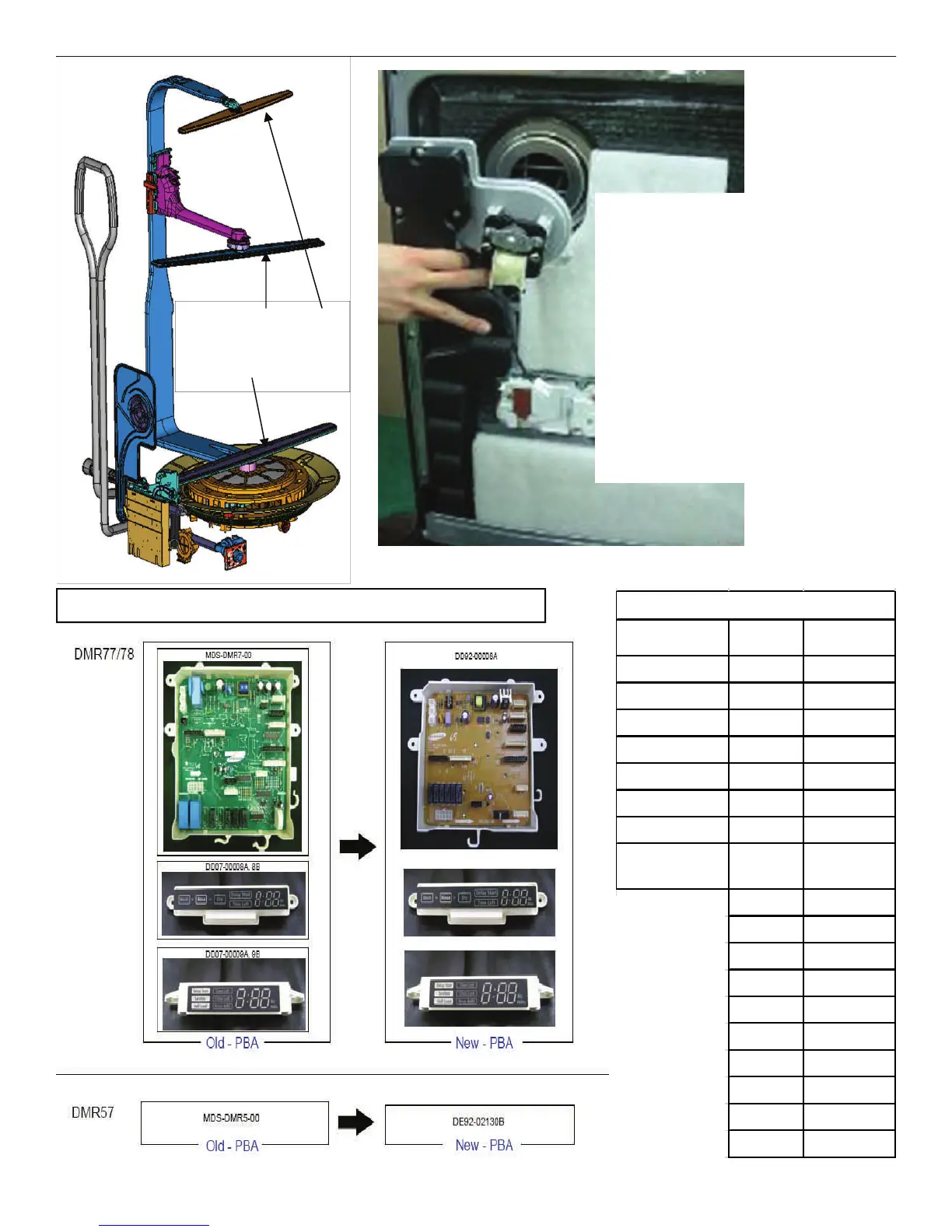

Components
Leaking and Poor
Washability—Check
for split wash arms
Dishwasher Parts Change 5/2009
Drying Concerns
Condensing Dry System is used to
conserve energy
1. Verify proper operation of Rinse Aid
Dispensing.
2. Verify Fan operation.
3. Must use a Rinse Agent
4. Should use Sanitize Cycle
5. Should open door between 30
minutes and 3 hours after completion of
the cycle.
All in One products do not dry as well.
Plastic items will not dry properly.
