Samsung DV209AEW/XAA User Manual

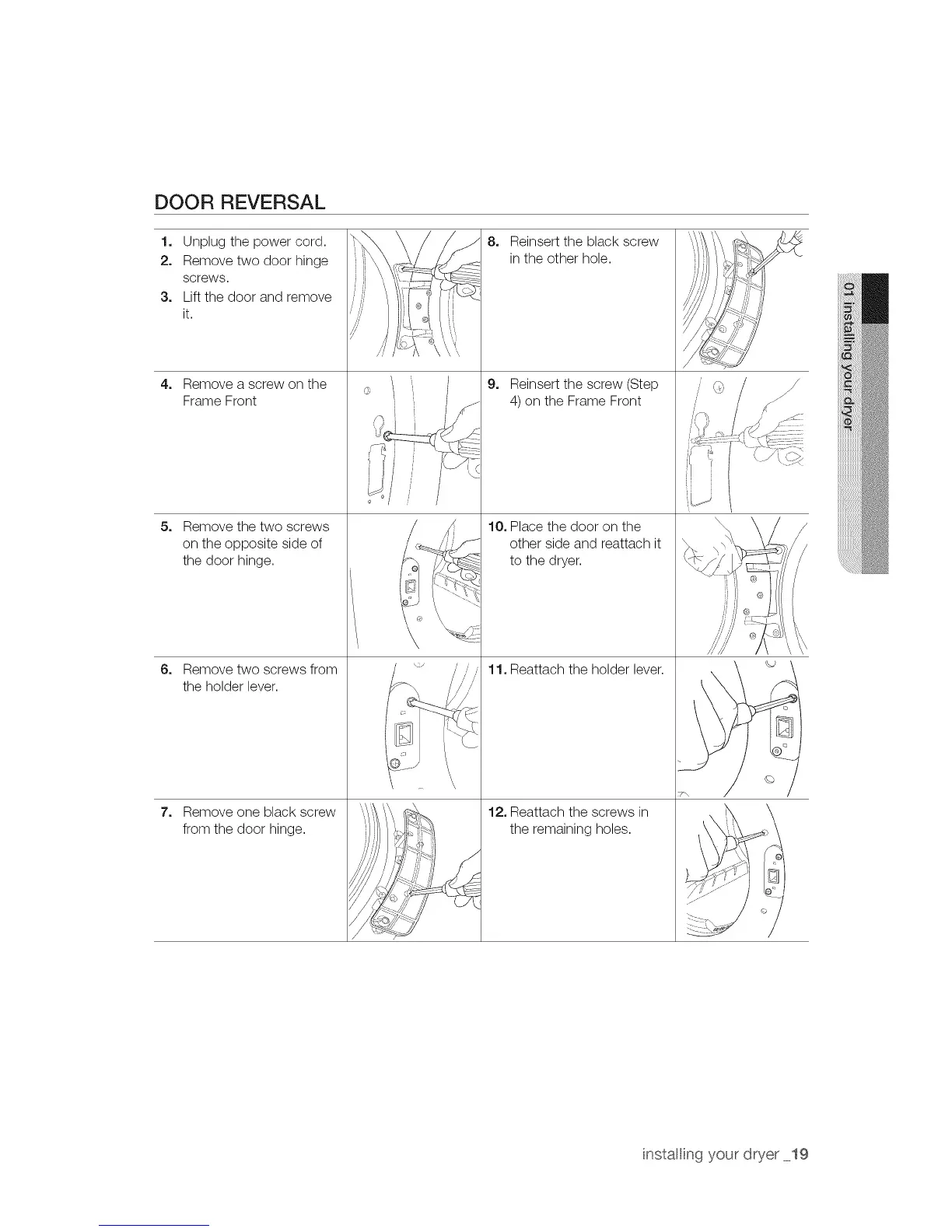

DOOR REVERSAL
1, Unplug the power cord.
2. Remove two door hinge
screws.
3. Lift the door and remove
it.
4. Remove a screw on the
Frame Front
5, Remove the two screws
on the opposite side of
the door hinge.
6. Remove two screws from
the holder lever.
7, Remove one black screw
from the door hinge.
,Ji;::Y
_" ,,,I
o
8. Reinsert the black screw
in the other hole.
9. Reinsert the screw (Step
4) on the Frame Front
10. Place the door on the
other side and reattach it
to the dryer.
11. Reattach the holder lever.
12. Reattach the screws in
the remaining holes.
instal ing your dryer 19

Samsung DV209AEW/XAA Specifications

General

Brand	Samsung
Model	DV209AEW/XAA
Type	Electric Dryer
Color	White
Dryer Venting	Vented
Number of Temperature Settings	4
Wrinkle Prevention Option	Yes
End of Cycle Signal	Yes
Energy Star Certified	No
Control Type	Electronic
Width	27 inches
Drying Options	Time Dry
Height	44 in.
