Samsung DVM Chiller - Hydro Terminal Blocks

22
DVM Chiller – Control
K1 K2 K3 K4 K5 K6

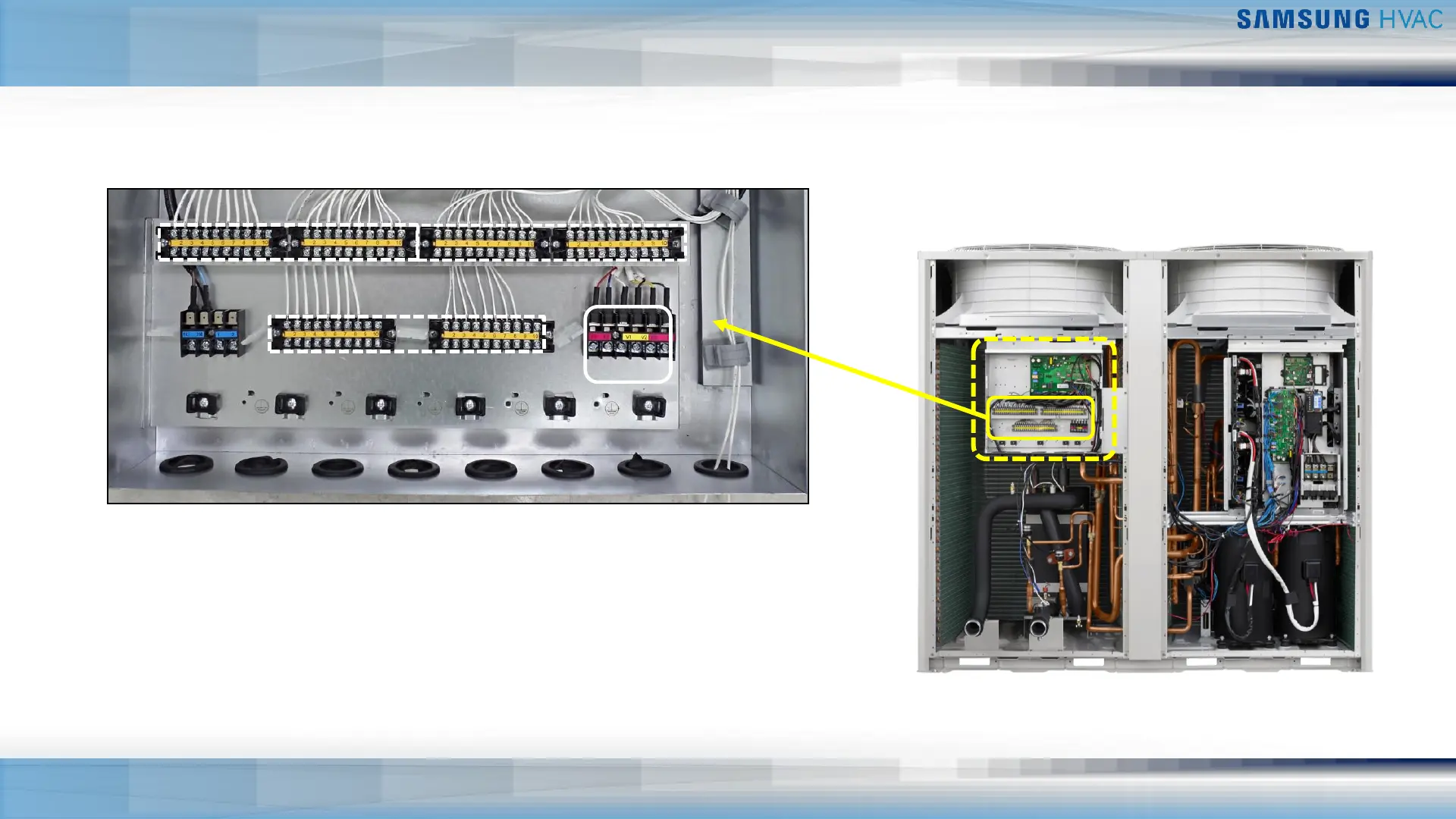

Hydro Control Box
▪ TB “A” – External Output Contact
▪ TB “B” & “C” – External Input Contact
▪ Communication Terminal Block:
▪ F1 F2 – Factory connection
▪ V1 V2 – Not used
▪ F3 F4 – Module Controller
TB “A” TB “B”
TB “C” Comm
Chiller System Components
Hydro Terminal Blocks
TB “A” TB “B”
TB “C”
Comm
