Samsung DVM Chiller - FCU Kit and Interface Module Connections

30

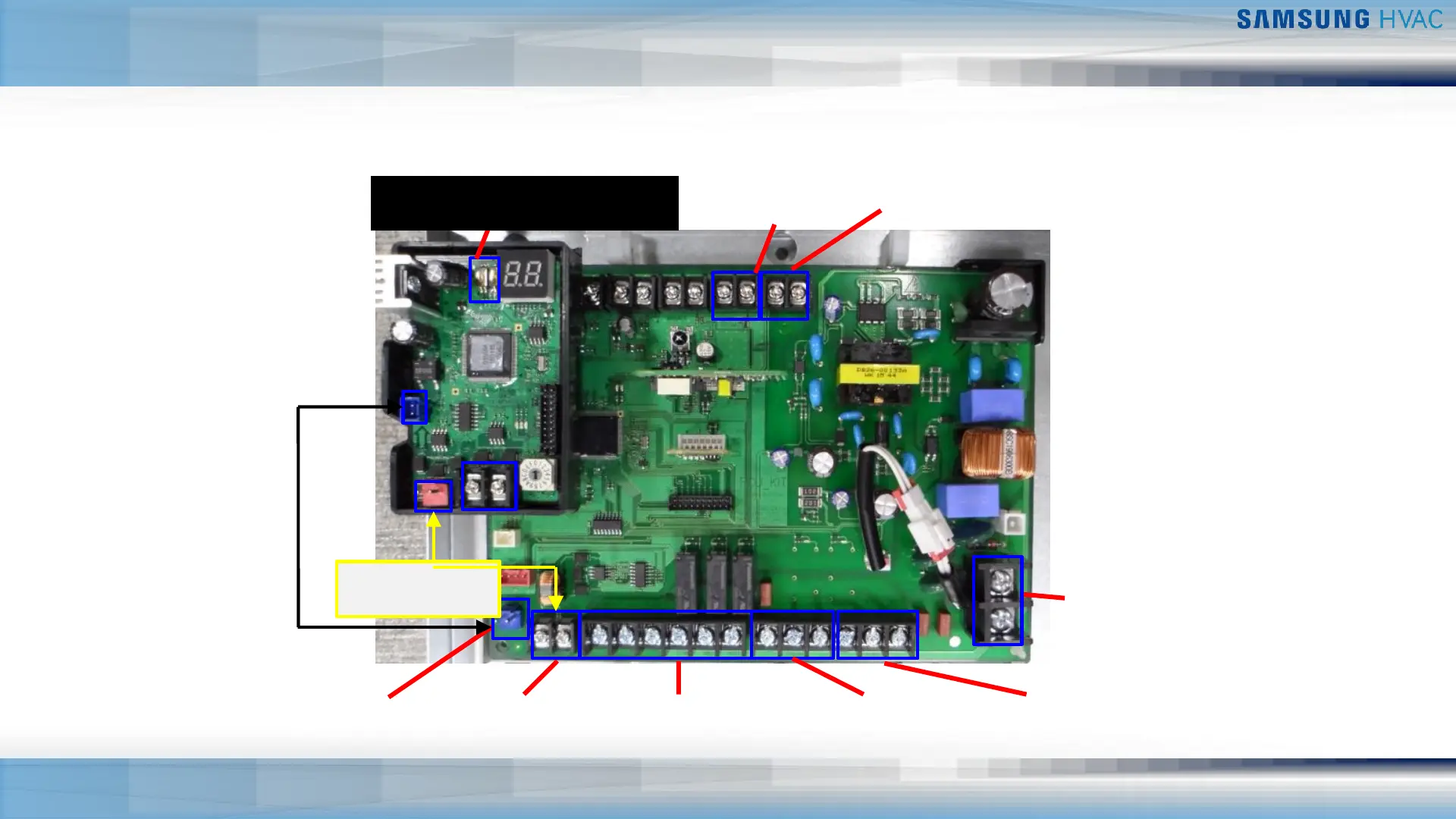

Chiller System Components
FCU Kit / Interface Module
AC Power
208~230(V), 60Hz
Water Valve 2
208~230(V), 60Hz, 0.5A
Water Valve 1
208~230(V), 60Hz, 0.5A
AC Fan
208~230(V), 60Hz, 1A
F2
FCU I/M
(communication)
FCU I/M
(Power) 12V
V1 V2
F3 F4
Wired remote controller
(communication / power)
External contact input
(Dry contact)
Power input
(12V)
Communication
(F1/F2)
R1R2
Option switch
(Manual address / Auto) address)
F1
MIM-F10N
Interface
Module
MIM-F00N
FCU Kit
