Samsung DVM Chiller - Outdoor Unit Wiring - Hydro Terminal Block C

Chiller Basic Installation
44
Outdoor Unit Wiring
Hydro Terminal Blocks
TB “A” TB “B”
TB “C”

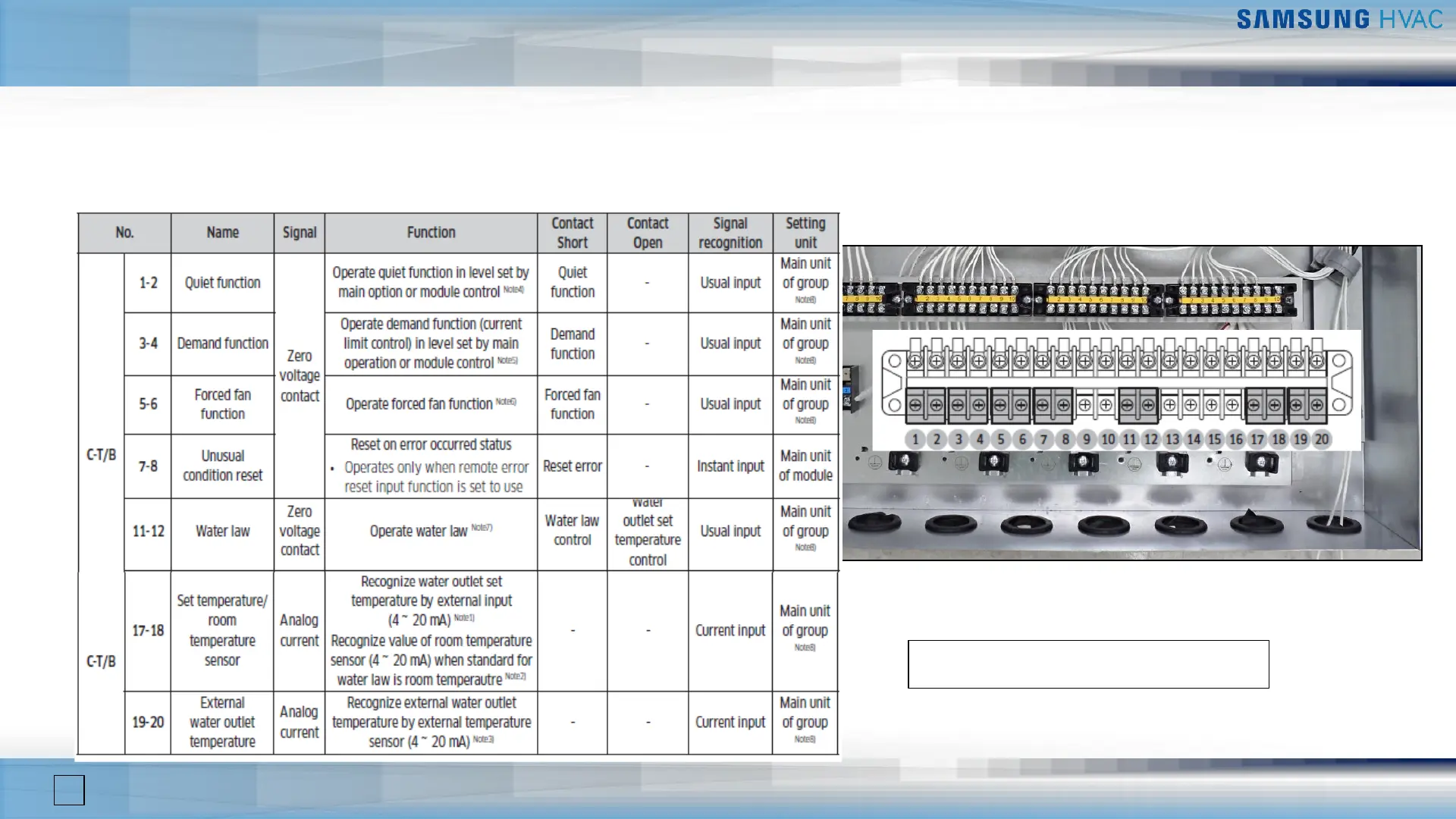

Hydro terminal block “C”
Input terminal designations
1
Note: “Usual Input” = Latched switch function
“Instant Input” = Momentary switch function
