Basic System Commissioning
53

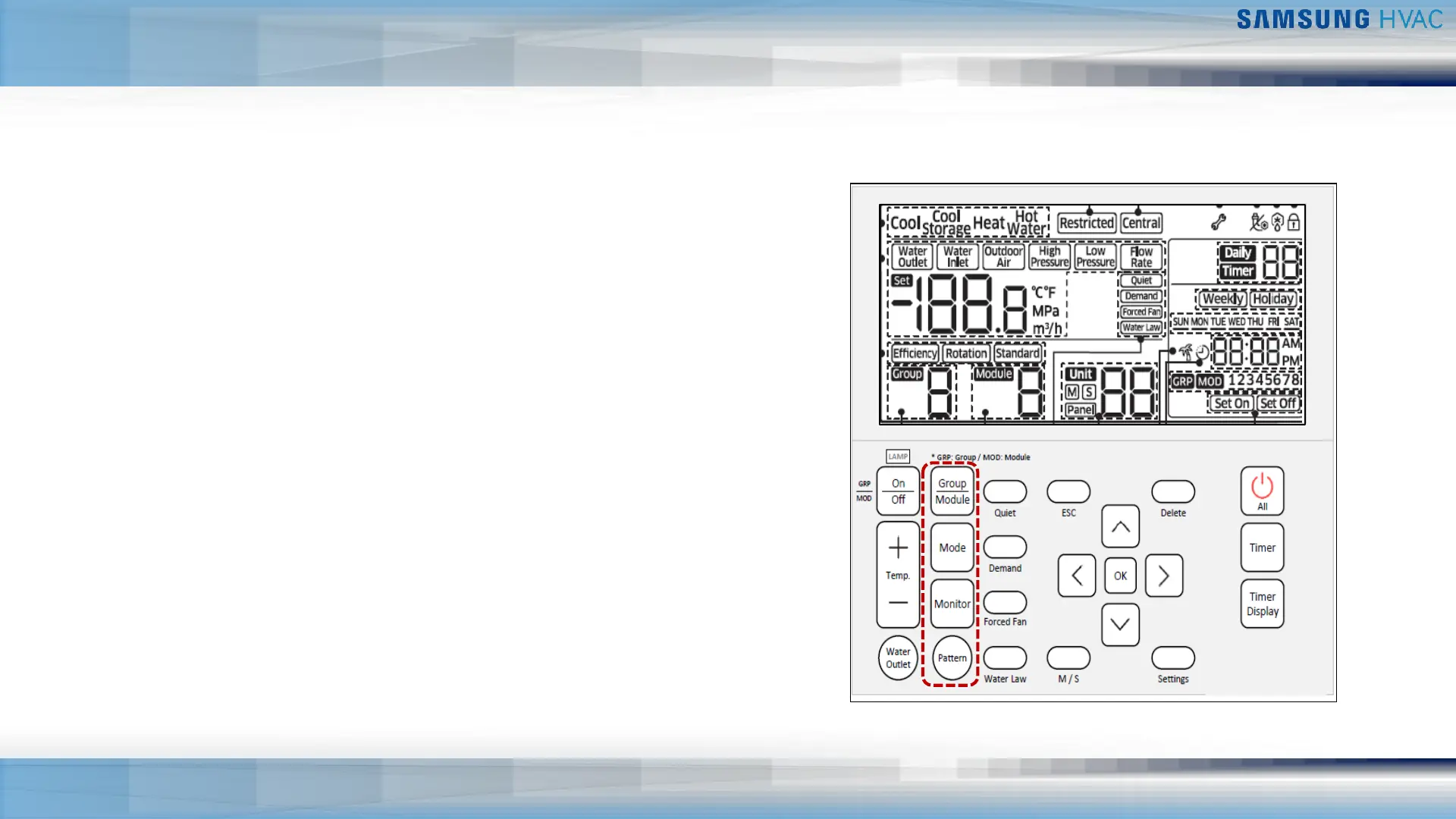

Module Controller
▪ Group/Module select button
▪ Mode: Cool/Cool storage – Heat/Hot water
▪ Monitor: Sequentially displays Water inlet/outlet temperature
Outside ambient temperature - high/Low pressure and flow rate
▪ Pattern: Sets the operation pattern when controlling the chiller by
groups or modules
