10. Installation

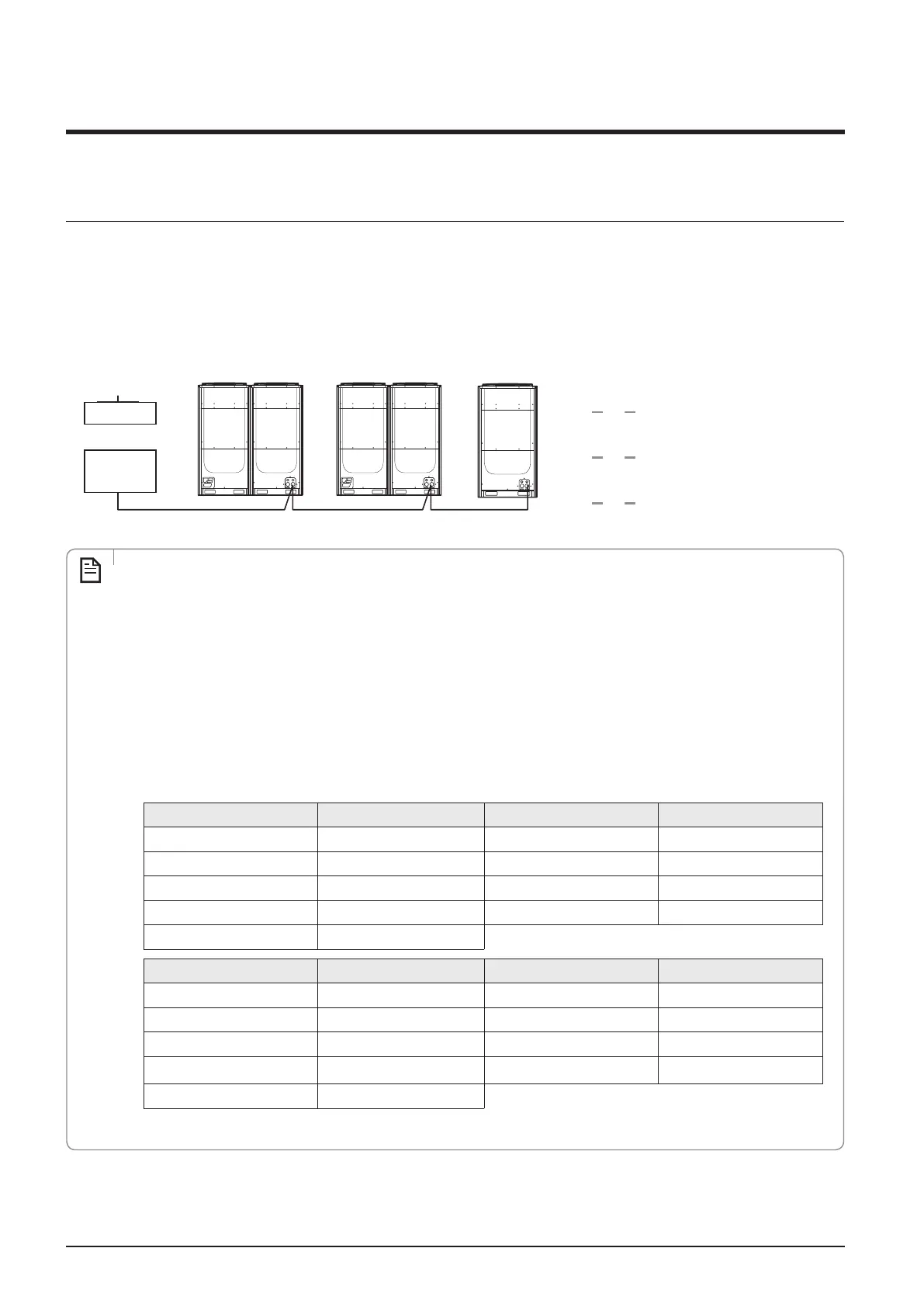

Electrical wiring work
• When installing outdoor units in module, select the power supply cable according to the sum of outdoor unit
capacity. (Refer to the table for each model)
• Power Supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed
flexible cord. (Code designation IEC:60245 IEC 66 / CENELEC: H07RN-F)
Ex.) AM500XVA
AM120XVA : 4 mm
2
AM280XVA : 16 mm
2
AM500XVA : 35 mm
2
①
②
③
AM220XVA AM160XVA AM120XVA
② ③①
ELCB
MCCB+
ELB
or
• This device is intended for the connection to a power supply system with a maximum permissible
system impedance shown in the table (on the left page) at the interface point (power service box) of
the user’s supply.
• The user must ensure that this device is connected only to a power supply system which fulfills the
requirement above. If necessary, the user can ask the public power supply company for the system
impedance at the interface point.
• This equipment complies with IEC 61000-3-12 provided that the short-circuit power Ssc is greater
than or equal to Ssc(*2) at the interface point between the user’s supply and the public system. It is
the responsibility of the installer or user of the equipment to ensure, by consultation with the distri-
bution network operator if necessary, that the equipment is connected only to a supply with a short-
circuit power Ssc greater than or equal to Ssc(*2).
[Ssc (*2)]
Model Ssc [MVA] Model Ssc [MVA]
AM140KXVAG 5.3 AM240KXVAG 13
AM160KXVAG 7.6 AM260KXVAG 13.8
AM180KXVAG 9.3 AM280KXVAG 16.2
AM200KXVAG 8.1 AM300KXVAG 1 7.7
AM220KXVAG 8.6
Model Ssc [MVA] Model Ssc [MVA]
AM140KXVGG 5.3 AM240KXVGG 13
AM160KXVGG 7. 6 AM260KXVGG 13.8
AM180KXVGG 9.3 AM280KXVGG 16.2
AM200KXVGG 8.1 AM080KXVSG 17.7
AM220KXVGG 8.6
NOTE
