10. Installation
144

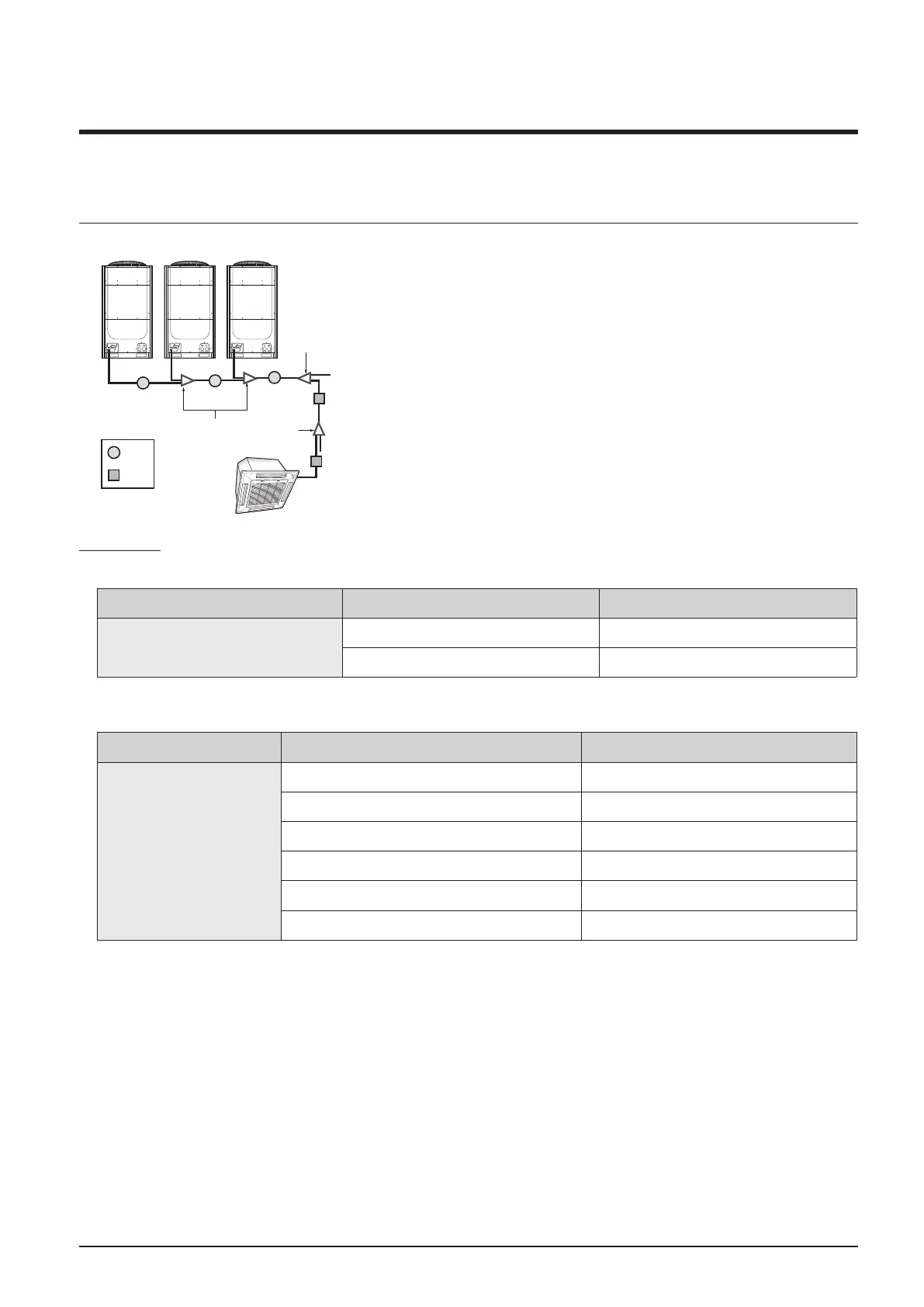

Refrigerant pipe installation
33.6kW 40.0kW
(D)
(E)(C)
(A)
(B)
(3)(2)(1)
61.6kW
Branch joint
 Branch joint between outdoor units (C)
Classification Model name Specification (kW)
Y-joint for outdoor unit (C)
MXJ-TA3419M 135.2kW and below
MXJ-TA4122M Over 140.2kW
 First branch joint (D)
Make a selection according to outdoor unit capacity.
Classification Outdoor unit capacity (kW) Model name of the branch joint
Y-joint (D)
40.0kW and below MXJ-YA2512M
45.0kW MXJ-YA2812M
50.4 kW ~ 67.2 kW MXJ-YA2815M
73.6kW ~ 95.2kW MXJ-YA3419M
101.6kW ~ 135.2kW MXJ-YA4119M
140.2kW and over MXJ-YA4422M
