STEP 4 Check the electrical requirements and cautions
The electrical requirements for the dishwasher are as follows:
• In the United States, install in accordance with the National Electric Code/State and
Municipal codes and/or local codes.
• In Canada, install in accordance with the Canadian Electric Code C22.1-latest edition/
Provincial and Municipal codes and/or local codes.
• For cable direct connections.
- Use exible, armored or non-metallic sheathed, copper wire with a grounding wire
that meets the wiring requirements for your local codes and ordinances.
- Use the strain relief method provided with the wiring junction box or install a U.L.-
listed/CSA-certied clamp connector to the wiring junction box. If using conduit, use
a U.L.-listed/CSA-certied conduit connector.

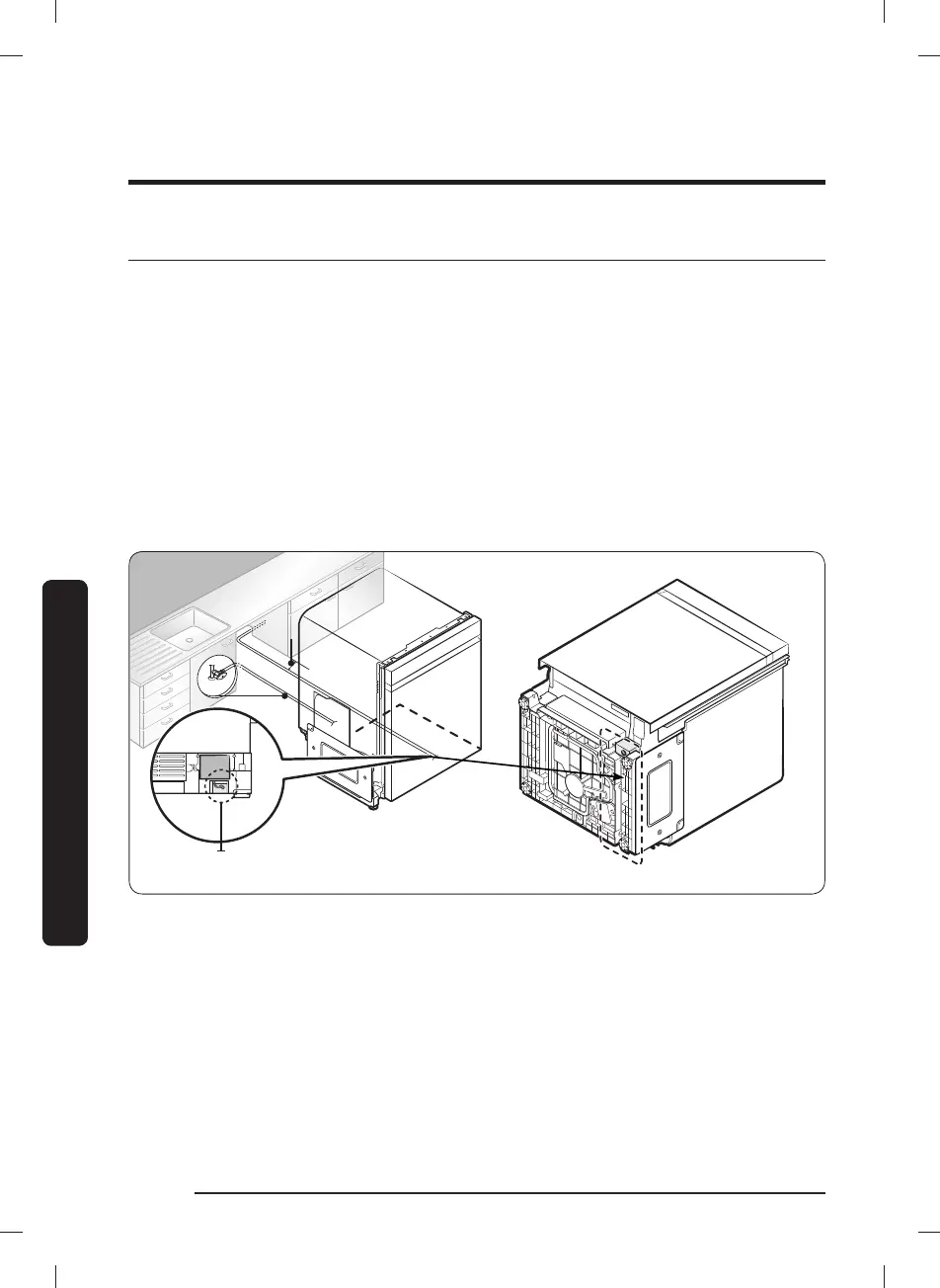

Figure 3
Dishwasher bottom
Dishwasher bottom
Hot Water
Hot Water
Supply Line
Supply Line
Power cable
Power cable
2
2
1
1
/
/
2
2
-3
-3
1
1
/
/
2
2
in.
in.
(64-89 mm)
(64-89 mm)
Power cable channel
Power cable channel
