Disassembly and Assembly Instructions
11-2
This Document can not be used without Samsung's authorization
1)
Beware of scratch and damage in the mechanical
component.
2)
Caution not to damage LOWER part and FPCB while
separate part
1)
Beware of scratch and damage in the mechanical
component.
2)
Caution not to damage LOWER part and FPCB while
separate part
1)
The tape is removed with circular tweezers
2)
Beware of scratch and damage of FPCB.
1)
The tape is removed with circular tweezers
2)
Beware of scratch and damage of FPCB.
5
6
7
8

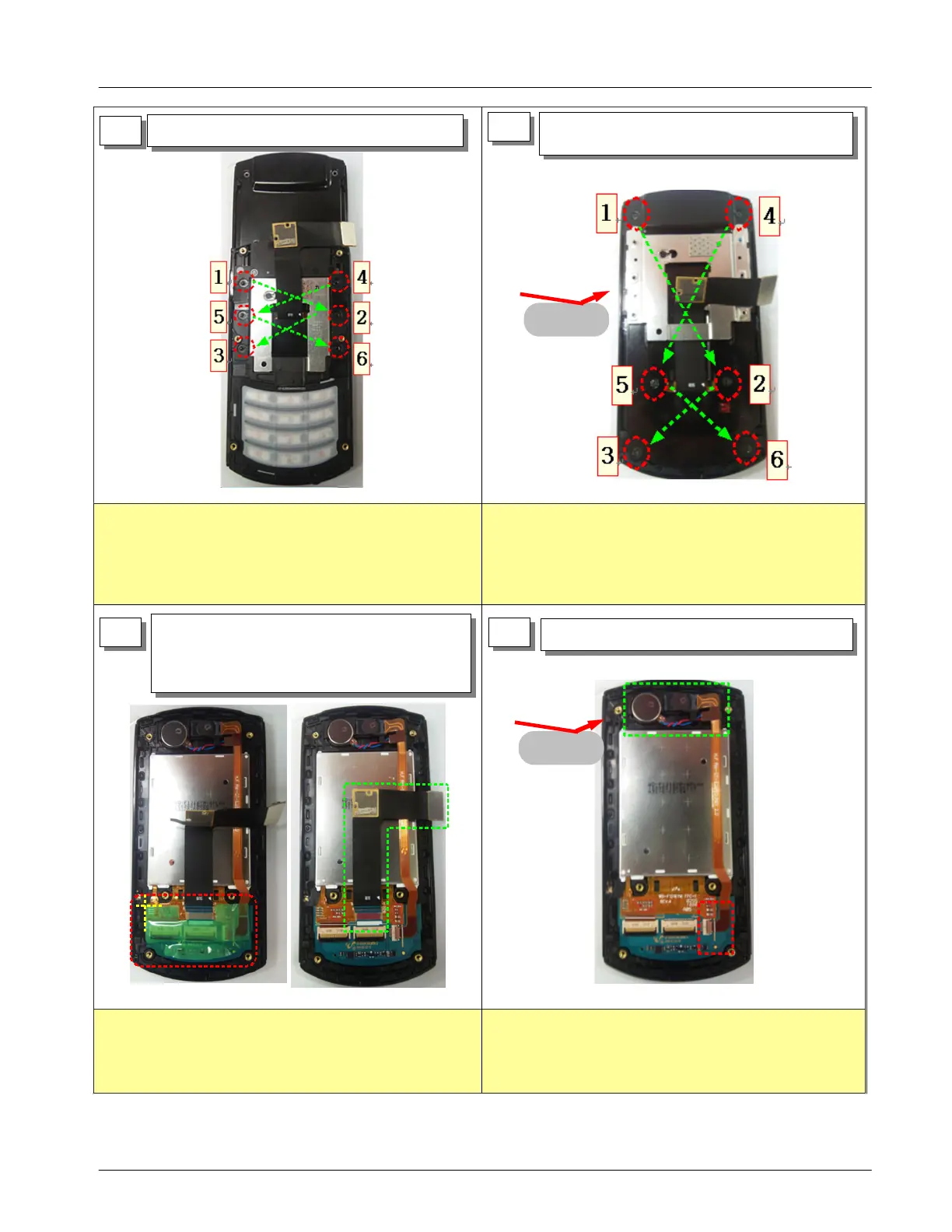

1)
Unscrew below
6
points
1)
Unscrew below
6
points
3)
Separate LOWER after hinge slide down
1)
Remove the tape attached on SUBPBA
Ass'y.
2)
Take off Silde FPCB
1)
Take off MOTTOR/Receiver FPCB.
