Samsung HT-C460 - Speaker Components; Connecting the Speakers

16 English
Connections
(L) (R)(L) (R)
FRONT REAR
CENTRE
SUBWOOFER
SPEAKER CABLE

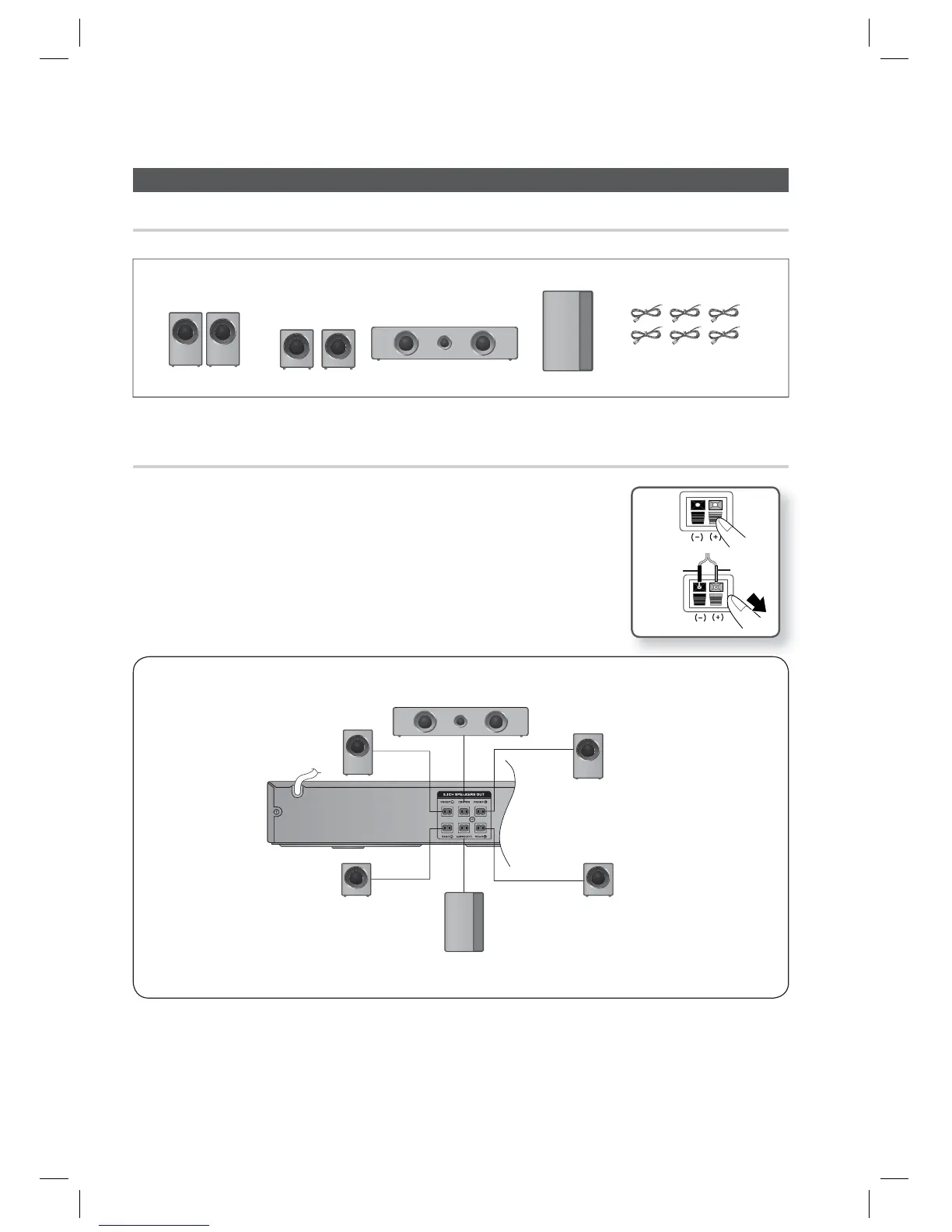

Connecting the Speakers
Speaker Components
Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the red
terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.
1.
2.
3.
Black
Red
DIGITAL
AUDIO IN
OPTICAL
HDMI OUT
AUX IN
CO
M
VIDEO
OUT
Front Speaker (R)
Subwoofer
Rear Speaker (R) Rear Speaker (L)
Front Speaker (L)
Centre Speaker
