Samsung Electronics 3-3
Disassembly & Reassembly

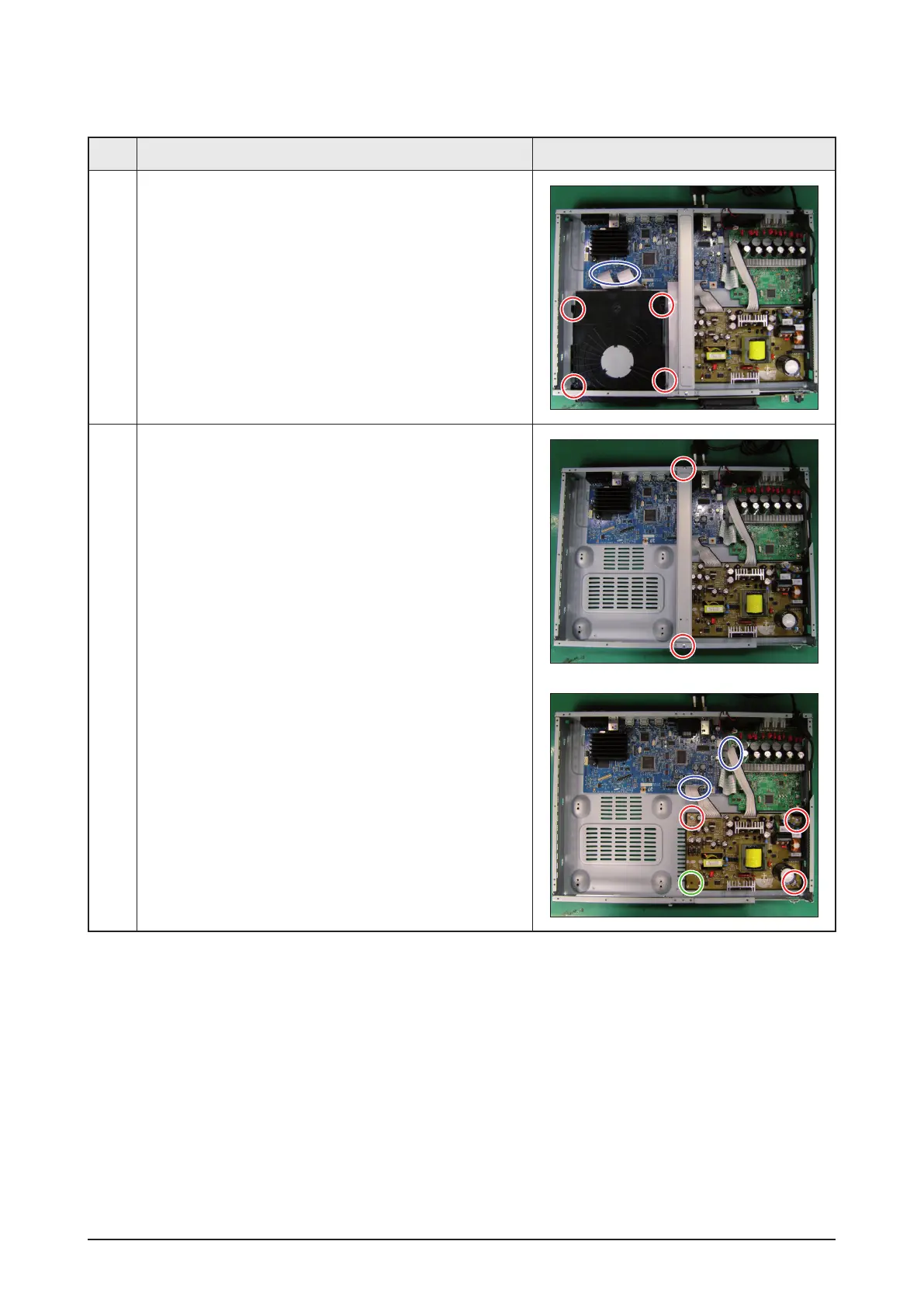

No. Description Description Photo
4 1) Unfasten 4 screws, disconnect FPC wire, and remove
ASSY-DECK.
5 1) Unfasten 2 screws, then remove BRACKET-TOP.
2) Unfasten 3 screws, loosen 1 hook, and disconnect
2 wires and remove ASSY-SMPS and POWER-
CORD.
To Next Page
