18 English

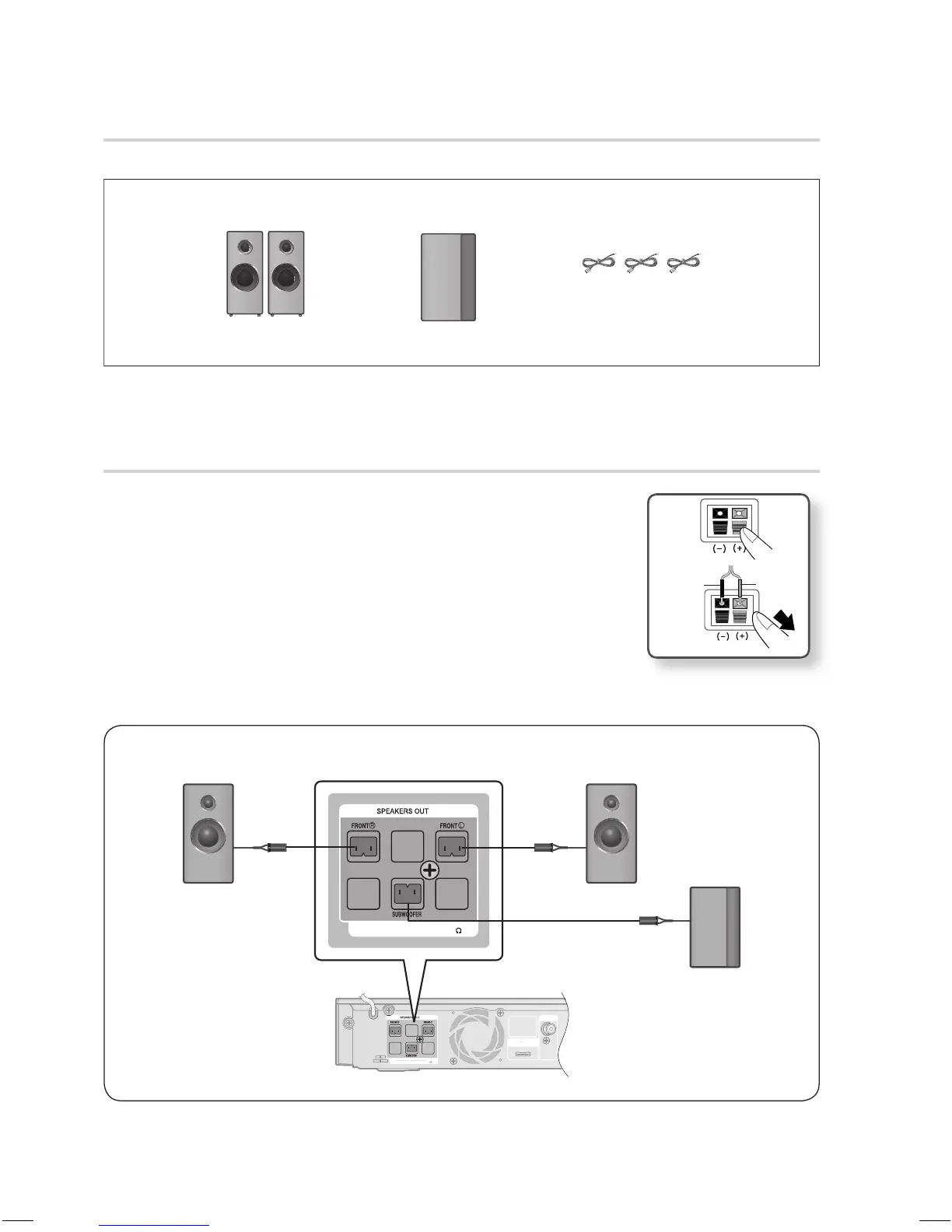

Connections
FRONT
SUBWOOFER
SPEAKER CABLE
Speaker Components
(L) (R)
Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching
the colours of the speaker plugs to the speaker jacks.
1.
2.
3.
Black
Red
SPEAKER IMPEDANCE : 3
FM ANT.
iPod
Front Speaker (R)
Subwoofer
Front Speaker (L)
HT-C5200_ELS_ENG_0303.indd 18HT-C5200_ELS_ENG_0303.indd 18 2010-03-03 9:25:012010-03-03 9:25:01
