Samsung HT-C730 - Rear Panel

12 English
Getting Started

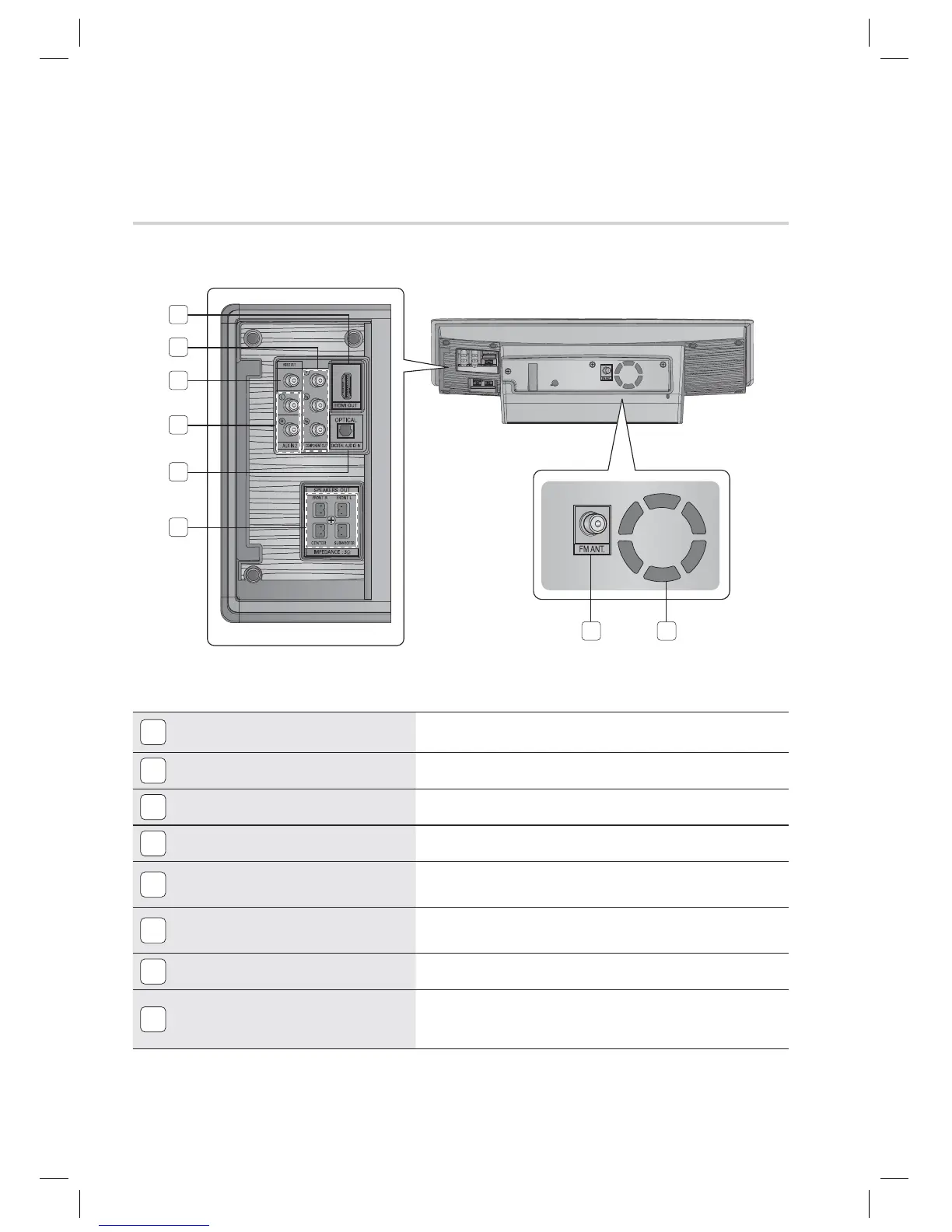

Rear Panel
7
3
4
6
5
2
1
8
1
HDMI OUT JACK
Using an HDMI cable, connect this HDMI output jack to the HDMI input jack
on your TV for the best quality picture.
2
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
3
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
4
AUX IN 2 JACKS
Connect to the 2CH Analogue output of an external device (such as a VCR).
5
EXTERNAL DIGITAL OPTICAL IN JACK
(DIGITAL AUDIO IN)
Use this to connect external equipment capable of digital output.
6
3.1 CHANNEL SPEAKER OUTPUT
CONNECTORS
Connect the front, centre and subwoofer speakers.
7
FM ANTENNA JACK
Connect the FM antenna.
8
COOLING FAN
The fan always revolves when the power is on. Ensure a minimum
of 10cm of clear space on all sides of the fan when installing the
product.
