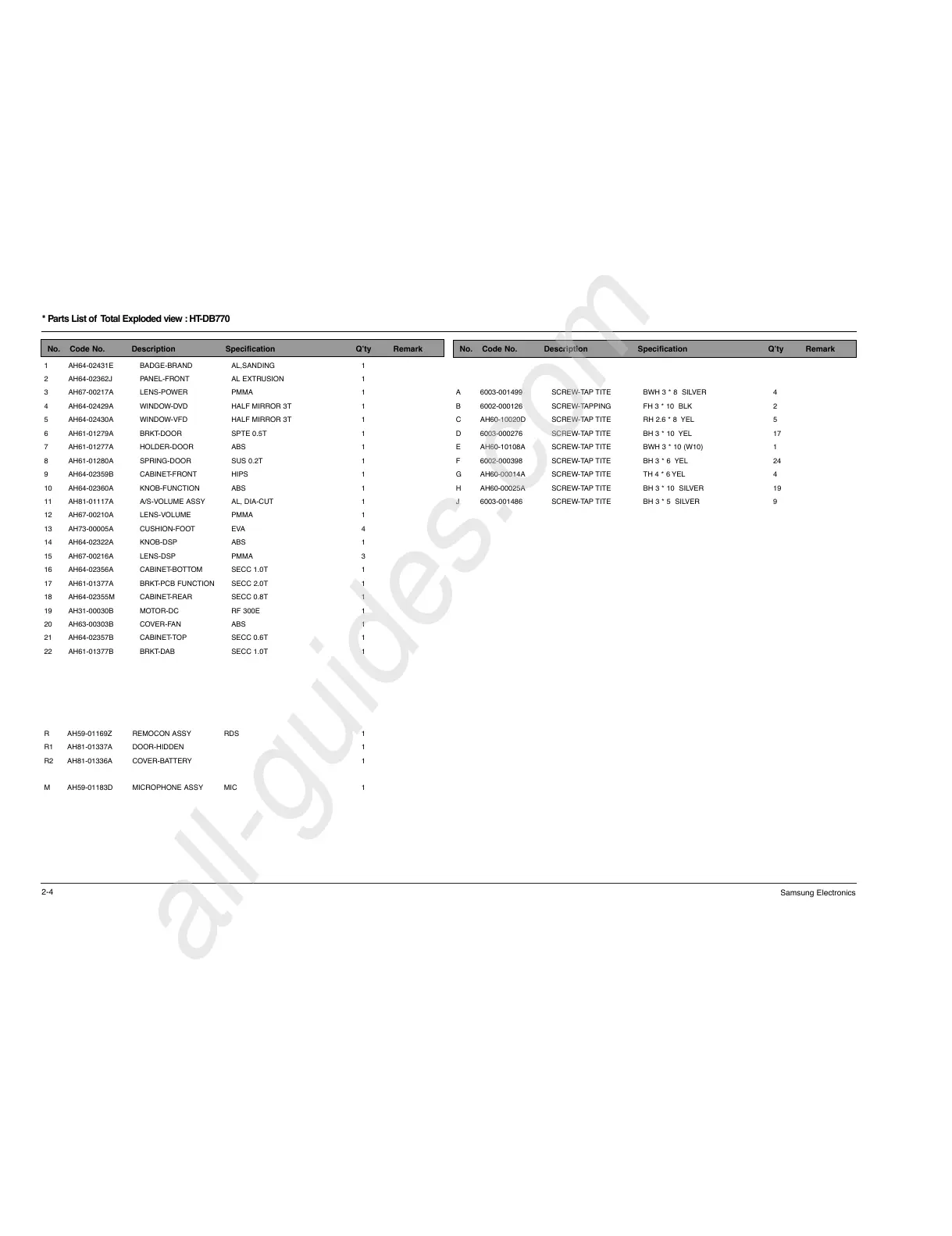

* Parts List of Total Exploded view : HT-DB770
No. Code No. Description Specification Q’ty Remark
1 AH64-02431E BADGE-BRAND AL,SANDING 1
2 AH64-02362J PANEL-FRONT AL EXTRUSION 1
3 AH67-00217A LENS-POWER PMMA 1
4 AH64-02429A WINDOW-DVD HALF MIRROR 3T 1
5 AH64-02430A WINDOW-VFD HALF MIRROR 3T 1
6 AH61-01279A BRKT-DOOR SPTE 0.5T 1
7 AH61-01277A HOLDER-DOOR ABS 1
8 AH61-01280A SPRING-DOOR SUS 0.2T 1
9 AH64-02359B CABINET-FRONT HIPS 1
10 AH64-02360A KNOB-FUNCTION ABS 1
11 AH81-01117A A/S-VOLUME ASSY AL, DIA-CUT 1
12 AH67-00210A LENS-VOLUME PMMA 1
13 AH73-00005A CUSHION-FOOT EVA 4
14 AH64-02322A KNOB-DSP ABS 1
15 AH67-00216A LENS-DSP PMMA 3
16 AH64-02356A CABINET-BOTTOM SECC 1.0T 1
17 AH61-01377A BRKT-PCB FUNCTION SECC 2.0T 1
18 AH64-02355M CABINET-REAR SECC 0.8T 1
19 AH31-00030B MOTOR-DC RF 300E 1
20 AH63-00303B COVER-FAN ABS 1
21 AH64-02357B CABINET-TOP SECC 0.6T 1
22 AH61-01377B BRKT-DAB SECC 1.0T 1
R AH59-01169Z REMOCON ASSY RDS 1
R1 AH81-01337A DOOR-HIDDEN 1
R2 AH81-01336A COVER-BATTERY 1
MAH59-01183D MICROPHONE ASSY MIC 1
A 6003-001499 SCREW-TAP TITE BWH 3 * 8 SILVER 4
B 6002-000126 SCREW-TAPPING FH 3 * 10 BLK 2
C AH60-10020D SCREW-TAP TITE RH 2.6 * 8 YEL 5
D 6003-000276 SCREW-TAP TITE BH 3 * 10 YEL 17
E AH60-10108A SCREW-TAP TITE BWH 3 * 10 (W10) 1
F 6002-000398 SCREW-TAP TITE BH 3 * 6 YEL 24
G AH60-00014A SCREW-TAP TITE TH 4 * 6 YEL 4
H AH60-00025A SCREW-TAP TITE BH 3 * 10 SILVER 19
J 6003-001486 SCREW-TAP TITE BH 3 * 5 SILVER 9
