ENG - 5
03 CONNECTING THE SOUNDBAR
Connecting Electrical Power

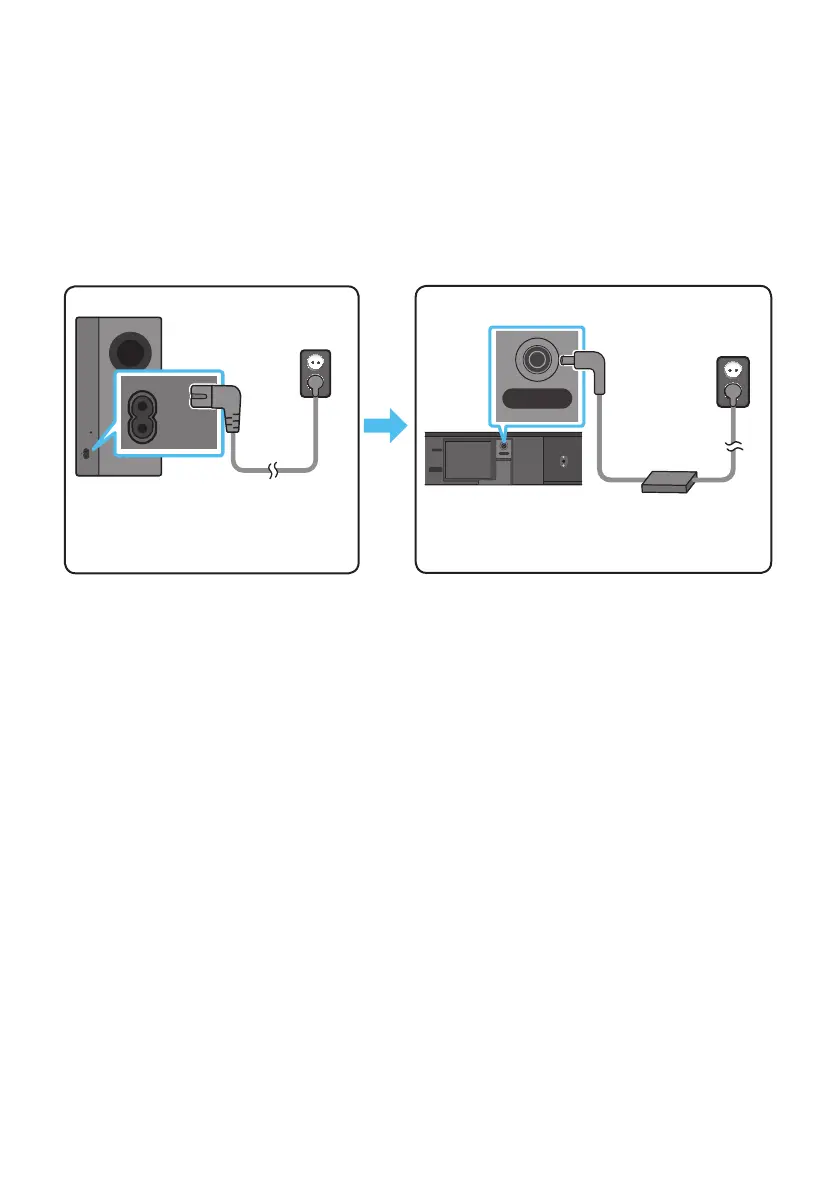

Use the power components (1, 2, 3) to connect the units to electrical outlets in the following order:
1.) Subwoofer  2.) Soundbar Main Unit. See the illustrations below.
• For more information about the required electrical power and power consumption, refer to the
label attached to the product. (Label : Bottom of the Soundbar Main Unit)
HDMI OUT
(TV-ARC)
DC 24V
DC 24V
HDMI IN
DC 24V
Bottom of the
Soundbar Main Unit
2 AC/DC Adapter
3 Power Cord
Connecting
Electrical Power
ID SET
POWER
POWER
Rear of Subwoofer
1 Power Cord
Connecting
Electrical Power
• Make sure to rest the AC/DC Adapter at on a table or the oor. If you place the AC/DC Adapter so
that it is hanging with the AC cord input facing upwards, water or other foreign substances could
enter the Adapter and cause the Adapter to malfunction.
