Samsung LN32D405E3D - Page 33

33
English
05 Other Information

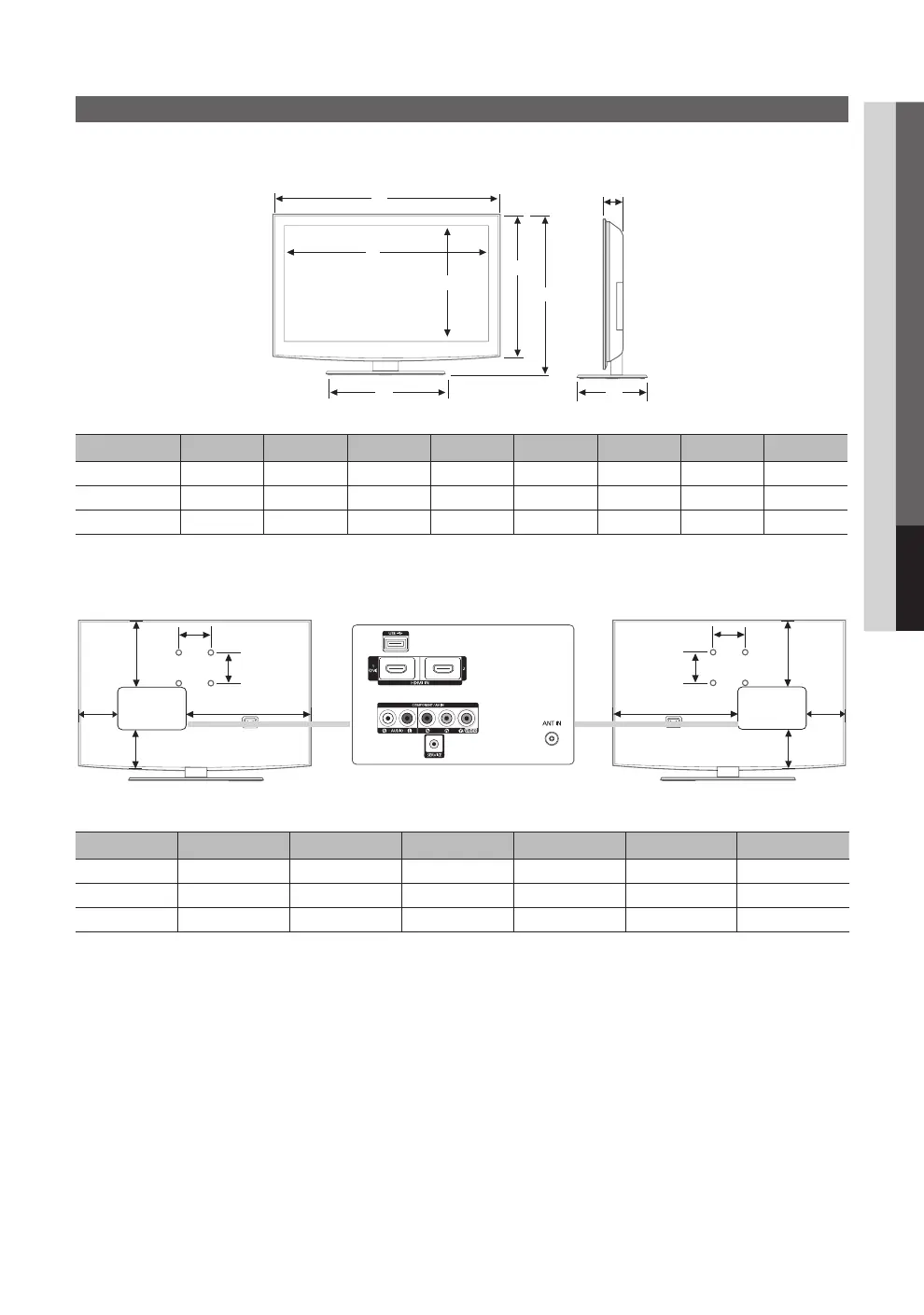

Dimensions
■ FRONT VIEW / SIDE VIEW
(Unit: inches )
Model name
1 2 3 4 5 6 7 8
UN32D4005BD 29.7 27.5 15.5 18.2 17.8 19.6 1.8 7.1
UN40D5005BF 37.1 34.9 19.7 18.8 22.1 23.7 2.0 8.6
LN32D405E3D 30.8 27.5 15.5 18.1 19.7 21.4 3.4 7.1
■ JACK PANEL DETAIL / REAR VIEW
(Unit: inches )
Model name
1 2 3 4 5 6
UN32D4005BD 7.2 3.1 5.5 19.5 7.8 7.8
UN40D5005BF 9.3 6.2 7.7 23.8 7.8 7.8
LN32D405E3D 9.2 1.9 4.9 21.3 7.8 7.8
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
© 2011 Samsung Electronics America, Inc
1
2
3
4
5
6
7
8
1
2
3
4
5
6
1
2
3
4
5
6
[UD5003-ZA]BN68-03777A-ENG.indb 33 2011-05-06 �� 11:04:29
