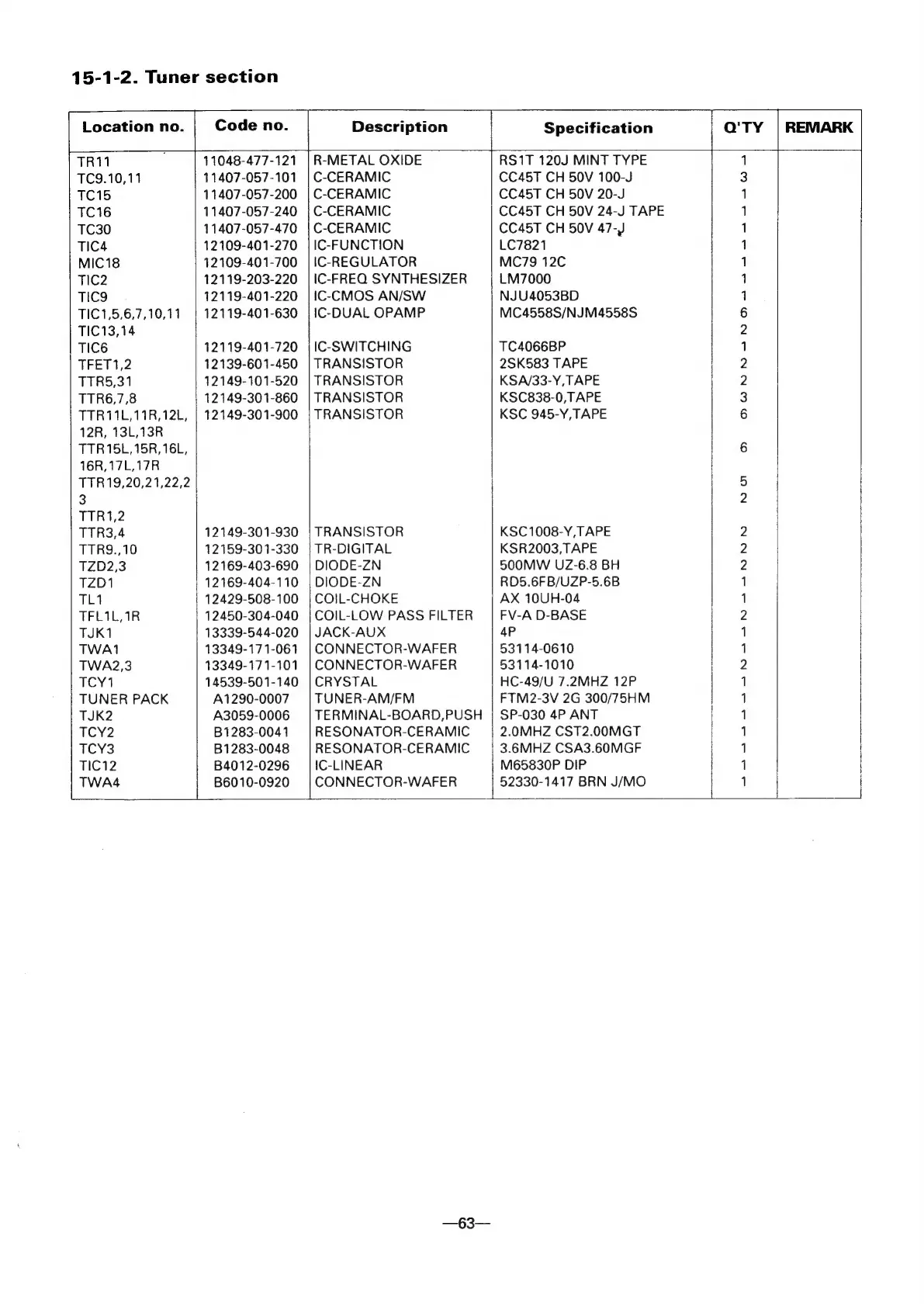

15-1-2. Tuner section
—_
Location no. | Code no. Description Specification Q'TY | REMARK
TR11 11048-477-121 | R-METAL OXIDE RS1iT 120J MINT TYPE 1
TC9.10,11 11407-057-101 | C-CERAMIC CC45T CH 50V 100-J 3
TC15 11407-057-200 | C-CERAMIC CC45T CH 50V 20-J 1
TC16 11407-057-240 | C-CERAMIC CC45T CH 50V 24-J TAPE 1
TC30 11407-057-470 | C-CERAMIC CC45T CH 50V 47-J 1
TIC4 12109-401-270 |IC-FUNCTION LC7821 1
MIC18 12109-401-700 |IC-REGULATOR MC79 12C 1
TIC2 12119-203-220 | IC-FREQ SYNTHESIZER LM7000 1
TICS 12119-401-220 |IC-CMOS AN/SW NJU4053BD 1
TIC1,5,6,7,10,11 | 12119-401-630 |1C-DUAL OPAMP MC4558S/NJM4558S 6
TIC 13,14 2
TIC6 12119-401-720 | IC-SWITCHING TC4066BP 1
TFET1,2 12139-601-450 | TRANSISTOR 2SK583 TAPE 2
TTR5,31 12149-101-520 | TRANSISTOR KSA/33-Y, TAPE 2
TTR6,7,8 12149-301-860 | TRANSISTOR KSC838-0,TAPE 3
TTR11L,11R,12L, | 12149-301-900 | TRANSISTOR KSC 945-Y,TAPE 6
12R, 13L,13R
TTR15L,15R, 16L, 6
16R,17L,17R
TTR19,20,21,22,2 5
3 2
TTR1,2
TTR3,4 12149-301-930 | TRANSISTOR KSC1008-Y, TAPE 2
TTR9.,10 12159-301-330 | TR-DIGITAL KSR2003, TAPE 2
TZD2,3 12169-403-690 | DIODE-ZN 500MW UZ-6.8 BH 2
TZD1 12169-404-110 | DIODE-ZN RD5.6FB/UZP-5.6B 1
TL1 12429-508-100 | COIL-CHOKE AX 10UH-04 1
TFLIL,1R 12450-304-040 | COIL-LOW PASS FILTER FV-A D-BASE 2
TJK1 13339-544-020 | JACK-AUX 4p 1
TWA1 13349-171-061 | CONNECTOR-WAFER 53114-0610 1
TWA2,3 13349-171-101 | CONNECTOR-WAFER 53114-1010 2
TCY1 14539-501-140 | CRYSTAL HC-49/U 7.2MHZ 12P 1
TUNER PACK A1290-0007. | TUNER-AM/FM FTM2-3V 2G 300/75HM 1
TJK2 A3059-0006 | TERMINAL-BOARD,PUSH | SP-030 4P ANT 1
TCY2 B1283-0041 RESONATOR-CERAMIC 2.0MHZ CST2.00MGT 1
TCY3 B1283-0048 RESONATOR-CERAMIC 3.6MHZ CSA3.60MGF 1
TIC12 B4012-0296 IC-LINEAR M65830P DIP 1
TWA4 B6010-0920 | CONNECTOR-WAFER 52330-1417 BRN J/MO 1
