Samsung MAX-485 - Page 68

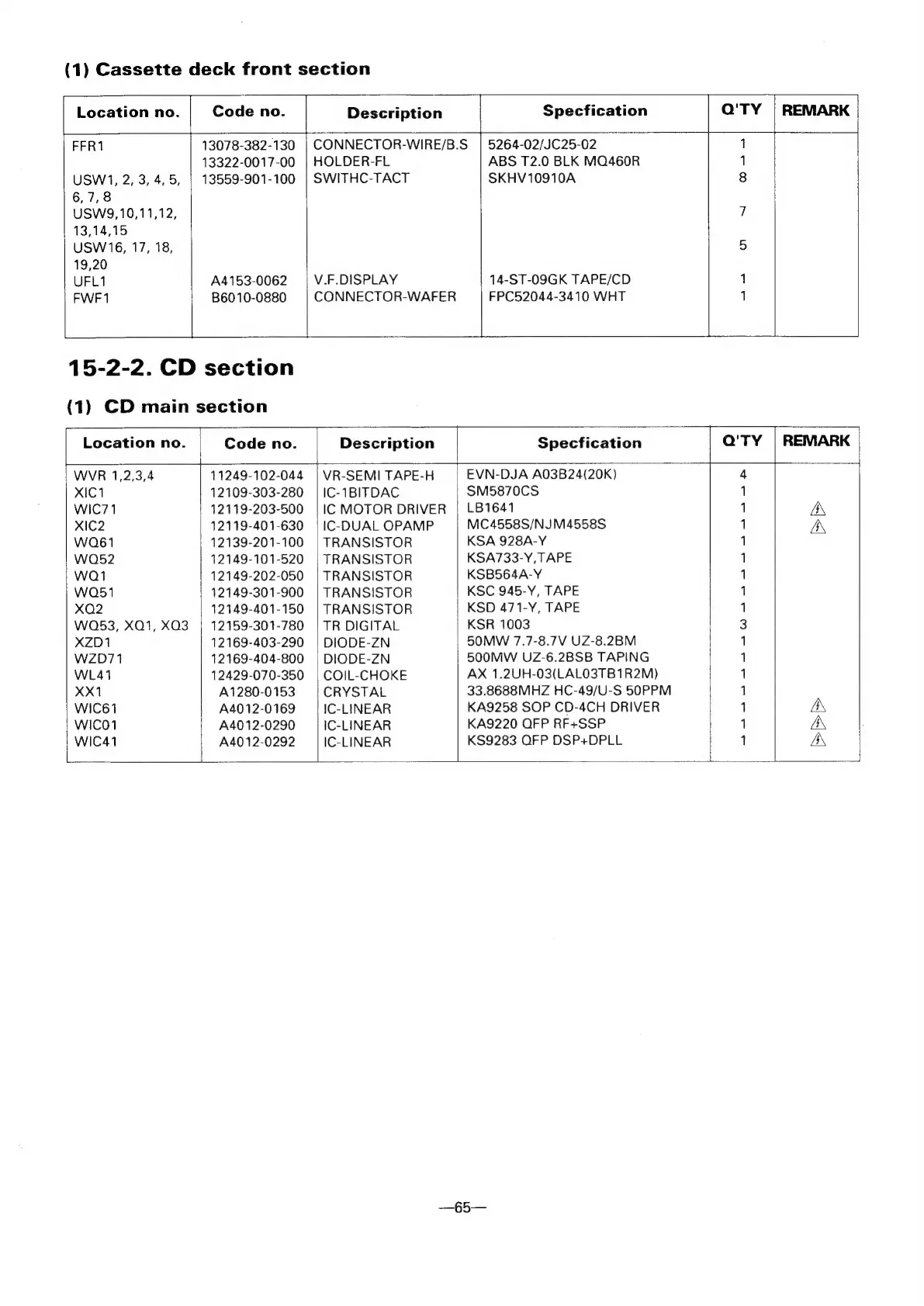

(1) Cassette deck front section
Location no. Code no. Description Specfication Q'TY | REMARK
FFR1 13078-382-130 | CONNECTOR-WIRE/B.S_ | 5264-02/JC25-02 1
13322-0017-00 | HOLDER-FL ABS T2.0 BLK MQ460R 1
USW1, 2, 3, 4,5, | 13559-901-100 | SWITHC-TACT SKHV10910A 8
6,7,8
USWS9,10,11,12, 7
13,14,15
USW16, 17, 18, 5
19,20
UFL1 A4153-0062 V.F.DISPLAY 14-ST-09GK TAPE/CD 1
FWF1 B6010-0880 CONNECTOR-WAFER FPC52044-3410 WHT 1
15-2-2. CD section
(1) CD main section
Location no. Code no. Description Specfication Q'TY | REMARK
WVR 1,2,3,4 11249-102-044 I VR-SEMI TAPE-H EVN-DJA A03B24(20K) 4
XIC1 12109-303-280 | IC-1BITDAC SM5870CS 1
WIC71 12119-203-500 | IC MOTOR DRIVER | LB1641 1 ux
XIC2 12119-401-630 | IC-DUAL OPAMP MC4558S/NJM4558S 1 JN
W061 12139-201-100 | TRANSISTOR KSA 928A-Y 1
WQ52 12149-101-520 | TRANSISTOR KSA733-Y,TAPE 1
WwWQ1 12149-202-050 | TRANSISTOR KSB564A-Y 1
WOQ51 12149-301-900 | TRANSISTOR KSC 945-Y, TAPE 1
XQ2 12149-401-150 | TRANSISTOR KSD 471-Y, TAPE 1
WO53, XQ1, XO3_ | 12159-301-780 | TR DIGITAL KSR 1003 3
XZD1 12169-403-290 | DIODE-ZN 50MW 7.7-8.7V UZ-8.2BM 1
W2ZD71 12169-404-800 | DIODE-ZN 500MW UZ-6.2BSB TAPING 1
WL41 12429-070-350 | COIL-CHOKE AX 1.2UH-03(LAL03TB1R2M) 1
XX1 A1280-0153 CRYSTAL 33.8688MHZ HC-49/U-S 50PPM 1
WIC61 A4012-0169 IC-LINEAR KA9258 SOP CD-4CH DRIVER 1 A
WICO1 A4012-0290 IC-LINEAR KA9220 QFP RF+SSP 1 AN
WIC41 A4012-0292 IC-LINEAR KS9283 QFP DSP+DPLL 1 AN
