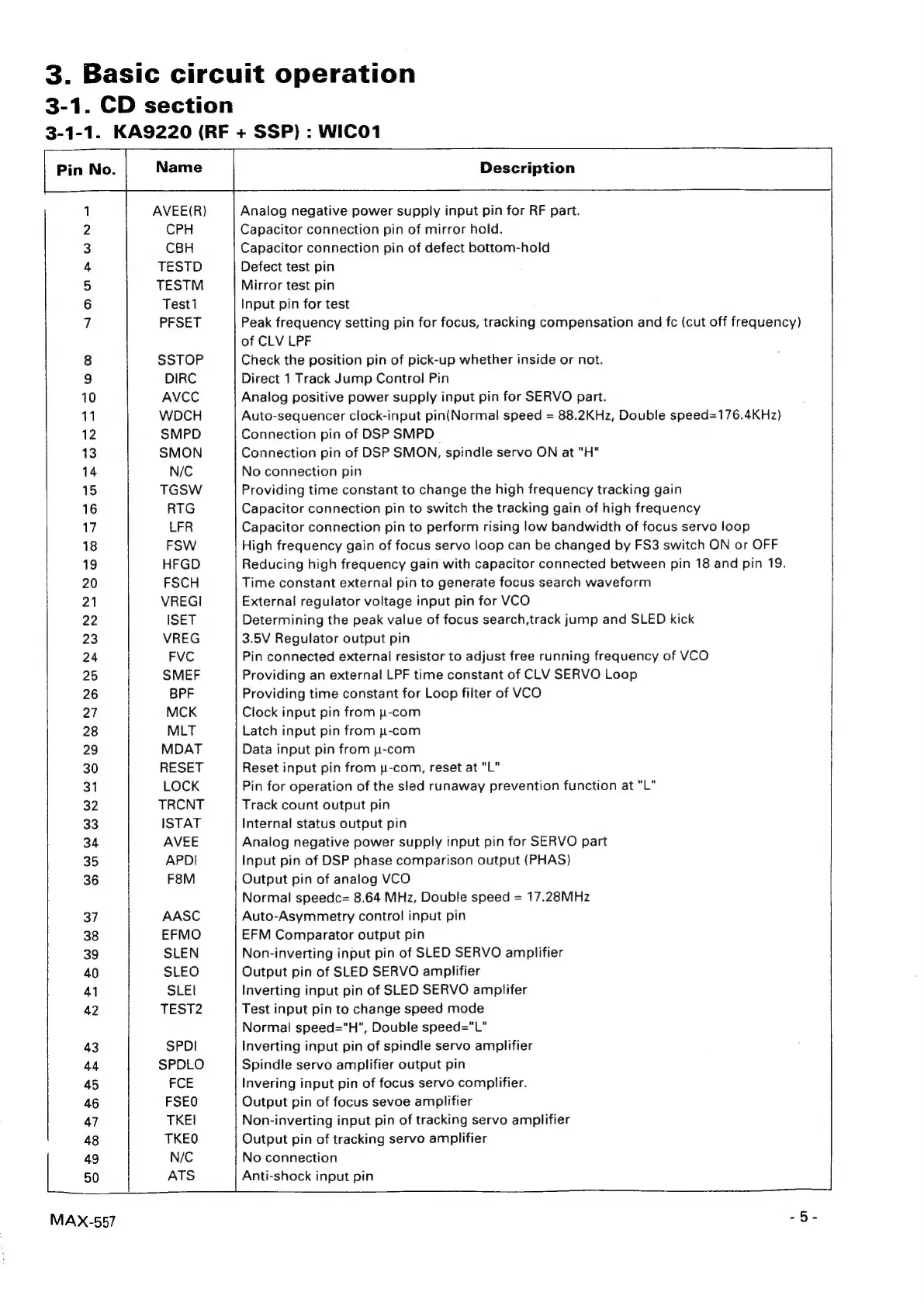

3.
Basic
circuit
operation
3-1.
CD
section
3-1-1.
KA9220
(RF
+
SSP)
:
WICO1
Description
1
AVEE(R)
Analog
negative
power
supply
input
pin
for
RF
part.
2
CPH
Capacitor
connection
pin
of
mirror
hold.
3
CBH
Capacitor
connection
pin
of
defect
bottom-hold
4
TESTD
Defect
test
pin
5
TESTM
Mirror
test
pin
6
Test
Input
pin
for
test
7
PFSET
Peak
frequency
setting
pin
for
focus,
tracking
compensation
and
fc
(cut
off
frequency)
of
CLV
LPF
8
SSTOP
Check
the
position
pin
of
pick-up
whether
inside
or
not.
9
DIRC
Direct
1
Track
Jump
Control
Pin
10
AVCC
Analog
positive
power
supply
input
pin
for
SERVO
part.
11
WDCH
Auto-sequencer
clock-input
pin(Normal
speed
=
88.2KHz,
Double
speed=176.4KHz)
12
SMPD
Connection
pin
of
DSP
SMPD
13
SMON
Connection
pin
of
DSP
SMON,
spindle
servo
ON
at
"H"
14
N/C
No
connection
pin
15
TGSW
Providing
time
constant
to
change
the
high
frequency
tracking
gain
16
RTG
Capacitor
connection
pin
to
switch
the
tracking
gain
of
high
frequency
17
LFR
Capacitor
connection
pin
to
perform
rising
low
bandwidth
of
focus
servo
Joop
18
FSW
High
frequency
gain
of
focus
servo
loop
can
be
changed
by
FS3
switch
ON
or
OFF
19
HFGD
Reducing
high
frequency
gain
with
capacitor
connected
between
pin
18
and
pin
19.
20
FSCH
Time
constant
external
pin
to
generate
focus
search
waveform
21
VREG!
External
regulator
voltage
input
pin
for
VCO
22
ISET
Determining
the
peak
value
of
focus
search,track
jump
and
SLED
kick
23
VREG
3.5V
Regulator
output
pin
24
FVC
Pin
connected
external
resistor
to
adjust
free
running
frequency
of
VCO
25
SMEF
Providing
an
external
LPF
time
constant
of
CLV
SERVO
Loop
26
BPF
Providing
time
constant
for
Loop
filter
of
VCO
27
MCK
Clock
input
pin
from
u-com
28
MLT
Latch
input
pin
from
p-com
29
MDAT
Data
input
pin
from
u-com
30
RESET
Reset
input
pin
from
u-com,
reset
at
"L”
31
LOCK
Pin
for
operation
of
the
sled
runaway
prevention
function
at
"L"
32
TRCNT
Track
count
output
pin
33
ISTAT
Internal
status
output
pin
34
AVEE
Analog
negative
power
supply
input
pin
for
SERVO
part
35
APDI
Input
pin
of
DSP
phase
comparison
output
(PHAS)
36
F8M
Output
pin
of
analog
VCO
Normal
speedc=
8.64
MHz,
Double
speed
=
17.28MHz
37
AASC
Auto-Asymmetry
control
input
pin
38
EFMO
EFM
Comparator
output
pin
39
SLEN
Non-inverting
input
pin
of
SLED
SERVO
amplifier
40
SLEO
Output
pin
of
SLED
SERVO
amplifier
41
SLEI
Inverting
input
pin
of
SLED
SERVO
amplifer
42
TEST2
Test
input
pin
to
change
speed
mode
Normal
speed="H",
Double
speed="L"
43
SPDI
Inverting
input
pin
of
spindle
servo
amplifier
44
SPDLO
Spindle
servo
amplifier
output
pin
45
FCE
Invering
input
pin
of
focus
servo
complifier.
46
FSEO
Output
pin
of
focus
sevoe
amplifier
47
TKEI
Non-inverting
input
pin
of
tracking
servo amplifier
48
TKEO
Output
pin
of
tracking
servo
amplifier
49
N/C
No
connection
50
ATS
Anti-shock
input
pin
MAX-557
-5-
