Samsung MAX-800

Figure 3-6
Figure 3-7
3-6 Samsung Electronics
Disassembly and Reassembly
* Reinstall in reverse order.

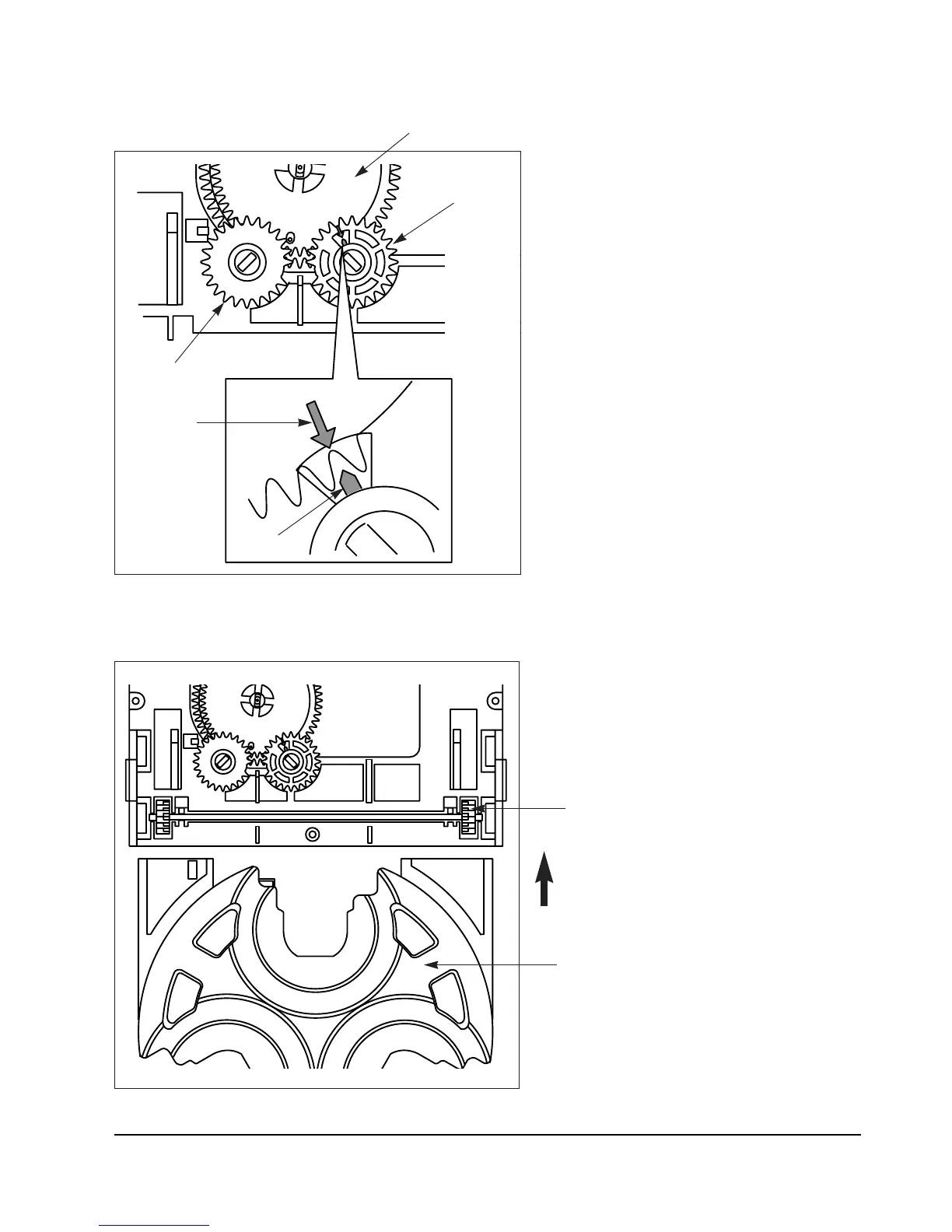

* Align the Gear-Cam with the Gear-Tray as
shown ing Figure 3-6, then mount the Tray-Disc.
* When assembling the Tray-Disc,take extreme
care not to engage with Gear-Synchro.
Gear-Cam
Gear-Cam
Gear-Cam
Gear-Cam
Timming Point
Gear-Cam
Gear-Synchro
Gear-Disc
Insert
