8. Select a place where the structure can support the weight of the MCU and indoor units that also have strong vibration
resistance without any slope.
If the structure is not strong enough, MCU may fall down and cause injury.
*Height (mm)
MCU-S6*
199
MCU-S4*
MCU-S2*
MCU-S1*
MCU-S12*
298
MCU-S8*
Ceiling textile
Ceiling
MCU
1.5m(5') or
less
1.5m(5') or less
Pipe hanger
Refrigerant pipe
Do not install the MCU to close to the ceiling textile[minimum 50mm(2")]
76mm (3")
or more
*Height
9. Select an installation location with enough space for service and repair.

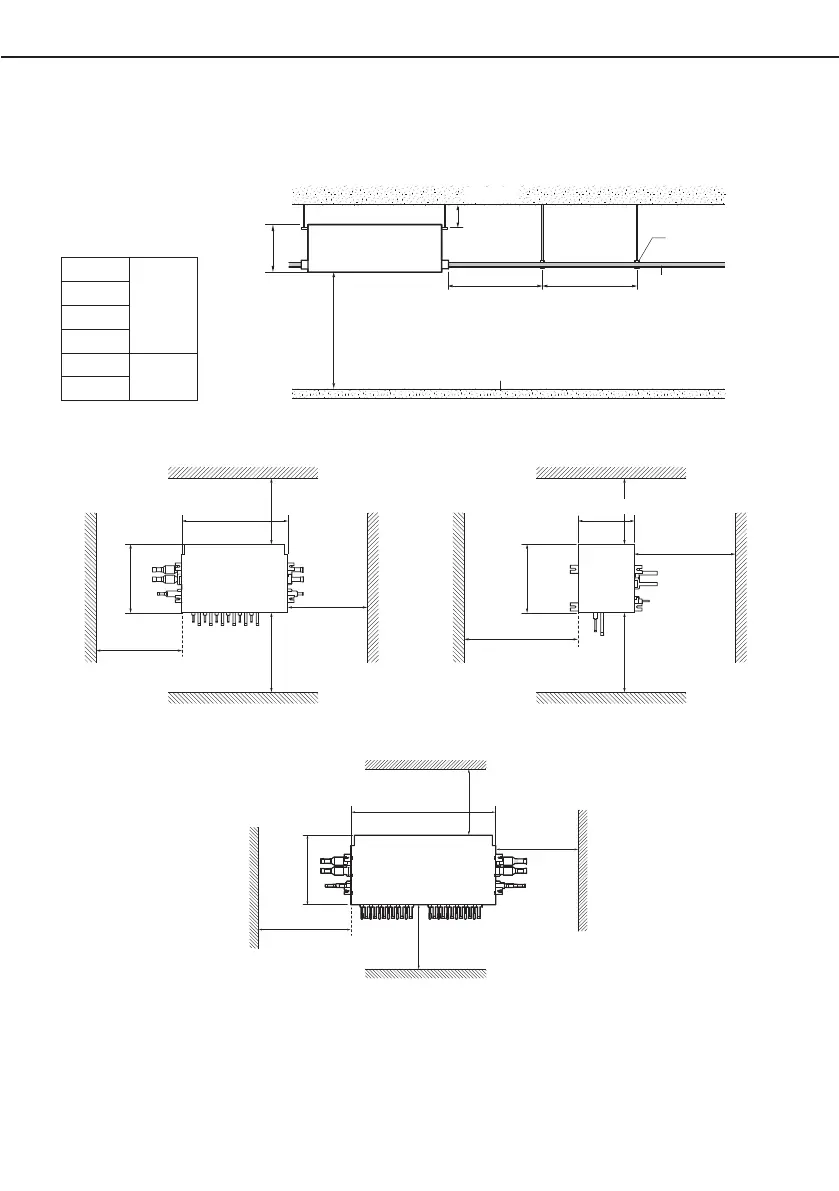

Leave enough space between adjacent walls and structures. Refer to the examples below.
500 mm
(20") or more
MCU
400 mm (16") or more
700 mm (28")
or more
500 mm
(20") or more
728 mm (28.7")
469 mm (18.5")
400 mm (16")
or more
MCU
400 mm (16") or more
700 mm (28")
or more
500 mm
(20") or more
338 mm (13.3")
409 mm (16.1")
<MCU-S6NEK2N, MCU-S4NEK3N,MCU-S2NEK2N>
<MCU-S1NEK1N>
MCU
500 mm
(20") or more
400 mm (16") or more
700 mm (28")
or more
500 mm
(20") or more
980 mm(38.6")
469 mm (18.5")
<MCU-S12NEK1N, MCU-S8NEK1N>
