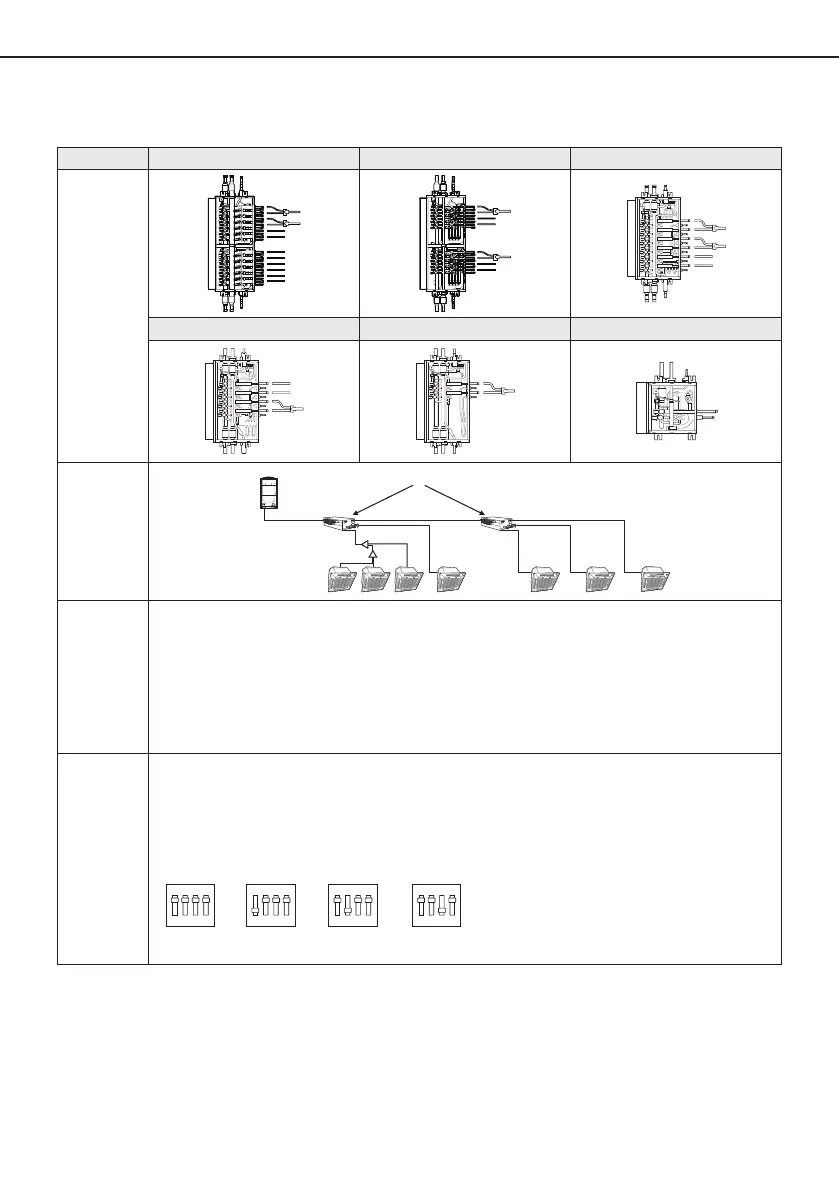

2. MCU specication
Model MCU-S12NEK1N MCU-S8NEK1N MCU-S6NEK2N
Example
installing
(Each port
connection)
MCU-S4NEK3N MCU-S2NEK2N MCU-S1NEK1N
Example
installing
(MCU series
connection)
MCU MCU
MCU series connection
Installing
indoor units
Indoor units under 16.0 kW (54 kBtu/h): Y-connector is not required
Indoor units 16.0 kW ~ 32.0 kW (54 ~ 108 kBtu/h): Y-connectors at the gas and liquid lines are required
If continuous cooling operation is required when outside temperature is below -5 °C (23°F), set outdoor option setting "Expand
operational temperature range for cooling operation (HR only)", and use Y-connector on the liquid and gas pipes for indoor
units 5.0 ~ 16 kW (18 ~ 54 kBtu/h).
When MCUs are connected in series, the maximum capacity of all indoor units in MCU series connection is the larger value of
MCU which are connected in series.
Example: MCU-S12NEK1N + MCU-S6NEK2N  85.0 kW (290MBH)
Using
Y-connector
[MCU-S6*, MCU-S4*, MCU-S2*, MCU-S1*]
When twinning 2 adjacent ports, Y-connectors can only be connected to the port combinations noted below.
Allowed Y-connector port combinations: A + B, C + D, E + F ports
Y-connector port combinations that are NOT allowed: B + C port, D + E port, any non-continuous port (example: A+C)
Set Dip Switch Settings when using Y-connector
1
ON
234 1
ON
234 1
ON
234 1
ON
234
S/W Option S/W Option S/W Option S/W Option
Default
Combination of
A+B port
Combination of
C+D port
Combination
of E+F port
