Samsung ML 1630 - Page 5

UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS

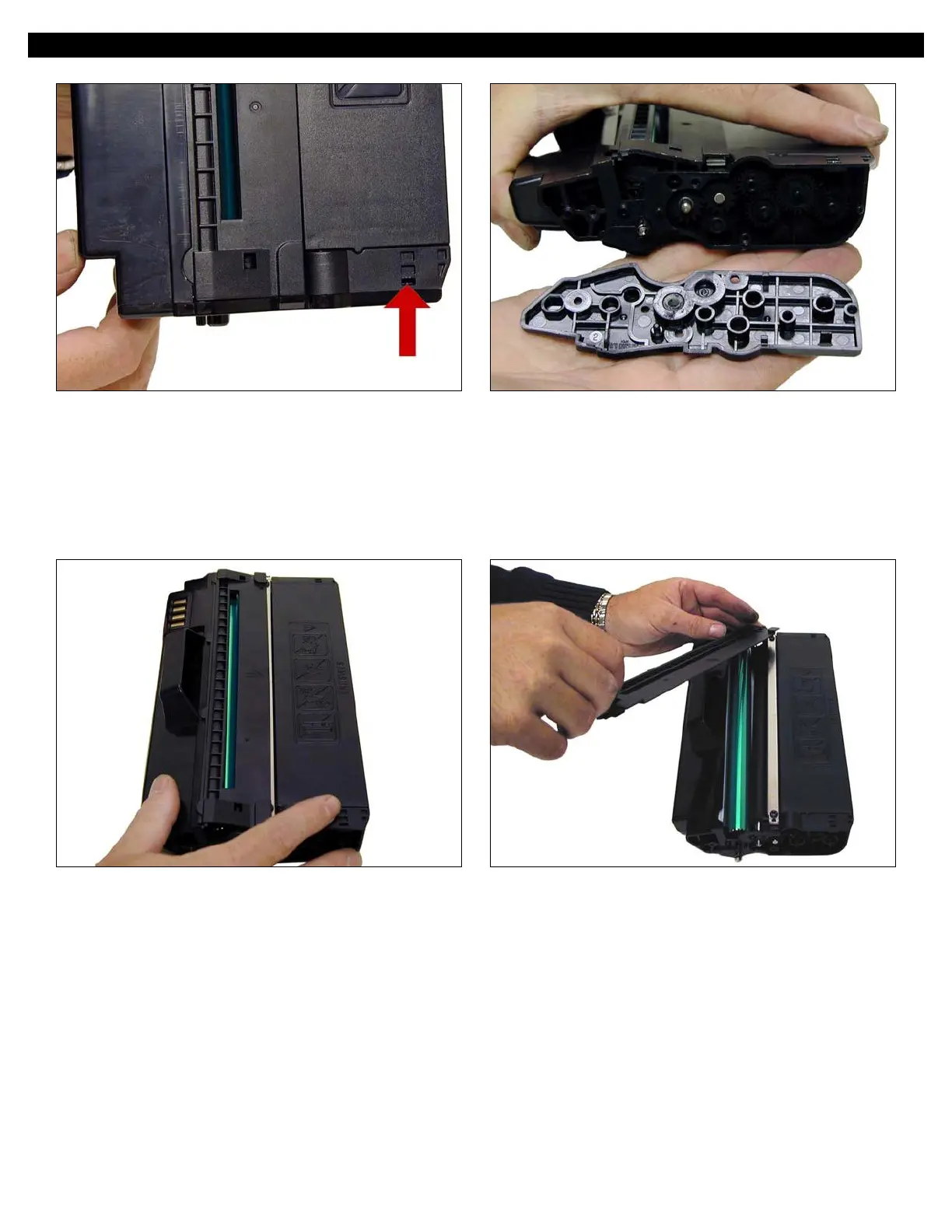

6. On the right side end cap, press in on the top tab and remove the end cap. The right side does not have a bottom tab, but it
fits on very tight and must be carefully pried off.
7. Separate the two halves slightly, and lift off the middle top cover/PCR assembly.
