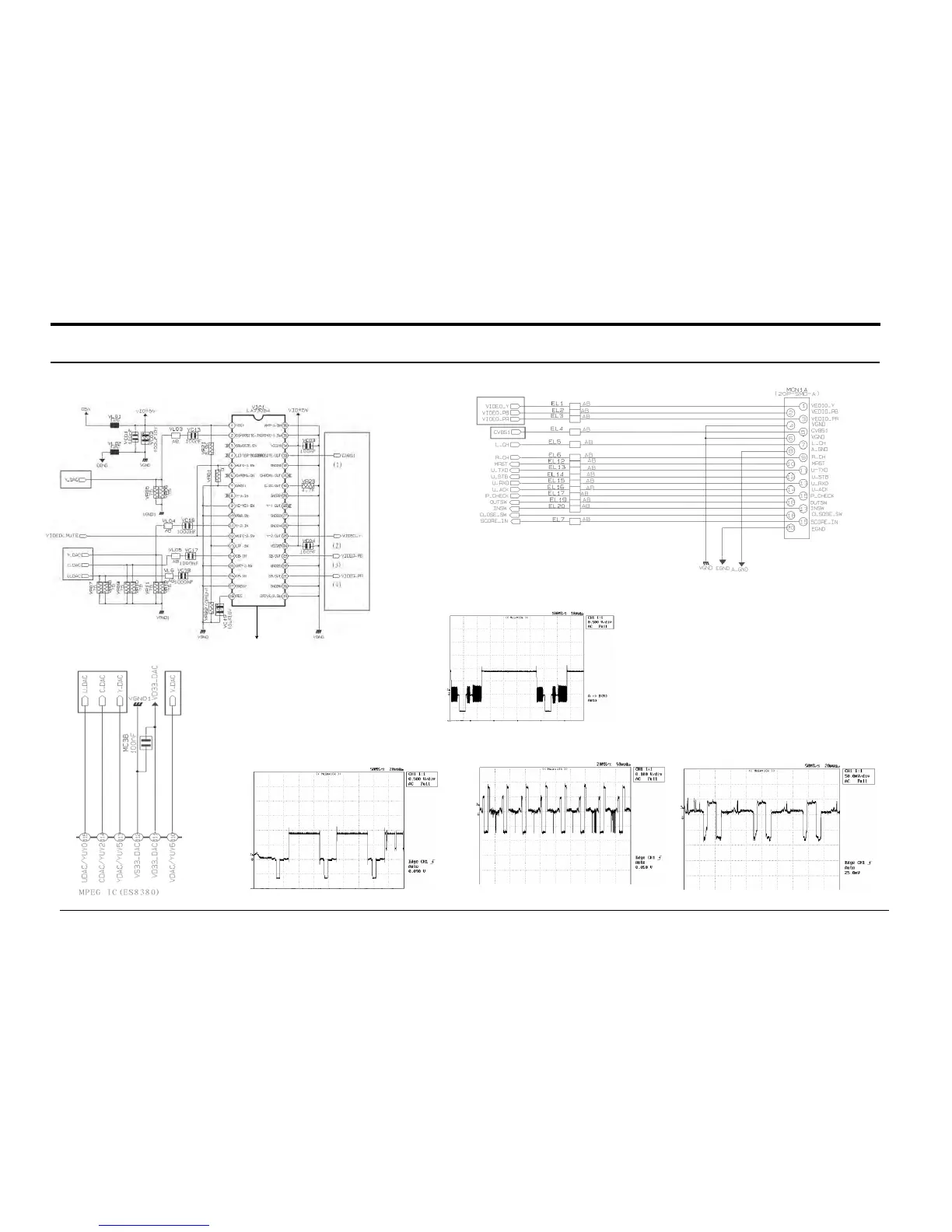

8-3. Video output (MPPEG PCB)
(VIDEO_Y,VIEDO_PB and VIDEO_PR is component video output;CVBS1 is composite video output.)
LA73054 is video driver IC
(1) CVBS1 waveform
(1) VIDEO_Y waveform
(1) VIDEO_PB waveform
(1) VIDEO_PR waveform
