5-8 Samsung Electronics
MH FSEA/NJ 1HXEA (cont.)

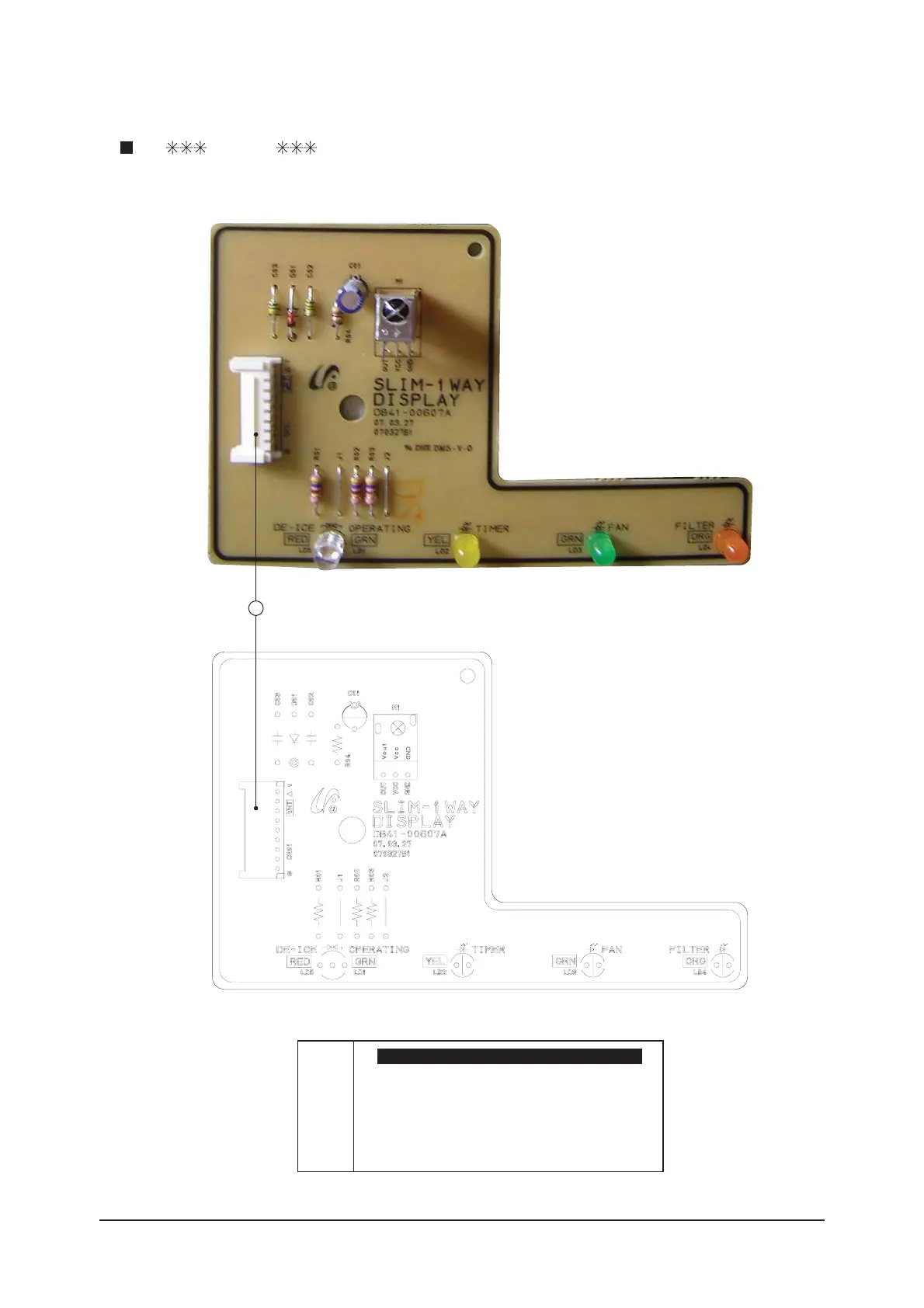

- Panel
1
1
#1~#5:Control Display LED
#6:Not used
#7:Receive signals from wireless remote controller
#8:GND
#9:VCC (DC5V)
CN01 : Connect the Main PBA of the Indoor Unit
DC
connection
Connector
