Samsung MULTI MH023FBEA - Page 126

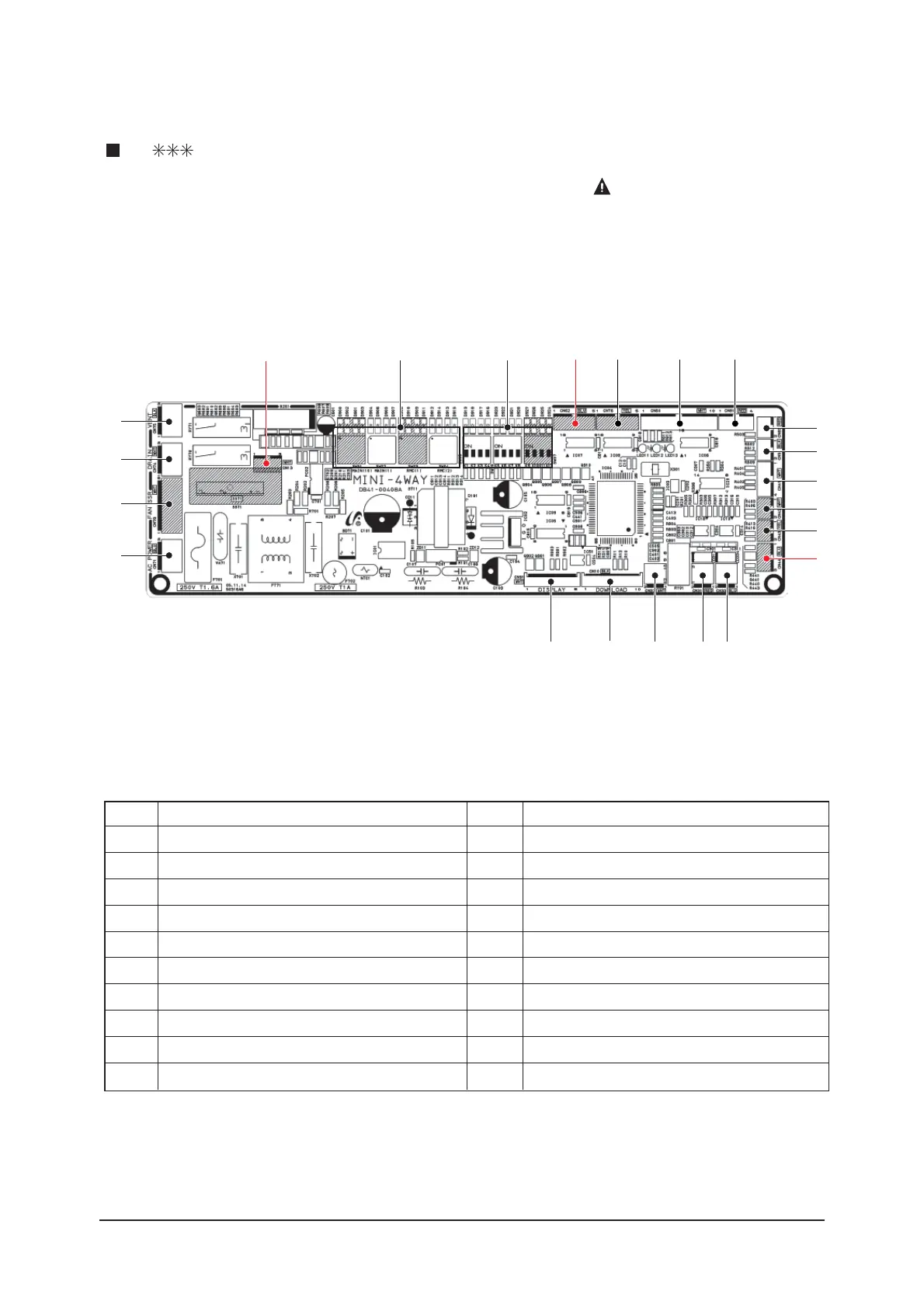

Samsung Electronics 5-9
1 Ventilator : YW396-03AV(BLK)
2 Drain Pump : YW396-03AV(WHT)
3 Indoor Fan(SSR Control) : YW396-05AV(WHT)
4 AC Power : YW396-03AV(BLU)
5 Indoor Address S/W(Main, RMC)
6 Option Switch
7 Electrical Expansion Valve(EEV) : B5B-XH-A(BLU)
8 Load Control Signal
9 Panel Louver(Stepping Motor) : SMW250-10(WHT)
10 External Control Out(Error, Compressor State) : SMW250-04(RED)
11 External Control In(On/Off Control Signal) : SMW250-02(RED)
12 Floating Switch : SMW250-02(BLK)
13 Room/Eva.-In Temp. Sensor : SMW250-04(WHT)
14 Eva.-Out Temp. Sensor : SMW250-02(WHT)
15 Heater Discharge Temp. Sensor : SMW250-02(YEL)
16 RPM Feedback : SMW250-03(BLU)
17 Communication2(Wired Remocon_F3/F4) : YW396-02V(BLU)
18 Communication1(Outdoor_F1/F2) : YW396-02V(RED)
19 DC12V Out(Wired Remocon Power) : YW396-02V(WHT)
20 Micom Program Download : SMW200-10(BLK)
21
Display PCB : SMW200-9(WHT)
22
SSR Fan Control : SMW250-03(WHT)
11
12
13
14
15
16
MH FMEA
21
20 19 18 17
The red number connecter is not used.
1
2
3
4
7 8 9 10
5 6
22
The red number connecter is not used.
