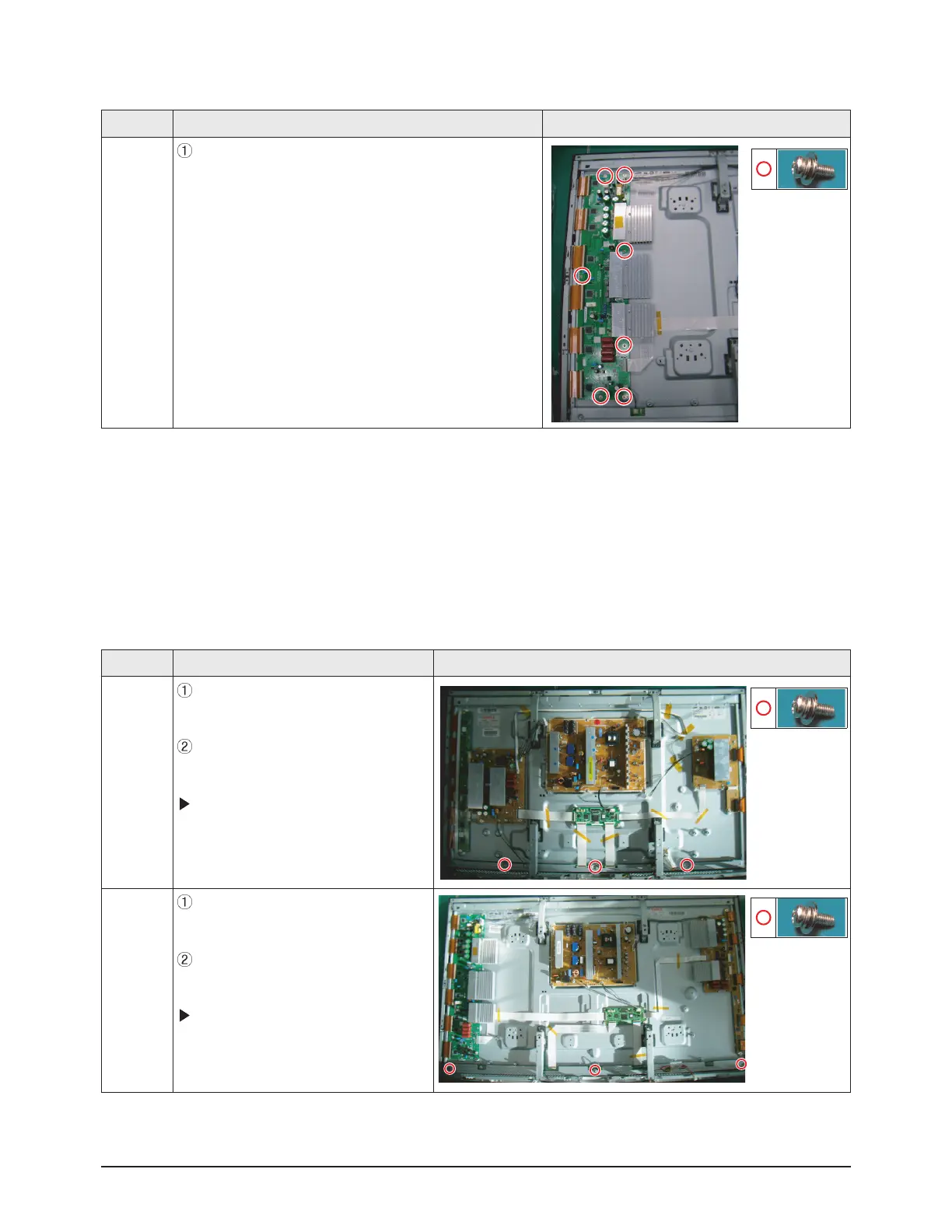

3-1-12 Separation of ASSY PDP MODULE P-ADDRESS BUFFER BOARD
Part Name Description Description Photo
42"
Buffer
board
shield
Remove 3 screws.
: PH,+,WWP,M3,L8,NI PLT
Remove the still bar.
Before removing the still bar, you should
lift up the panel a little.
50"
Buffer
board
shield
Remove 3 screws.
: PH,+,WWP,M3,L8,NI PLT
Remove the still bar.
Before removing the still bar, you should
lift up the panel a little.
Disassembly & Reassembly
3-8 Samsung Electronics
Part Name Description Description Photo
50"
Y-Scan
Board
Remove 7 screws.
: PH,+,WWP,M3,L8,NI PLT
