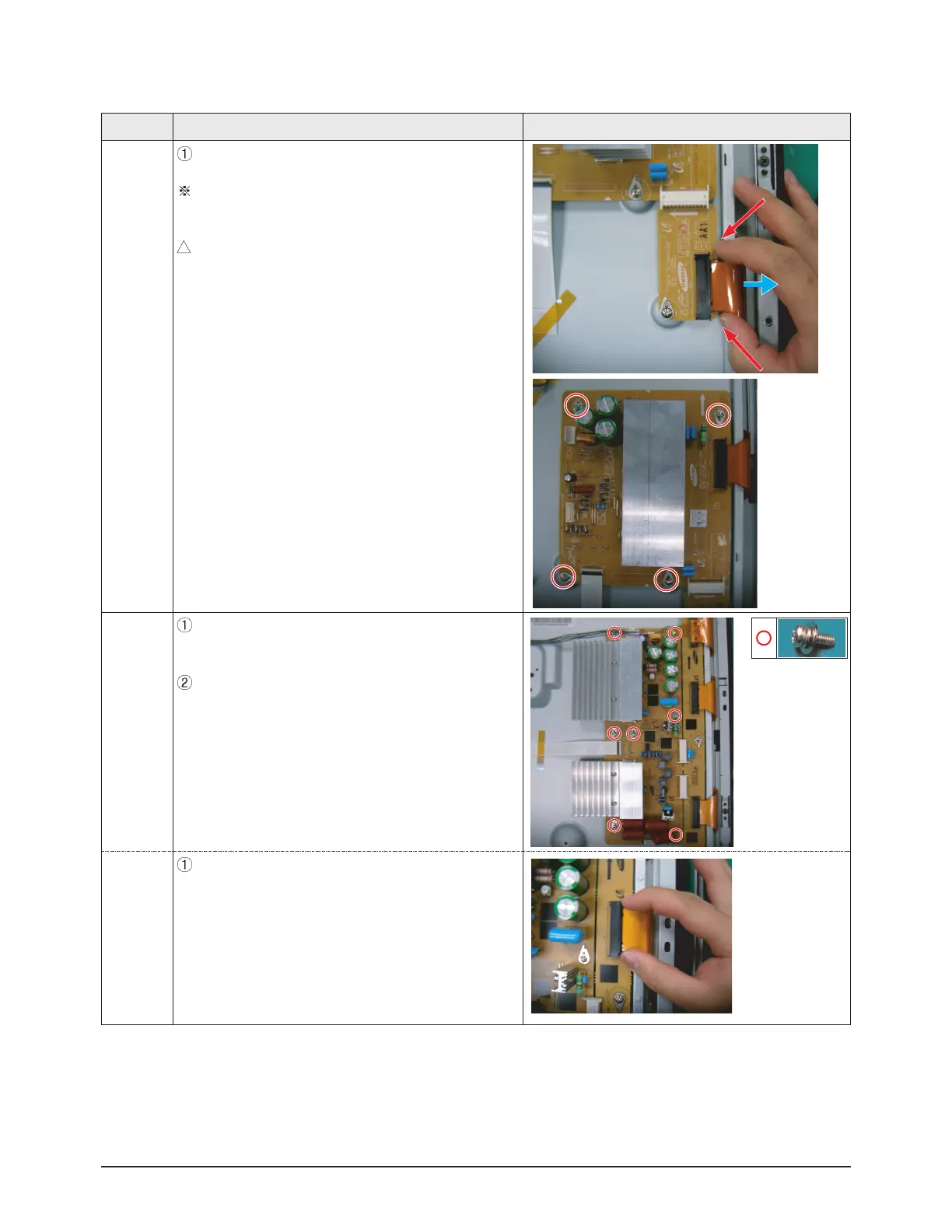

3-1-10 Separation of ASSY PDP MODULE P-X MAIN BOARD
Part Name Description Description Photo
42"
Flat able
Detach all Connectors from the X Main Board.
To separate the Flat Cable of the X-Board, press the
upper and the lower sides of the connector.
: Pinch the sides, but then push down in the ribbon, it
should slide out after that.
42"
X-Main
Board
Remove 7 screws.
: PH,+,WWP,M3,L8,NI PLT
Remove the X-Main Board.
50"
X-Main
Board
Remove the X-Main Board.
