Samsung PS51D490A1 - Component and AV Connections

English - 8

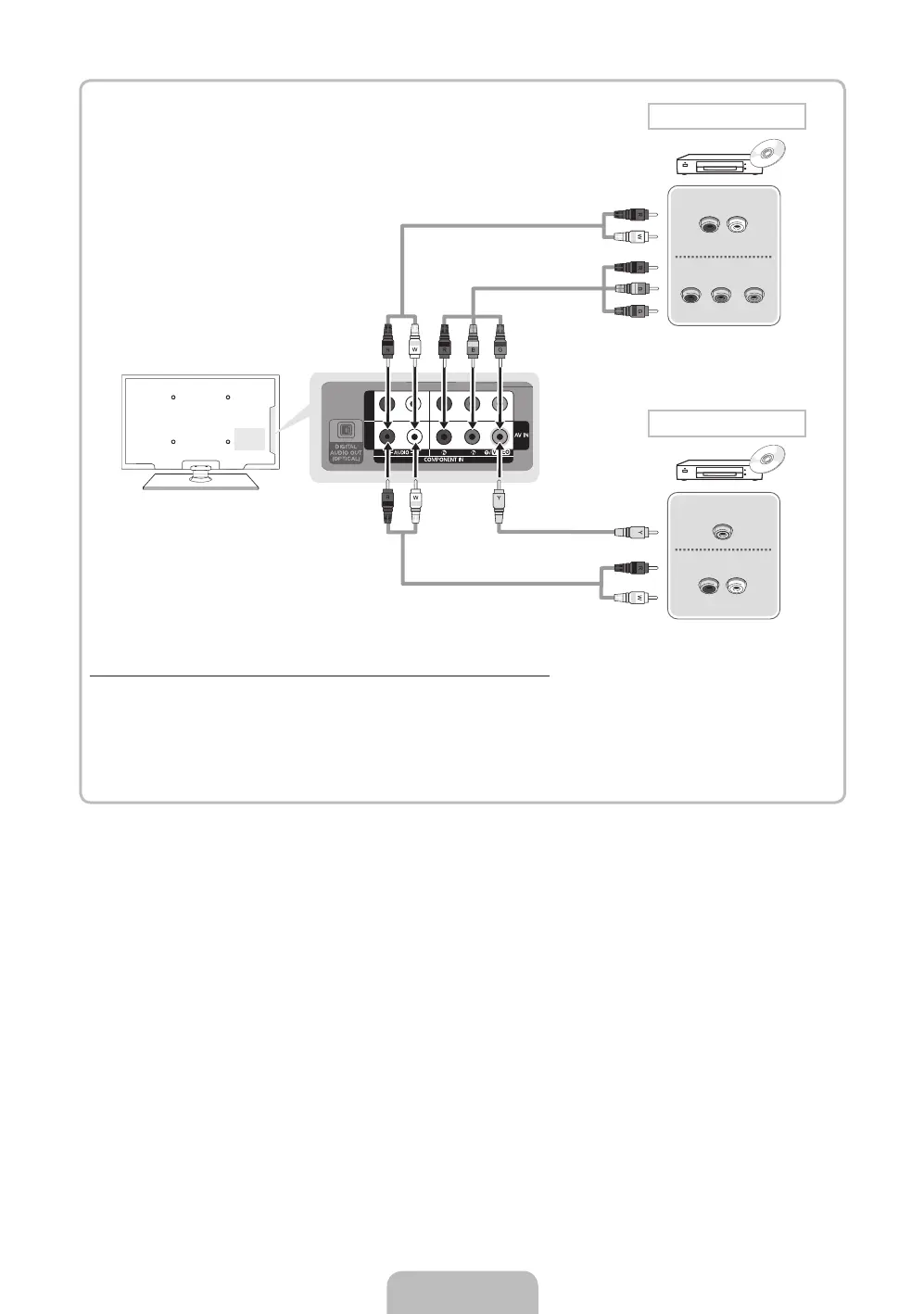

Using a Component (up to 1080p) or an Audio/Video (480i only)
✎ When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable
(yellow).
✎ To obtain the best picture quality, the Component connection is recommended over the A/V
connection.
1
2
AUDIO OUT
R-AUDIO-L
VIDEO OUT
AUDIO OUT
R-AUDIO-L
P
R
P
B
G
COMPONENT OUT
Component connection
AV connection
