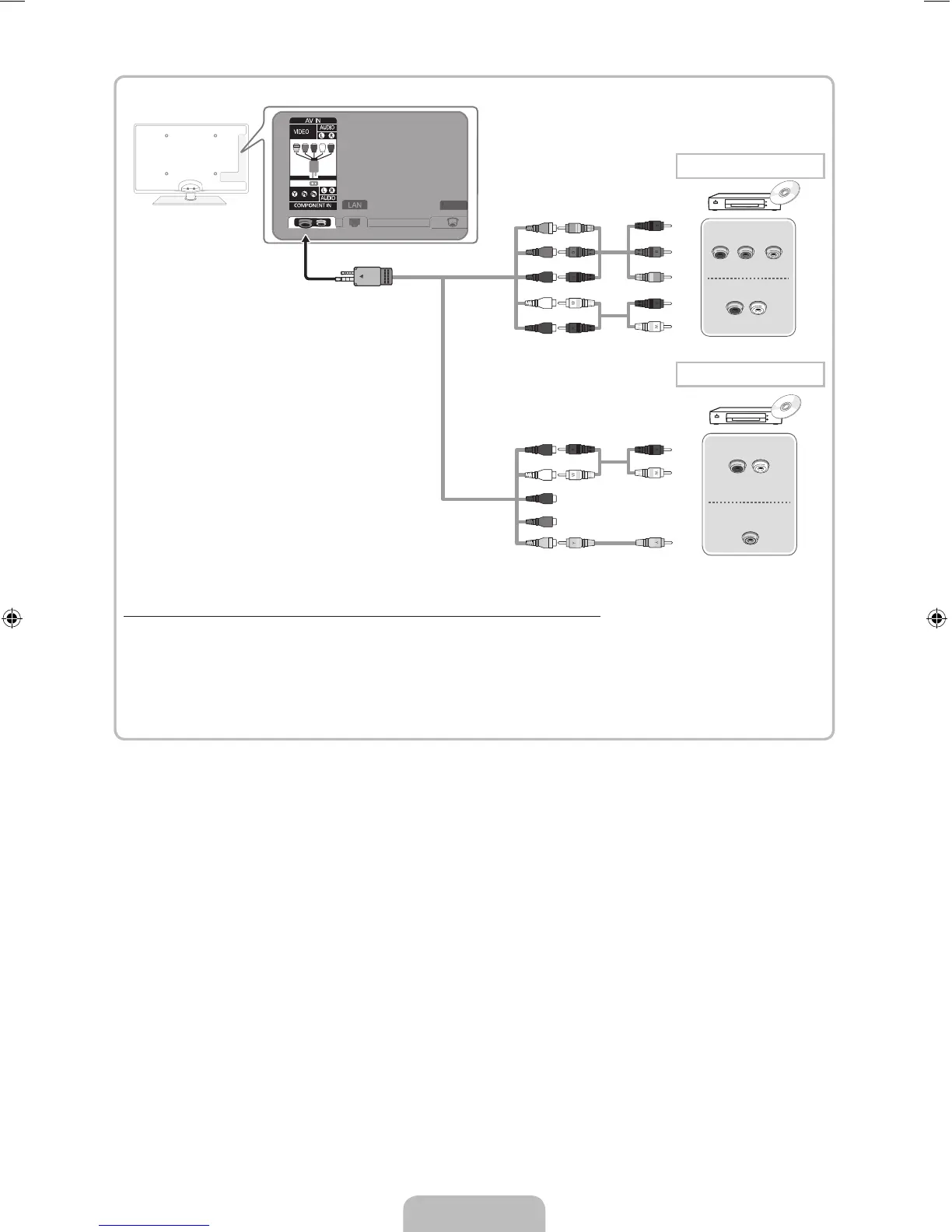

Using a Component (up to 1080p) or an Audio/Video (480i only) Cable
✎ When connecting to AV IN, the colour of the AV IN [VIDEO] jack (green) will not match the video cable
(yellow).
✎ To obtain the best picture quality, the Component connection is recommended over the A/V
connection.
ANT IN
ANT
IN
AUDIO OUT
R-AUDIO-L
VIDEO OUT
AUDIO OUT
R-AUDIO-L
P
R
P
B
Y
COMPONENT OUT
G
G
Component connection
AV connection
