Installation

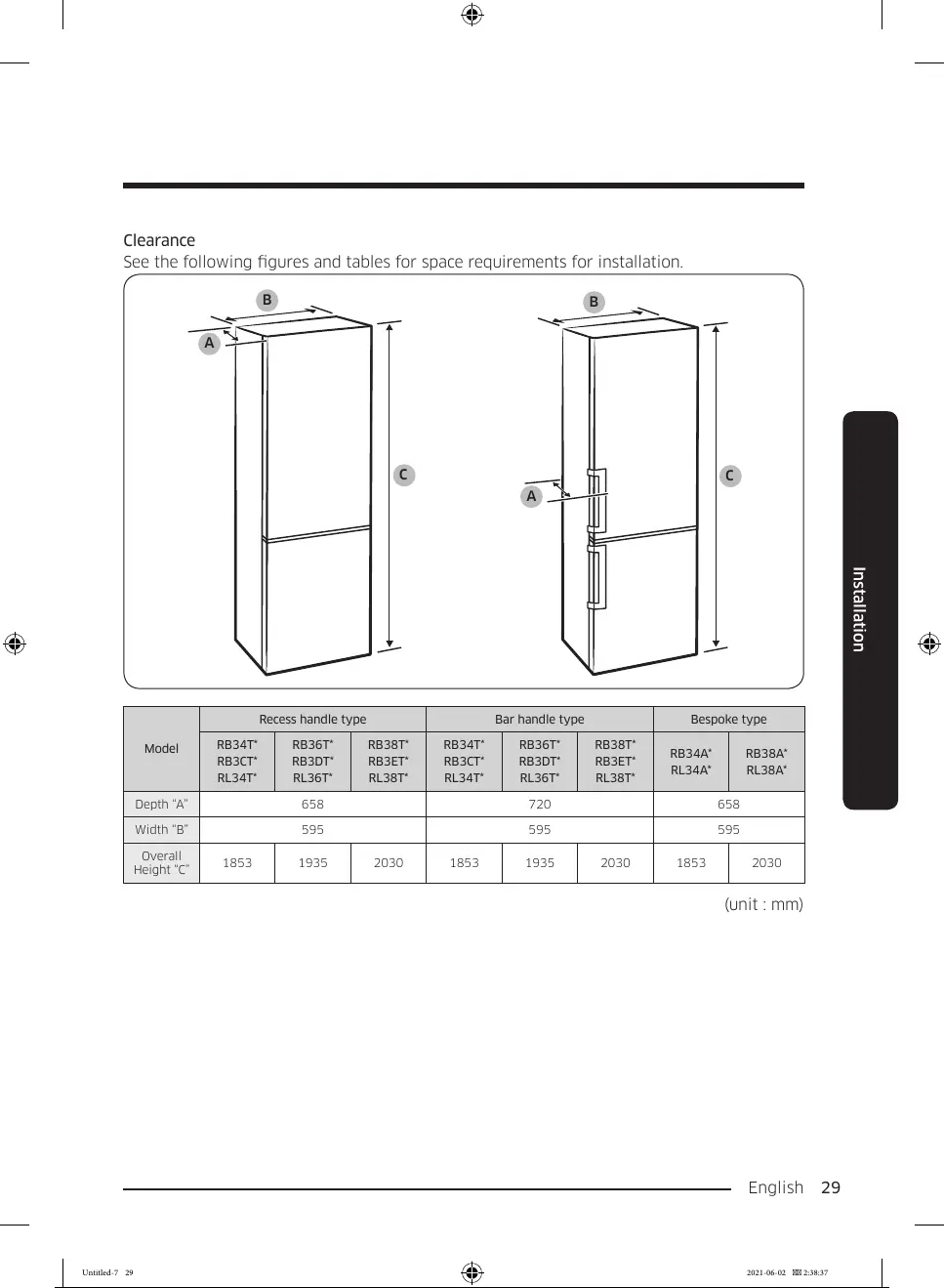

Clearance
See the following gures and tables for space requirements for installation.
B
C
A
A
B
C
Model
Recess handle type Bar handle type Bespoke type
RB34T*
RB3CT*
RL34T*
RB36T*
RB3DT*
RL36T*
RB38T*
RB3ET*
RL38T*
RB34T*
RB3CT*
RL34T*
RB36T*
RB3DT*
RL36T*
RB38T*
RB3ET*
RL38T*
RB34A*
RL34A*
RB38A*
RL38A*
Depth “A” 658 720 658
Width “B” 595 595 595
Overall
Height “C”
1853 1935 2030 1853 1935 2030 1853 2030
(unit : mm)
