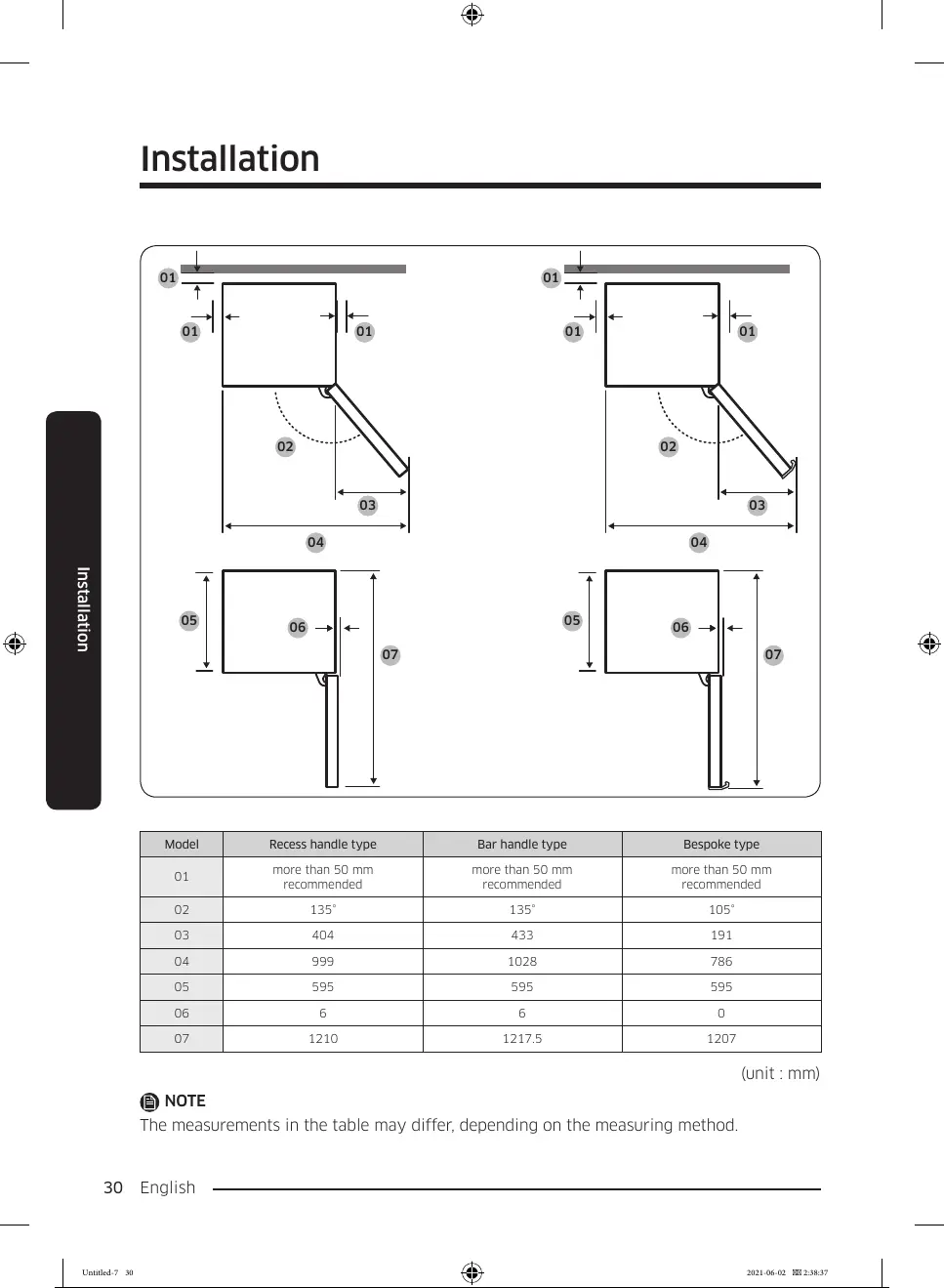

Installation
English30
Installation
02
04
05
06
07
03
02
04
05
06
07
03
01
01 01
01
01 01
Model Recess handle type Bar handle type Bespoke type
01
more than 50 mm
recommended
more than 50 mm
recommended
more than 50 mm
recommended
02 135° 135° 105°
03 404 433 191
04 999 1028 786
05 595 595 595
06 6 6 0
07 1210 1217.5 1207
(unit : mm)
NOTE
The measurements in the table may differ, depending on the measuring method.
