3. Slide the battery into the compartment (3) so that the
tabs on the end align with the slots at the bottom of the
phone, making sure the connectors align.
4. Gently press down to secure the battery (4).
5. Replace the battery cover by sliding it back into place
and snapping the edges securely at all four corners.
Removing the Battery
1. Place your fingernail in the opening on the cover release
latch and firmly “pop” the cover off the device (similar
to a soda can).
2. Place your finger into the battery groove.
3. Grip the battery at the top end (5) and lift it up and out of
the battery compartment (6).

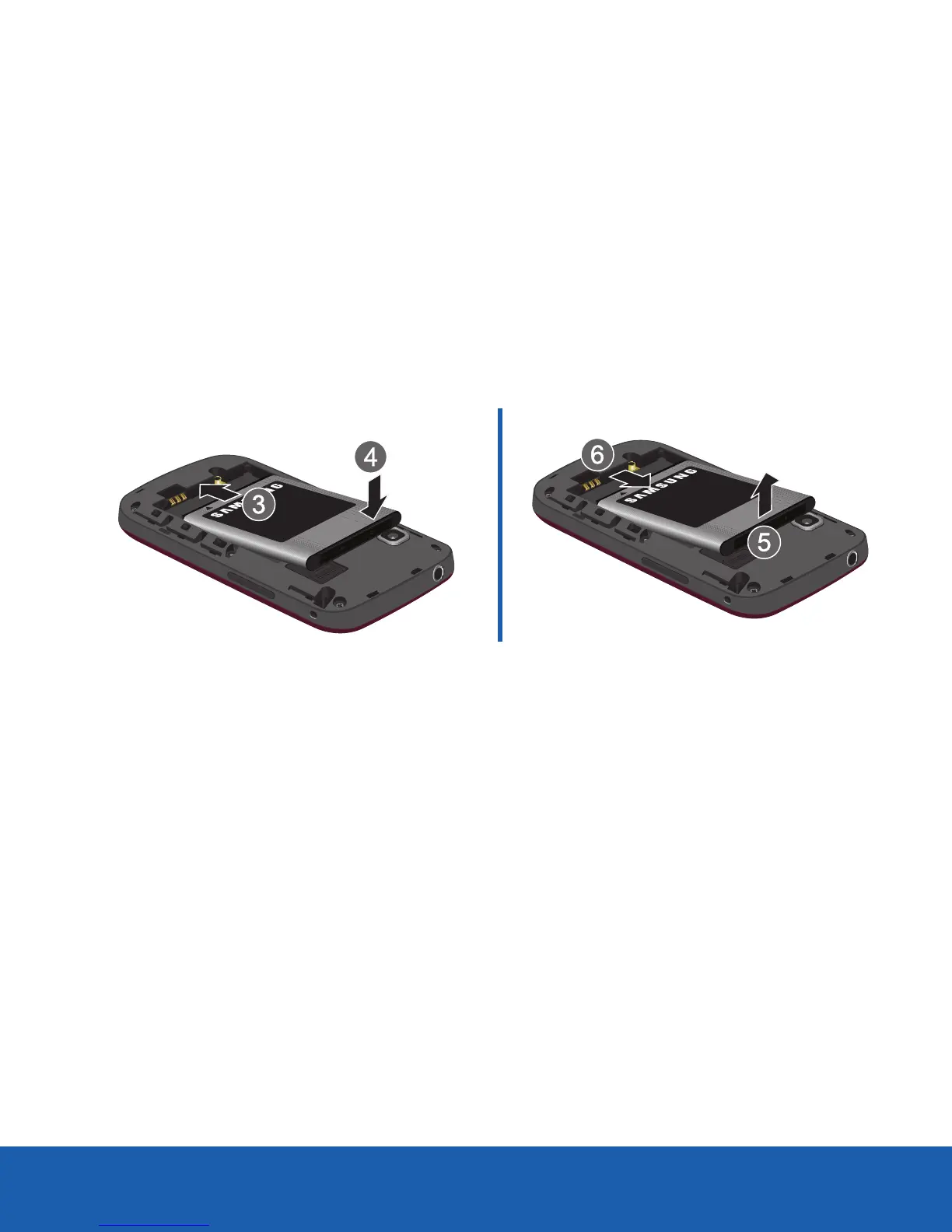

Battery Insertion Battery Removal
7
YOUR DEVICE
