_11
setting up
INSTALLING THE WATER
DISPENSER LINE
A water dispenser with a fi lter is one of the helpful
features on your new refrigerator. To help promote
better health, the water fi lter removes unwanted
particles from your water. However, it does not
sterilize or destroy microorganisms. You may need
to purchase a water purifying system to do that.
The water line also connects to the ice maker.
For the ice maker to operate properly, water pressure
of 20~125psi ( 138~862kPa) is
required.
If the refrigerator is installed in an area with low
water pressure (below 20psi), you can install
a booster pump to compensate for the low
pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator
is properly fi lled. To do this, press the water
dispenser lever until the water runs from the water
outlet.
Water line installation kits are available at
extra cost from your dealer.
We recommend using a water line
installation kit that contains copper tubing
and ¼” compression nut.

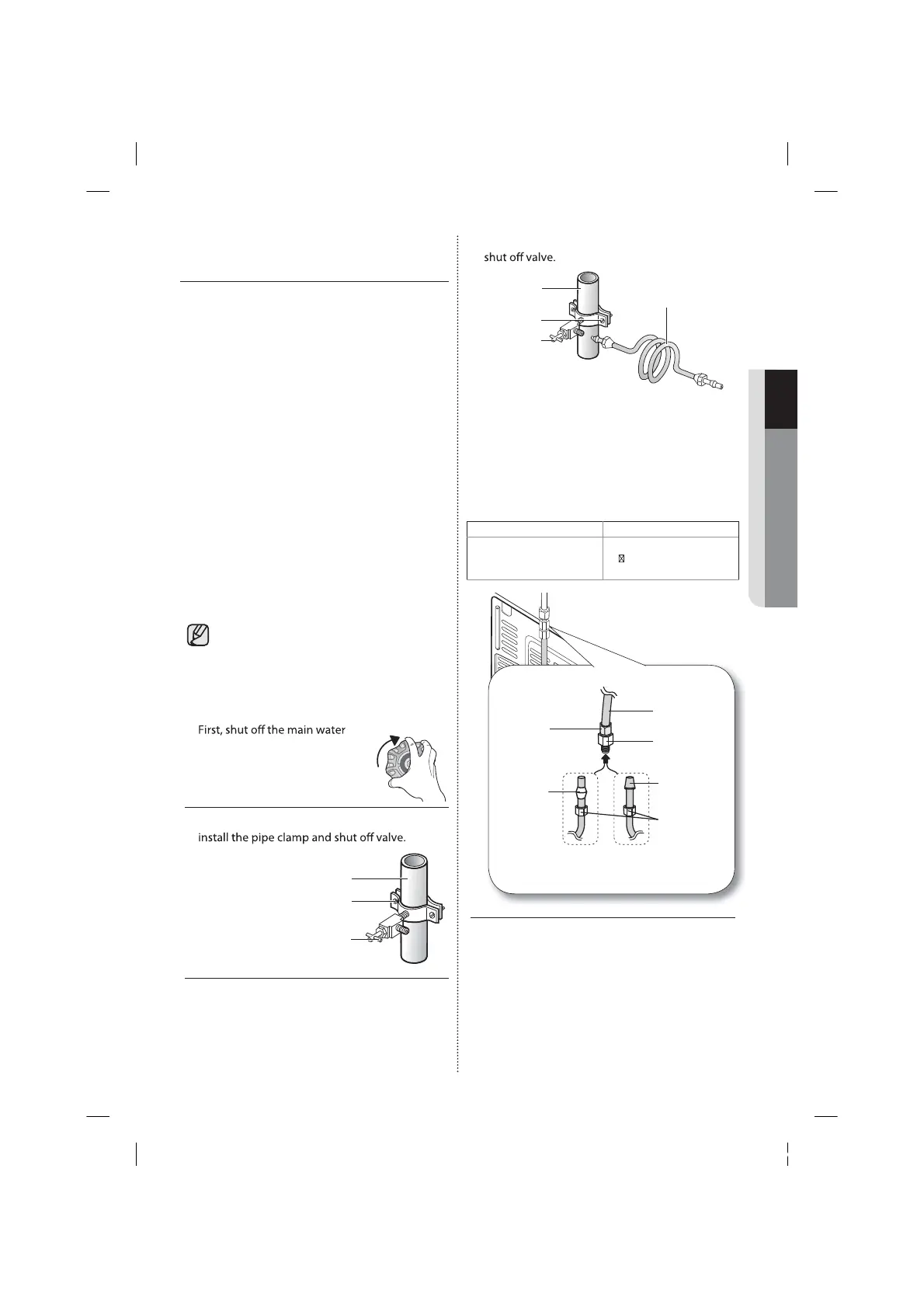

Connecting to the water supply line
1.
supply.
Locate the nearest cold water drinking line and 2.
Connect the water line installation kit to the 3.
Connecting the water supply line to
the refrigerator.
There are several items that you need to purchase
to complete this connection.
You may fi nd these items sold as a kit at your local
hardware store.
Use Copper Tubing Use Plastic Tubing
¼” copper tubingt
¼” compression nut (1pc)t
Ferrule (2pc)t
¼” plastic tubing t
Molded end(Bulb)
¼” compression nut (1pc)t
Connect the household water line to the 1.
assembled compression fi tting.
If you are using copper tubing, slip the -
compression nut ( B ) (not supplied) and
ferrule (not supplied) on the copper tubing (not
supplied) as shown.
If you are using plastic tubing ( - B ) , insert the
molded end (Bulb) of the plastic tubing ( B )
into the compression fi tting.
Pipe clamp
Cold water line
Shut off valve
Compression
Nut (1/4”)
(Assembled)
Ferrule
(Not supplied)
Plastic Tubing
(Assembled)
Compression
Fitting
(Assembled)
Molded
end(Bulb)
Compression
nut (B) (1/4”)
(Not supplied)
or
Copper tubing
(Not supplied)
Plastic tubing (B)
(Not supplied)
Household water supply line
Refrigerator
Shut off valve
Pipe clamp
Cold water line
Water line installation kit
